ModelBS62-4A/28 Four-Stroke Rammer

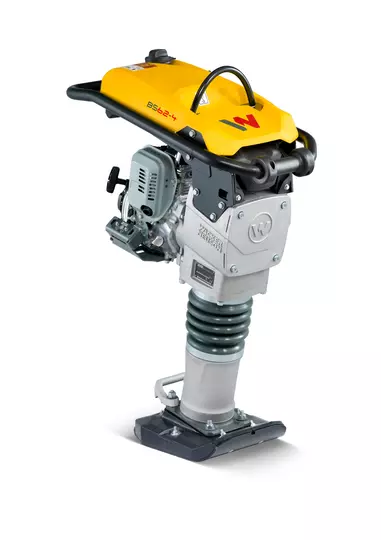

BS62-4A/28 Four-Stroke Rammer
Four-stroke rammer with a 280 mm shoe for soil compaction; Honda GXR120 engine.
Model / part number: 5100068373
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
21 specifications · 1 configurations or components
Technical Data21 details
BS62-4A/2821 specifications
- Engine
- Honda GXR120RT-KR-W1-SD
- Engine displacement
- 121 cm³
- Fuel consumption
- 1 l/h
- Fuel tank capacity
- 3 l
- Effective power
- 2.3 kW at 3,600 rpm
- Operating power
- 2.7 kW at 3,950 rpm
- Fuel
- Gasoline
- Percussion rate
- 689 /min
- Compaction capacity
- 202 m²/h
- Forward speed
- 12 m/min
- Impact force
- 17 kN
- Length
- 662 mm
- Ramming shoe length
- 340 mm
- Width
- 347 mm
- Ramming shoe width
- 280 mm
- Height
- 920 mm
- Operating weight
- 64 kg
- Stroke
- 68 mm
- Hand arm vibration
- 10 m/s²
- Emissions standard
- EN 500-4
- Item number
- 5100068373
