Wacker Neuson
ModelBS50-2 11-inch Classic Rammer

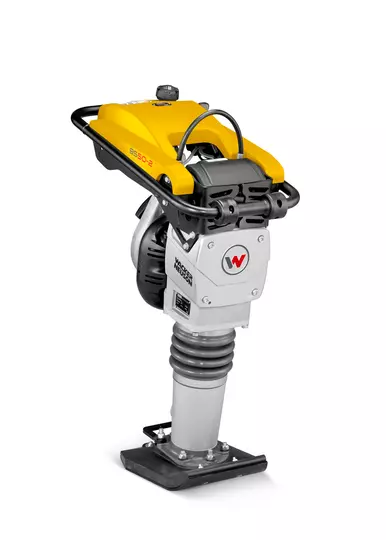

BS50-2 11-inch Classic Rammer
2-stroke rammer with a 280 mm shoe, listed without an operating-hour meter.
Model / part number: 5100068309
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
16 specifications · 1 configurations or components
Technical Data16 details
BS50-2 11-inch16 specifications
- Percussion rate
- 687 /min
- Compaction capacity
- 159 m²/h
- Forward speed
- 9.5 m/min
- Impact force
- 16 kN
- Length
- 673 mm
- Ramming shoe length
- 340 mm
- Width
- 343 mm
- Ramming shoe width
- 280 mm
- Height
- 940 mm
- Operating weight
- 59 kg
- Stroke
- 64 mm
- Fuel consumption
- 0.9 l/h
- Operating power
- 1.7 kW
- Hand arm vibration
- 11.1 m/s²
- Emissions standard
- EN 500-4
- Item number
- 5100068309
