ModelDPU4045Yeh LRC Reversible Vibratory Plate

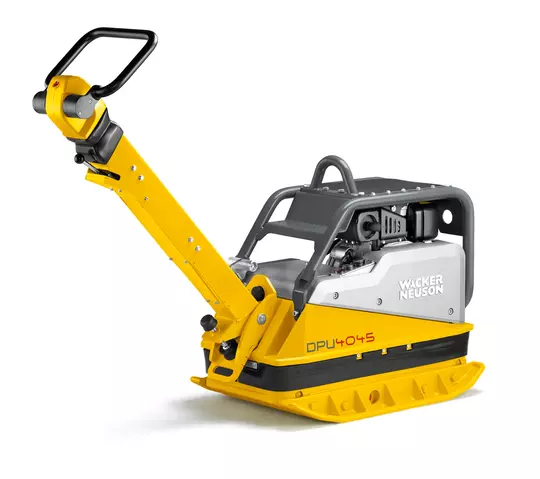

DPU4045Yeh LRC Reversible Vibratory Plate
Reversible diesel vibratory plate with electric starter and operating-hour meter for heavy-duty compaction.
Model / part number: 5100063118
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
15 specifications · 1 configurations or components
Technical Data15 details
DPU4045Yeh LRC15 specifications
- Engine
- Yanmar L70N E-Start
- Engine displacement
- 320 cm³
- Fuel consumption
- 1.4 l/h
- Fuel tank capacity
- 3.3 l
- Effective power
- 4.5 kW at 3,000 rpm
- Operating power
- 4.3 kW at 3,000 rpm
- Fuel
- Diesel EN 590
- Centrifugal force
- 40 kN
- Compaction capacity
- 870 m²/h
- Forward speed
- 24 m/min
- Gradeability
- 36.4%
- Baseplate
- 900 × 604 mm
- Height
- 1,308 mm
- Operating weight
- 385 kg
- Item number
- 5100063118
