Wacker Neuson

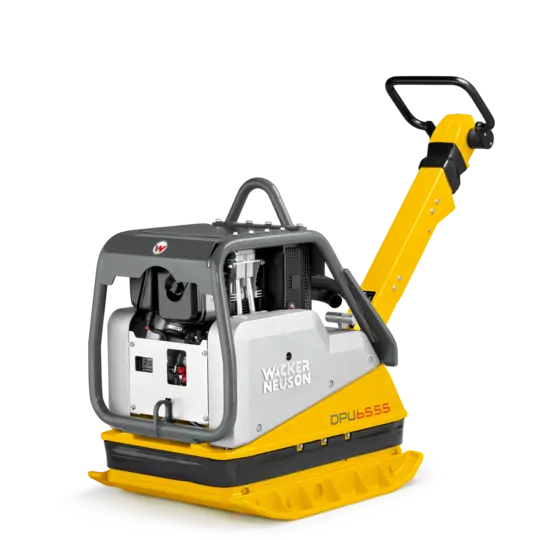

ModelDPU 6555H Reversible Vibratory Plate
DPU 6555H Reversible Vibratory Plate
Heavy-duty reversible diesel vibratory plate for demanding soil, asphalt and paving-stone compaction.
Model / part number: 5100009651
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
17 specifications · 1 configurations or components
Technical Data17 details
DPU 6555H17 specifications
- Engine
- Hatz 1D81S-359A
- Engine displacement
- 667 cm³
- Fuel consumption
- 1.9 l/h
- Fuel tank capacity
- 6 l
- Effective power
- 9.6 kW at 2,800 rpm
- Operating power
- 6.8 kW at 3,010 rpm
- Fuel
- Diesel EN 590
- Centrifugal force
- 65 kN
- Compaction capacity
- 1,200 m²/h
- Forward speed
- 28 m/min
- Gradeability
- 46.6%
- Baseplate
- 900 × 710 mm
- Height
- 1,308 mm
- Operating weight
- 487 kg
- Hand arm vibration
- 2.5 m/s²
- Emissions standard
- EN 500-4
- Item number
- 5100009651
