Wacker Neuson
ModelDPU 3050H Reversible Vibratory Plate

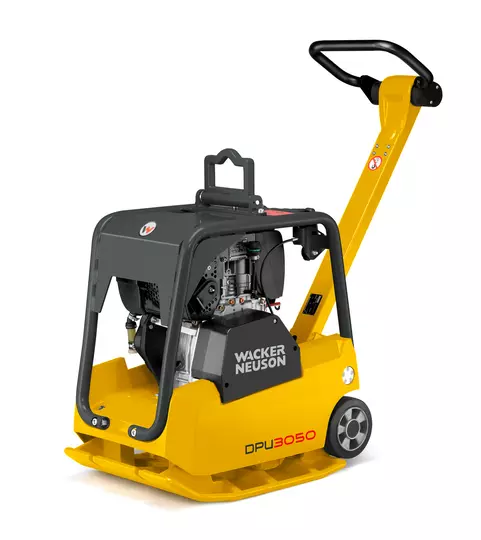

DPU 3050H Reversible Vibratory Plate
Reversible diesel-powered vibratory plate for soil, asphalt and paving-stone compaction.
Model / part number: 5000610039
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
15 specifications · 1 configurations or components
Technical Data15 details
DPU 3050H15 specifications
- Engine
- Hatz 1B30-2-310A
- Engine displacement
- 347 cm³
- Fuel consumption
- 0.6 l/h
- Fuel tank capacity
- 5 l
- Fuel
- Diesel EN 590
- Centrifugal force
- 30 kN
- Compaction capacity
- 570 m²/h
- Forward speed
- 19 m/min
- Gradeability
- 46.6%
- Baseplate
- 703 × 500 mm
- Height
- 1,101 mm
- Operating weight
- 181 kg
- Hand arm vibration
- 3.6 m/s²
- Emissions standard
- EN 500-4
- Item number
- 5000610039
