Wacker Neuson
ModelBPU 3050A Reversible Vibratory Plate

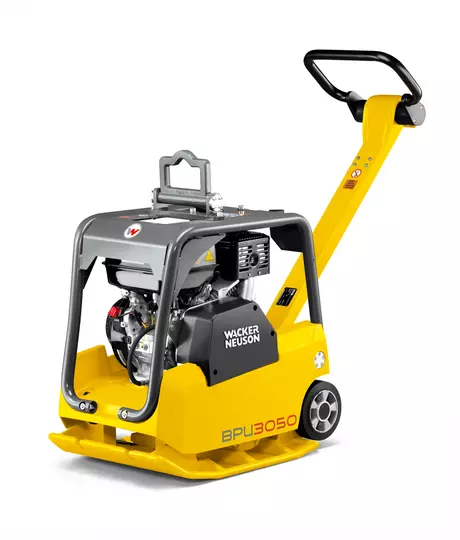

BPU 3050A Reversible Vibratory Plate
Reversible gasoline-powered vibratory plate for soil, asphalt and paving-stone compaction.
Model / part number: 5000008763
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
17 specifications · 1 configurations or components
Technical Data17 details
BPU 3050A17 specifications
- Engine
- Honda GX270-UT2X-QA-4-SD
- Engine displacement
- 270 cm³
- Fuel consumption
- 1.6 l/h
- Fuel tank capacity
- 5.3 l
- Effective power
- 5.1 kW at 3,600 rpm
- Operating power
- 5.1 kW at 3,600 rpm
- Fuel
- Gasoline
- Centrifugal force
- 30 kN
- Compaction capacity
- 570 m²/h
- Forward speed
- 19 m/min
- Gradeability
- 36.4%
- Baseplate
- 703 × 500 mm
- Height
- 1,101 mm
- Operating weight
- 166 kg
- Hand arm vibration
- 2.8 m/s²
- Emissions standard
- EN 500-4
- Item number
- 5000008763
