Wacker Neuson
Telescopic wheel loader 8145T
Wheel Loaders

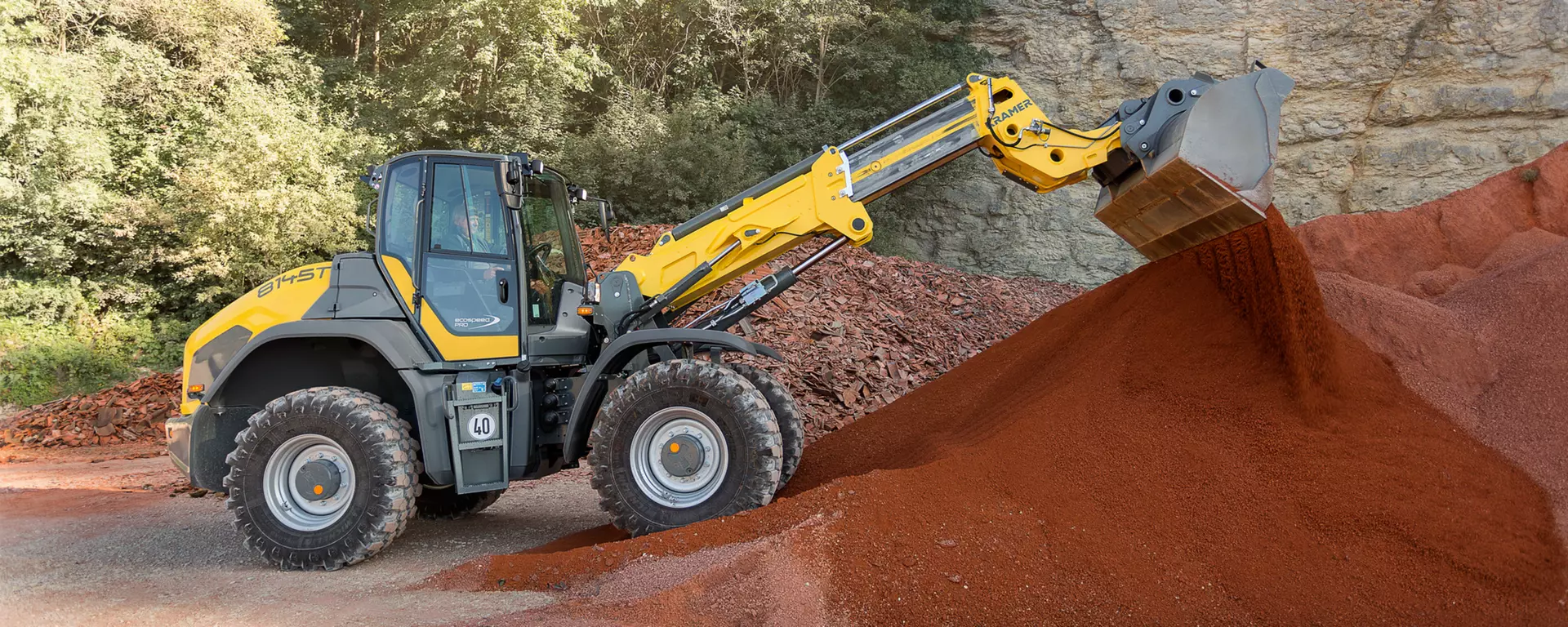

In the 9 to 11 ton class, the 8145T can handle material on large construction sites and load or unload heavy transport chains and carriers in industry and recycling. Its compact box-design loading system keeps attachments in view.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 8145T
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data79 specifications
8145T23 specifications
- Engine manufacturer
- Deutz
- Drive output
- 100 kW
- Drive output (Standard engine data)
- 136 PS
- Cylinder capacity
- 3,621 cm³
- Exhaust standard level
- V
- Exhaust aftertreatment
- DOC / DPF / SCR
- Bucket capacity (standard bucket)
- 1.45 m³
- Payload (max.)
- 3,900 kg
- Operating weight
- 11,170 kg
- Payload (S=1.25)
- 3,900 kg
- Tipping load (standard bucket)
- 5,500 kg
- Tipping load (pallet fork)
- 4,870 kg
- Tank capacity for fuel
- 140 l
- Tank capacity for hydraulic oil
- 125 l
- Travel speed Standard
- 0-20 km/h
- Travel speed Option 1
- 0-30 km/h
- Travel speed Option 2
- 0-40 km/h
- Work hydraulics discharge volume (max.)
- 150 l/min
- Kinematics type
- Z
- Steering angle max.
- 40 degree
- Guaranteed sound power level Lw A (cabin)
- 102 dB(A)
- Measured sound power level Lw A
- 100.7 dB(A)
- Sound pressure level at the operator's ear
- 70 dB(A)
Deutz TCD4.1 C5VI115A32 specifications
- Cylinder
- 4
- Cylinder capacity
- 4,038 cm³
- Power rating max.
- 115 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD4.1 C5VI115A
- Alternator
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A)
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A)
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A)
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A)
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A)
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A)
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A)
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A)
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A) 17
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A) 18
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A) 19
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A) 20
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A) 21
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A) 22
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A) 23
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A) 24
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A) 25
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A) 26
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A) 27
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A) 28
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A) 29
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A) 30
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A) 31
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A) 32
- 12V DC - 150A
Deutz TCD3.6 C3CI1008 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C3CI100
- Alternator
- 12V DC - 120A
Deutz TCD3.6 C5VI100D8 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C5VI100D
- Alternator
- 12V DC - 120A
Deutz TCD3.6 C5VI100DU8 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C5VI100DU
- Alternator
- 12V DC - 120A
