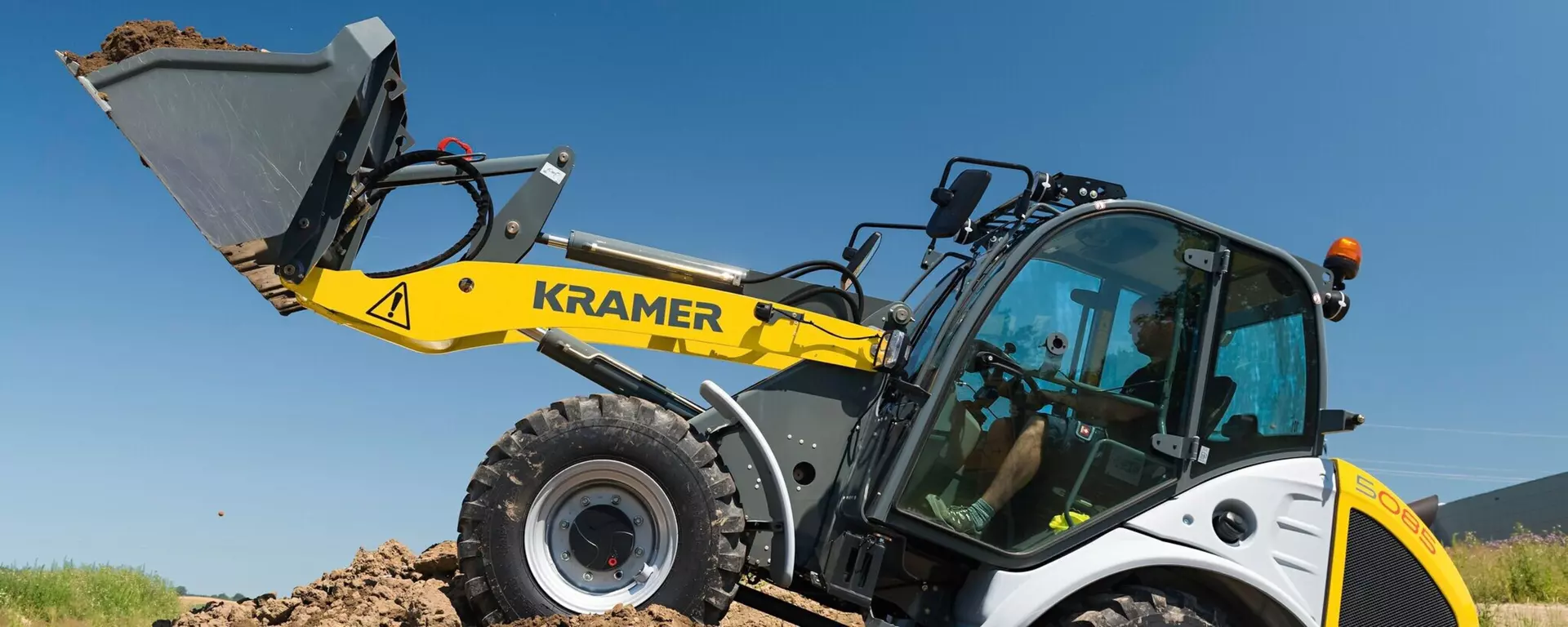

Wacker Neuson
5085 (353-22)
Wheel Loaders
The 5085 5 Series is designed for straightforward operation and functionality. It combines dynamic all-wheel drive, high payload, and comparatively low operating weight. Its clearly laid out cab supports all-round visibility, and the compact dimensions help it maneuver in tight spaces.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 5085 (353-22)
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data36 specifications
5085 (353-22)12 specifications
- Travel speed
- 20.0 km/h
- Travel speed (Option)
- 30.0 km/h
- Length
- 4,640.0 mm
- Width
- 1,950.0 mm
- Height
- 2,480.0 mm
- Operating weight
- 4,610.0 kg
- Payload
- 2,250.0 kg
- Tipping load
- 3,700.0 kg
- Bucket capacity heaped
- 0.85 m3
- Operating pressure hydraulics
- 240.0 bar
- Flow rate max.
- 68.0 l/min
- Turning radius
- 2,840.0 mm
Kohler KDI2504TCR S516 specifications
- Cylinder
- 4
- Cylinder capacity
- 2,482 cm³
- Power rating max.
- 55.4 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Kohler
- Engine Designation
- KDI2504TCR S5
- Alternator
- 12V DC - 100A
- Cylinder (Kohler KDI2504 TCR S5)
- 4
- Cylinder capacity (Kohler KDI2504 TCR S5)
- 2,482 cm³
- Power rating max. (Kohler KDI2504 TCR S5)
- 55.4 kW
- Engine speed (Power max.) (Kohler KDI2504 TCR S5)
- 2,300 1/min
- Engine type (Kohler KDI2504 TCR S5)
- Diesel engine
- Engine Manufacturer (Kohler KDI2504 TCR S5)
- Kohler
- Engine Designation (Kohler KDI2504 TCR S5)
- KDI2504TCR S5
- Alternator (Kohler KDI2504 TCR S5)
- 12V DC - 100A
Kohler KDI2504TCR/D23A8 specifications
- Cylinder
- 4
- Cylinder capacity
- 2,482 cm³
- Power rating max.
- 55.4 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Kohler
- Engine Designation
- KDI2504TCR/D23A
- Alternator
- 12V DC - 100A
