Wacker Neuson

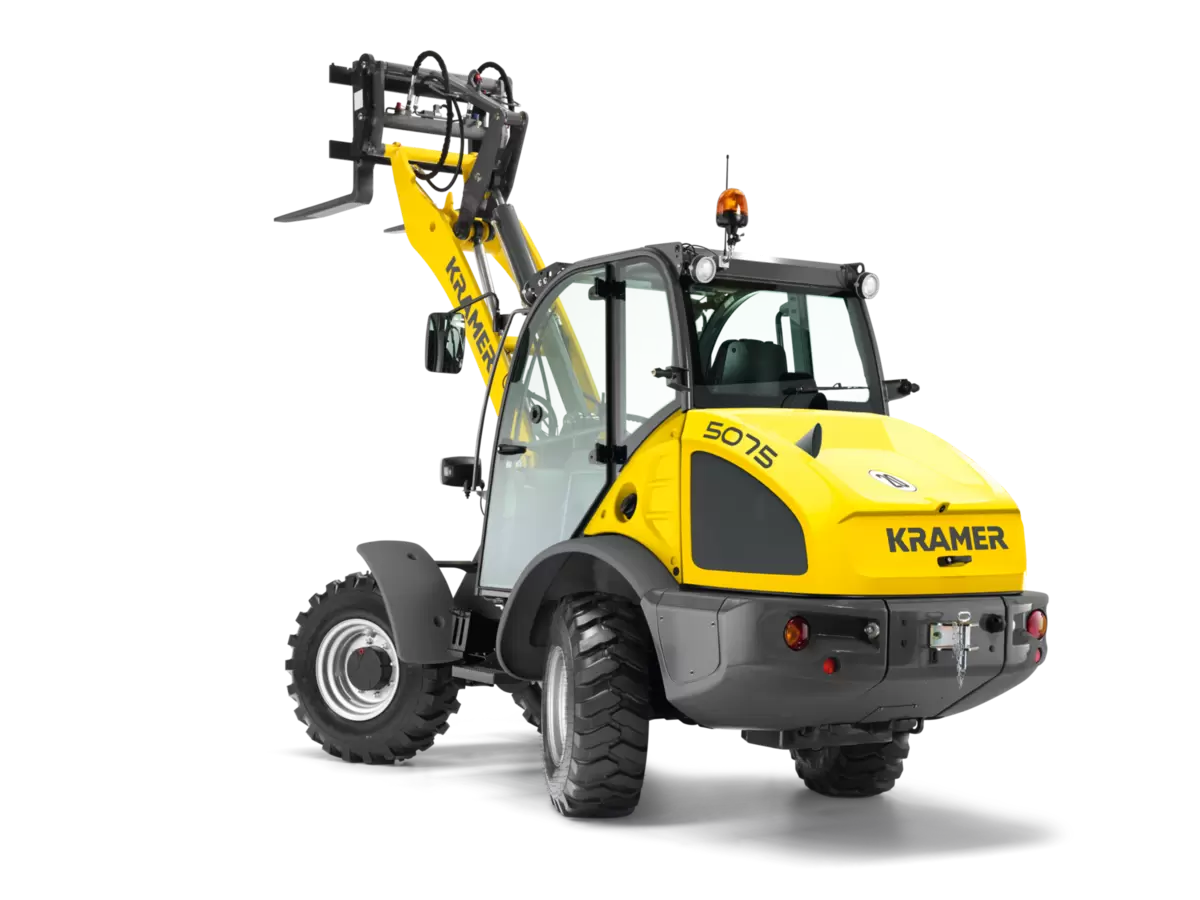

Wheel loader 5075
Wheel Loaders
The powerful Kramer ‘5075’ is a compact and manoeuvrable wheel loader of the 5 series, which was formerly known as the ‘750’. Click here for more information.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 5075
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data49 specifications
507525 specifications
- Engine manufacturer
- Rehlko
- Drive output
- 55.4 kW
- Drive output (Standard engine data)
- 74 PS
- Cylinder capacity
- 2,482 cm³
- Exhaust standard level
- V
- Exhaust aftertreatment
- DOC / DPF
- Bucket capacity (standard bucket)
- 0.75 m³
- Payload (max.)
- 1,350 kg
- Operating weight
- 4,200 - 4,290 kg
- Payload (S=1.25)
- 2,000 kg
- Lift capacity (max.)
- 33.8 kN
- Tipping load (standard bucket)
- 3,400 kg
- Tipping load (pallet fork)
- 2,500 kg
- Tank capacity for fuel
- 75 l
- Tank capacity for hydraulic oil
- 50 l
- Travel speed Standard
- 0-20 km/h
- Travel speed Option 1
- 0-30 km/h
- Differential lock
- 100% front axle
- Work hydraulics discharge volume (max.)
- 68,4 l/min
- Kinematics type
- P

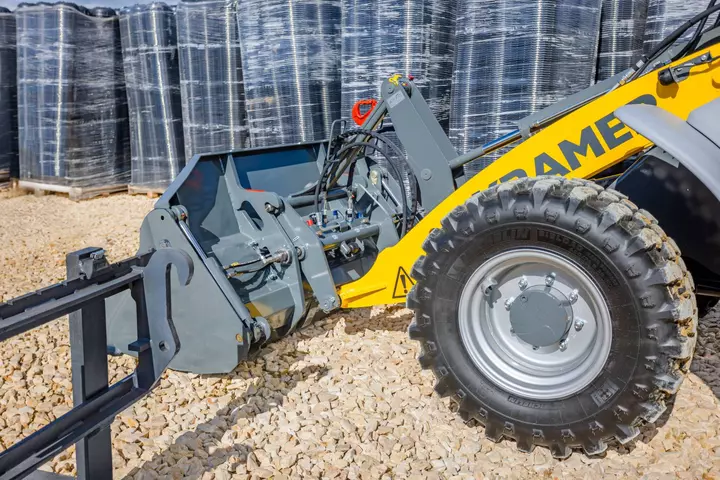

- Quick change system
- hydraulic

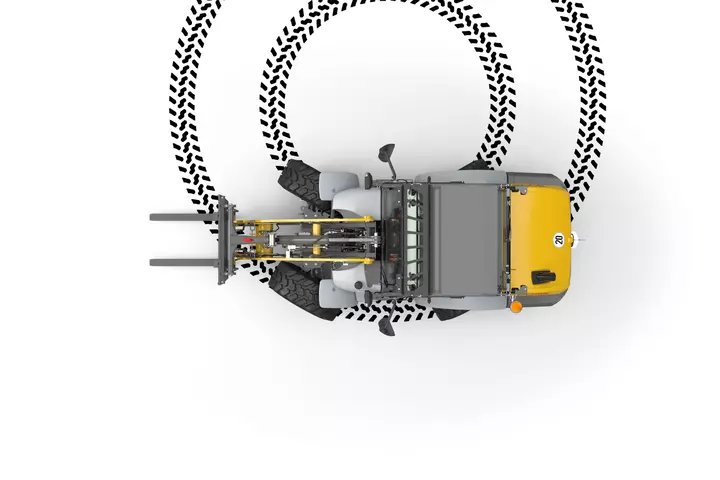

- Steering angle max.
- 40 degree
- Guaranteed sound power level Lw A (cabin)
- 101 dB(A)
- Measured sound power level Lw A
- 98.2 dB(A)
- Sound pressure level at the operator's ear
- 74 dB(A)

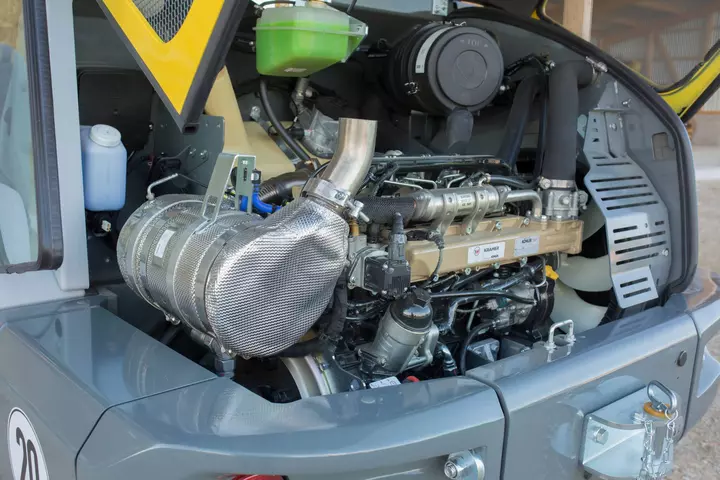

Kohler KDI2504TCR S516 specifications
- Cylinder
- 4
- Cylinder capacity
- 2,482 cm³
- Power rating max.
- 55.4 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Kohler
- Engine Designation
- KDI2504TCR S5
- Alternator
- 12V DC - 100A
- Cylinder (Kohler KDI2504 TCR S5)
- 4
- Cylinder capacity (Kohler KDI2504 TCR S5)
- 2,482 cm³
- Power rating max. (Kohler KDI2504 TCR S5)
- 55.4 kW
- Engine speed (Power max.) (Kohler KDI2504 TCR S5)
- 2,300 1/min
- Engine type (Kohler KDI2504 TCR S5)
- Diesel engine
- Engine Manufacturer (Kohler KDI2504 TCR S5)
- Kohler
- Engine Designation (Kohler KDI2504 TCR S5)
- KDI2504TCR S5
- Alternator (Kohler KDI2504 TCR S5)
- 12V DC - 100A
Kohler KDI2504TCR/D23A8 specifications
- Cylinder
- 4
- Cylinder capacity
- 2,482 cm³
- Power rating max.
- 55.4 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Kohler
- Engine Designation
- KDI2504TCR/D23A
- Alternator
- 12V DC - 100A
