Wacker Neuson

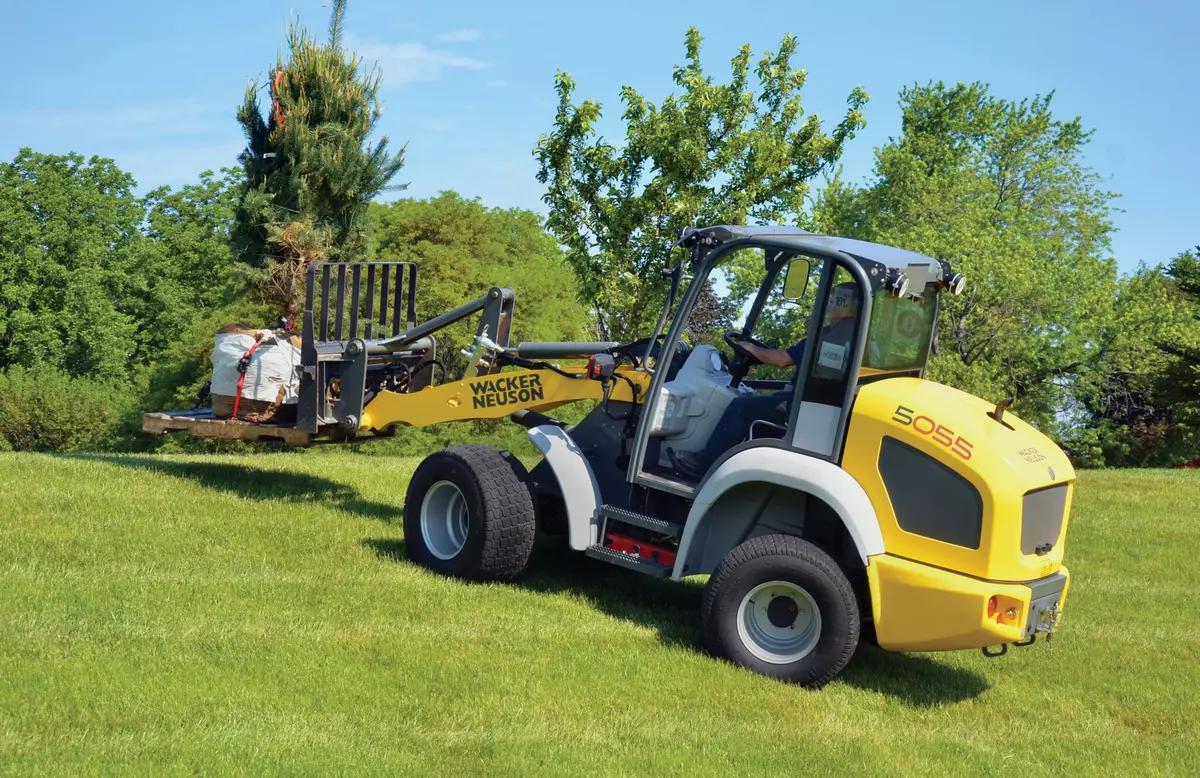

Wheel Loader 5055
Wheel Loaders
The compact model of the 5 series is an all-wheel steer wheel loader and became known as the "550". The clearance width on this machine is under 1.58 m, so working in space-constrained environments is not a problem. The undivided frame provides visibility of the front and rear attachment areas and simplifies attachment changes. An optional load stabilizer dampens attachment vibrations for smoother handling.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 5055
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data14 specifications
505514 specifications
- Travel speed
- 20.0 km/h
- Travel speed (Option)
- 30.0 km/h
- Length
- 4,950.0 mm
- Width
- 1,650.0 mm
- Height
- 2,380.0 mm
- Operating weight
- 3,600.0 kg
- Payload
- 1,600.0 kg
- Tipping load
- 1,980.0 kg
- Bucket capacity heaped
- 0.55 m3
- Power rating max.
- 35.0 KW
- Exhaust gas limit
- IIIA/Tier III
- Operating pressure hydraulics
- 235.0 bar
- Flow rate max.
- 56.0 l/min
- Turning radius
- 2,700.0 mm
