Wacker Neuson

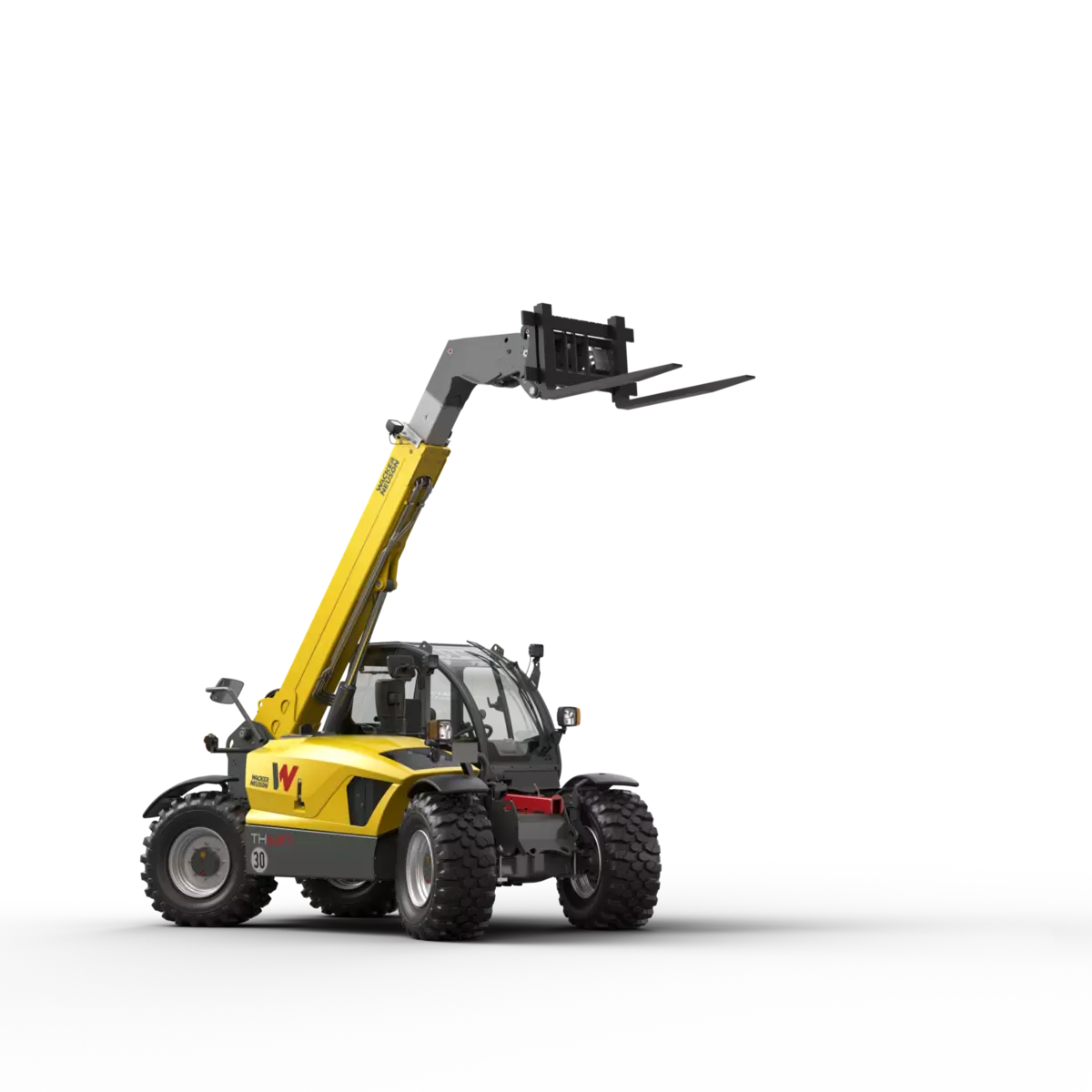

ModelTelehandler TH627
Telehandlers
A stacking height of up to 6m, a payload of 2.7T and optimum steadfastness: these make the telehandler TH627 stand out. Learn more about performance and comfort!
Model / part number: TH627
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
14 specifications · 1 configurations or components
Technical Data14 details
TH62714 specifications
- Travel speed
- 20 km/h
- Travel speed (Option)
- 30 km/h
- Length
- 4,400 mm
- Width
- 1,960 mm

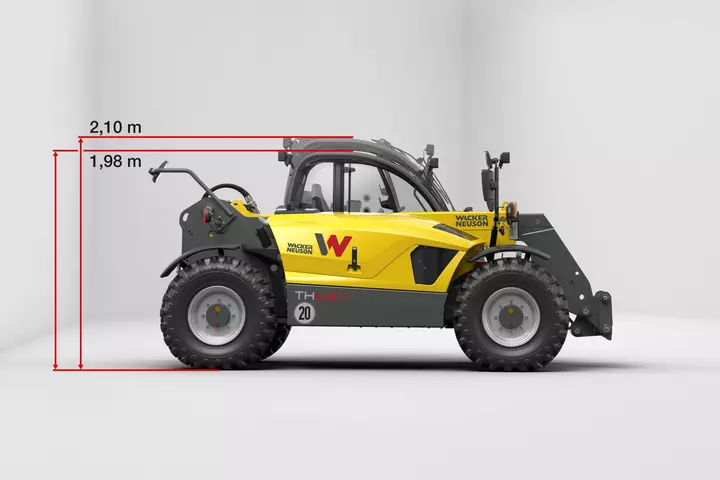

- Height
- 2,105 mm
- Weight
- 5,000 kg
- Payload max.
- 2,700 kg
- Payload max. LSP 500mm
- 2,700 kg
- Payload lift max.
- 1,800 kg
- Lift max.
- 5,730 mm
- Lift bucket swivel
- 6,080 mm
- Maximum torque
- 300 Nm
- Operating pressure hydraulics
- 260 bar
- Flow rate max.
- 89 l/min
