Wacker Neuson

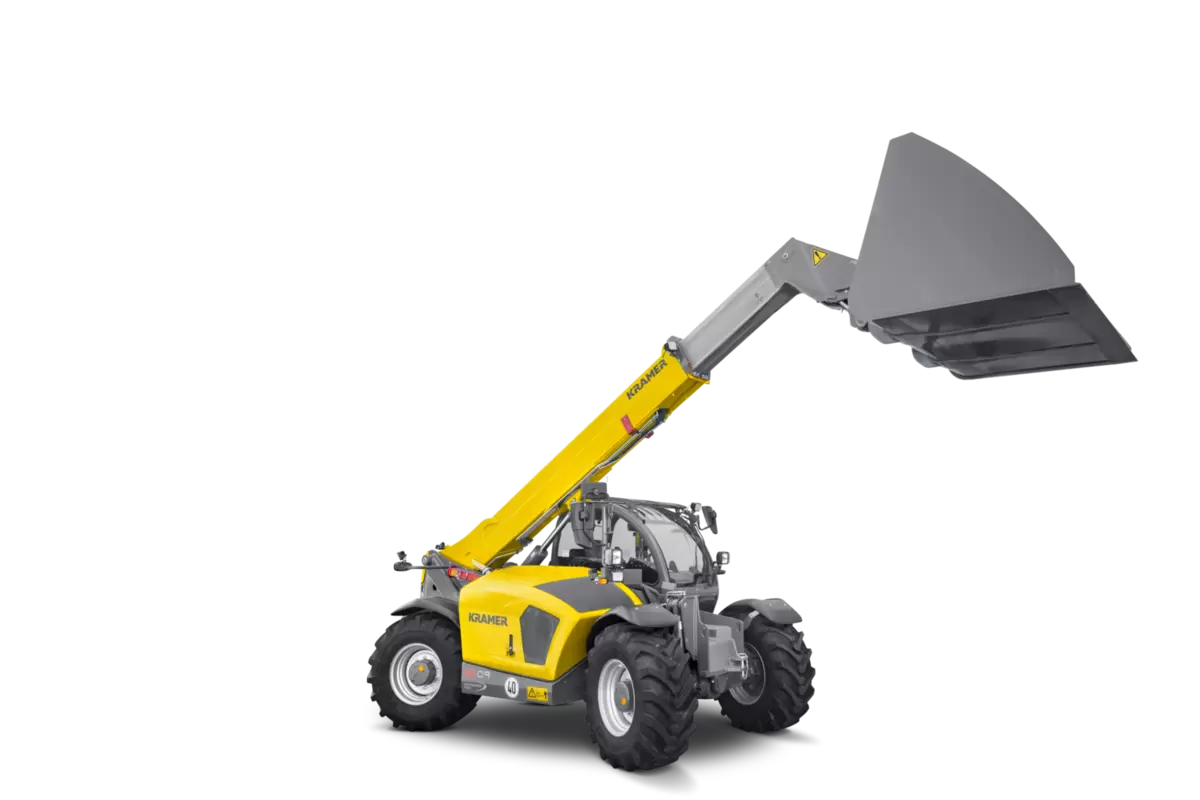

Telehandler 5509
Telehandlers

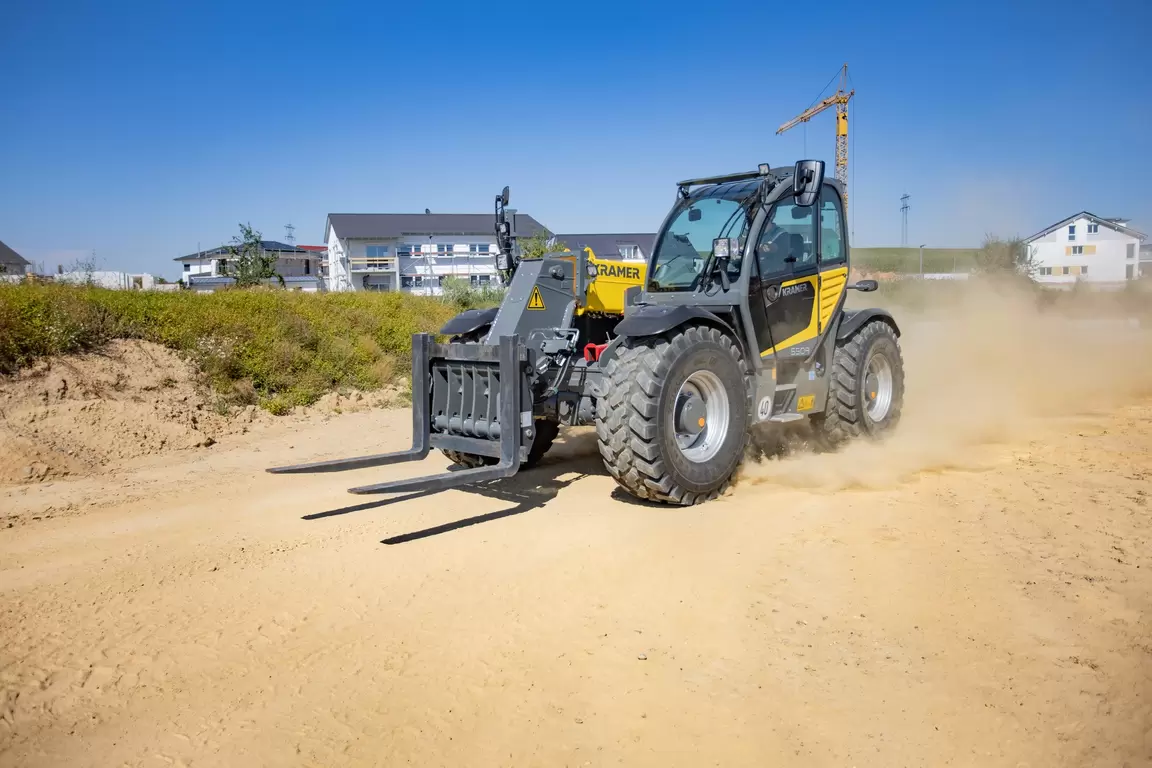

The 5509 telehandler is ideal for daily use with low fuel consumption at high torque and enormous lift forces offering up to 8.75 m of stacking height. Click here.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 5509
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data73 specifications
550925 specifications
- Engine manufacturer
- Deutz
- Drive output
- 115 kW
- Drive output (Standard engine data)
- 156 PS
- At max. rpm
- 2,300 U/min
- Cylinder capacity
- 4,038 cm³
- Exhaust standard level
- V
- Exhaust aftertreatment
- DOC / DPF / SCR
- Payload (max.)
- 5,500 kg
- Payload at max. reach
- 2,200 kg
- Payload at max. stacking height
- 5,500 kg
- Stacking height (max.)
- 8,750 mm
- Payload max. (LSP 500 mm)
- 5,500 kg
- Operating weight
- 10,500 - 11,500 kg
- Thrust force (max.)
- 67.6 kN
- Lift capacity (max.)
- 67.3 kN
- Tank capacity for hydraulic oil
- 100 l
- Tank capacity for urea solution
- 12 l
- Travel speed Standard
- 0-40 km/h
- Travel speed Option 1
- 0-20 km/h
- Travel speed Option 2
- 0-30 km/h
- Differential lock
- 100% self-locking differential connectable in the front axle
- Steering angle max.
- 38 degree
- Guaranteed sound power level Lw A (cabin)
- 101 dB(A)
- Measured sound power level Lw A
- 97.1 dB(A)
- Sound pressure level at the operator's ear
- 72 dB(A)
Deutz TCD4.1 C3CI11516 specifications
- Cylinder
- 4
- Cylinder capacity
- 4,038 cm³
- Power rating max.
- 115 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD4.1 C3CI115
- Alternator
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C3 CI115)
- 4
- Cylinder capacity (Deutz TCD4.1 C3 CI115)
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C3 CI115)
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C3 CI115)
- 2,300 1/min
- Engine type (Deutz TCD4.1 C3 CI115)
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C3 CI115)
- Deutz
- Engine Designation (Deutz TCD4.1 C3 CI115)
- TCD4.1 C3CI115
- Alternator (Deutz TCD4.1 C3 CI115)
- 12V DC - 150A
Deutz TCD4.1 C5VI115A32 specifications
- Cylinder
- 4
- Cylinder capacity
- 4,038 cm³
- Power rating max.
- 115 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD4.1 C5VI115A
- Alternator
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A)
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A)
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A)
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A)
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A)
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A)
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A)
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A)
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A) 17
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A) 18
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A) 19
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A) 20
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A) 21
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A) 22
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A) 23
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A) 24
- 12V DC - 150A
- Cylinder (Deutz TCD4.1 C5 VI115 A) 25
- 4
- Cylinder capacity (Deutz TCD4.1 C5 VI115 A) 26
- 4,038 cm³
- Power rating max. (Deutz TCD4.1 C5 VI115 A) 27
- 115 kW
- Engine speed (Power max.) (Deutz TCD4.1 C5 VI115 A) 28
- 2,300 1/min
- Engine type (Deutz TCD4.1 C5 VI115 A) 29
- Diesel engine
- Engine Manufacturer (Deutz TCD4.1 C5 VI115 A) 30
- Deutz
- Engine Designation (Deutz TCD4.1 C5 VI115 A) 31
- TCD4.1 C5VI115A
- Alternator (Deutz TCD4.1 C5 VI115 A) 32
- 12V DC - 150A
