Wacker Neuson

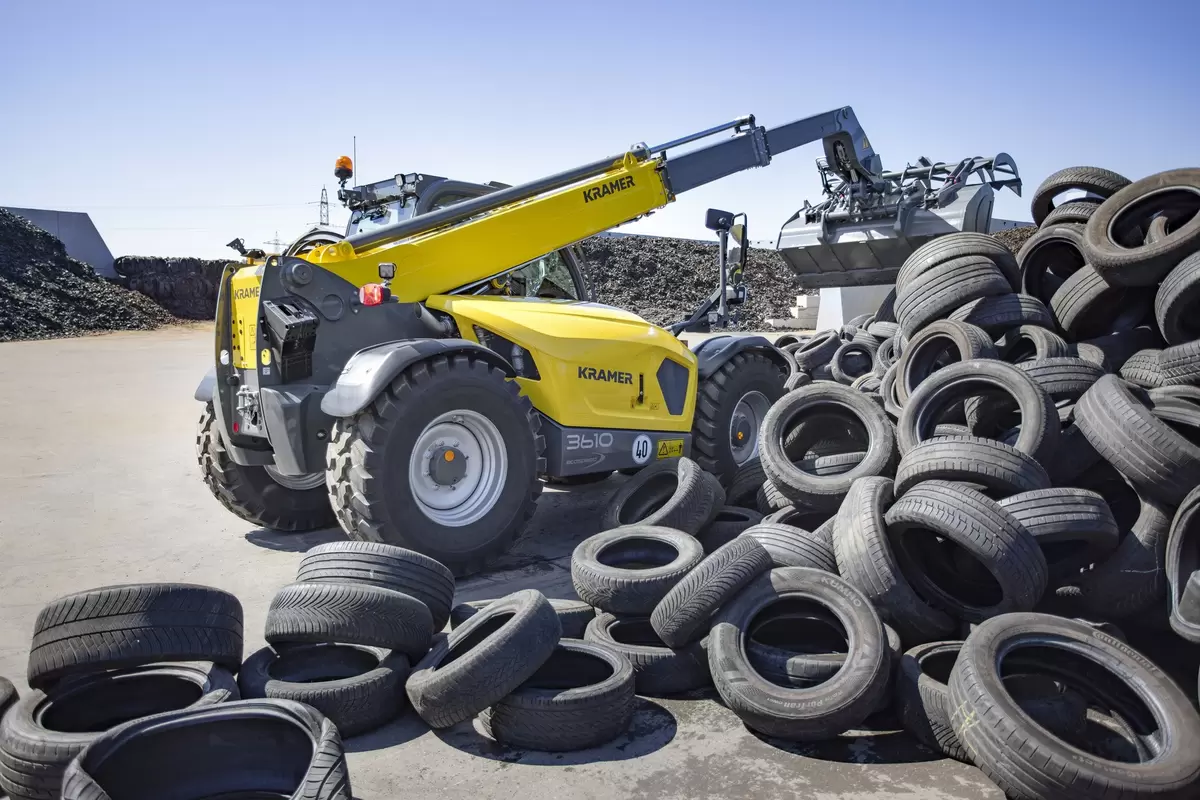

Telehandler 3610
Telehandlers
With the 3610, Kramer reaches new lift heights and transmission ranges with its new dimensions, in doing so the 3-piece boom ensures maximum compactness. Simply click here
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: 3610
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data67 specifications
361027 specifications
- Engine manufacturer
- Deutz
- Drive output
- 100 kW
- Drive output (Standard engine data)
- 136 PS
- At max. rpm
- 2,300 U/min
- Cylinder capacity
- 3,621 cm³
- Exhaust standard level
- V
- Exhaust aftertreatment
- DOC / DPF / SCR
- Payload (max.)
- 3,600 kg
- Payload at max. reach
- 400 kg
- Payload at max. stacking height
- 1,450 kg
- Stacking height (max.)
- 9,500 mm
- Payload max. (LSP 500 mm)
- 3,600 kg
- Operating weight
- 7,600 - 8,200 kg
- Thrust force (max.)
- 50 kN
- Lift capacity (max.)
- 43 kN
- Tank capacity for fuel
- 100 l
- Tank capacity for hydraulic oil
- 100 l
- Tank capacity for urea solution
- 9.5 l
- Travel speed Standard
- 0-30 km/h
- Travel speed Option 1
- 0-20 km/h
- Travel speed Option 2
- 0-40 km/h
- Differential lock
- 100% connectible in the front axle (Option)
- Work hydraulics discharge volume (max.)
- 140 l/min
- Steering angle max.
- 38 degree
- Guaranteed sound power level Lw A (cabin)
- 101 dB(A)
- Measured sound power level Lw A
- 99.2 dB(A)
- Sound pressure level at the operator's ear
- 72 dB(A)
Deutz TCD3.6 C5VI10016 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C5VI100
- Alternator
- 12V DC - 120A
- Cylinder (Deutz TCD3.6 C5 VI100)
- 4
- Cylinder capacity (Deutz TCD3.6 C5 VI100)
- 3,621 cm³
- Power rating max. (Deutz TCD3.6 C5 VI100)
- 100 kW
- Engine speed (Power max.) (Deutz TCD3.6 C5 VI100)
- 2,300 1/min
- Engine type (Deutz TCD3.6 C5 VI100)
- Diesel engine
- Engine Manufacturer (Deutz TCD3.6 C5 VI100)
- Deutz
- Engine Designation (Deutz TCD3.6 C5 VI100)
- TCD3.6 C5VI100
- Alternator (Deutz TCD3.6 C5 VI100)
- 12V DC - 120A
Deutz TCD3.6 C3CI1008 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C3CI100
- Alternator
- 12V DC - 120A
Deutz TCD3.6 C3CI70F8 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 70 kW
- Engine speed (Power max.)
- 2,200 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C3CI70F
- Alternator
- 12V DC - 120A
Deutz TCD3.6 C5VI100DU8 specifications
- Cylinder
- 4
- Cylinder capacity
- 3,621 cm³
- Power rating max.
- 100 kW
- Engine speed (Power max.)
- 2,300 1/min
- Engine type
- Diesel engine
- Engine Manufacturer
- Deutz
- Engine Designation
- TCD3.6 C5VI100DU
- Alternator
- 12V DC - 120A
