Wacker Neuson

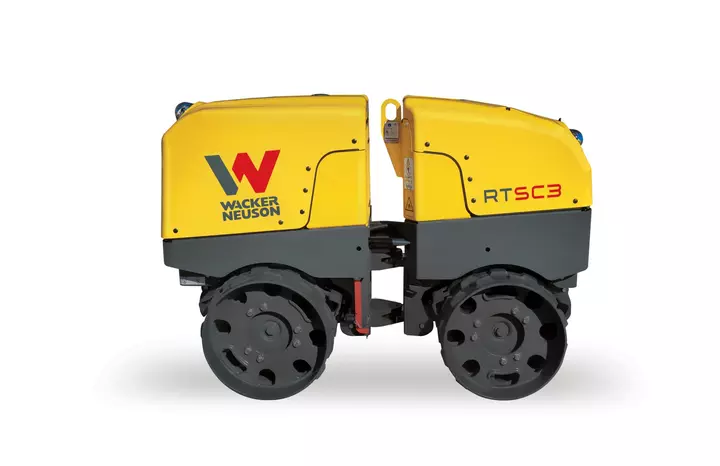

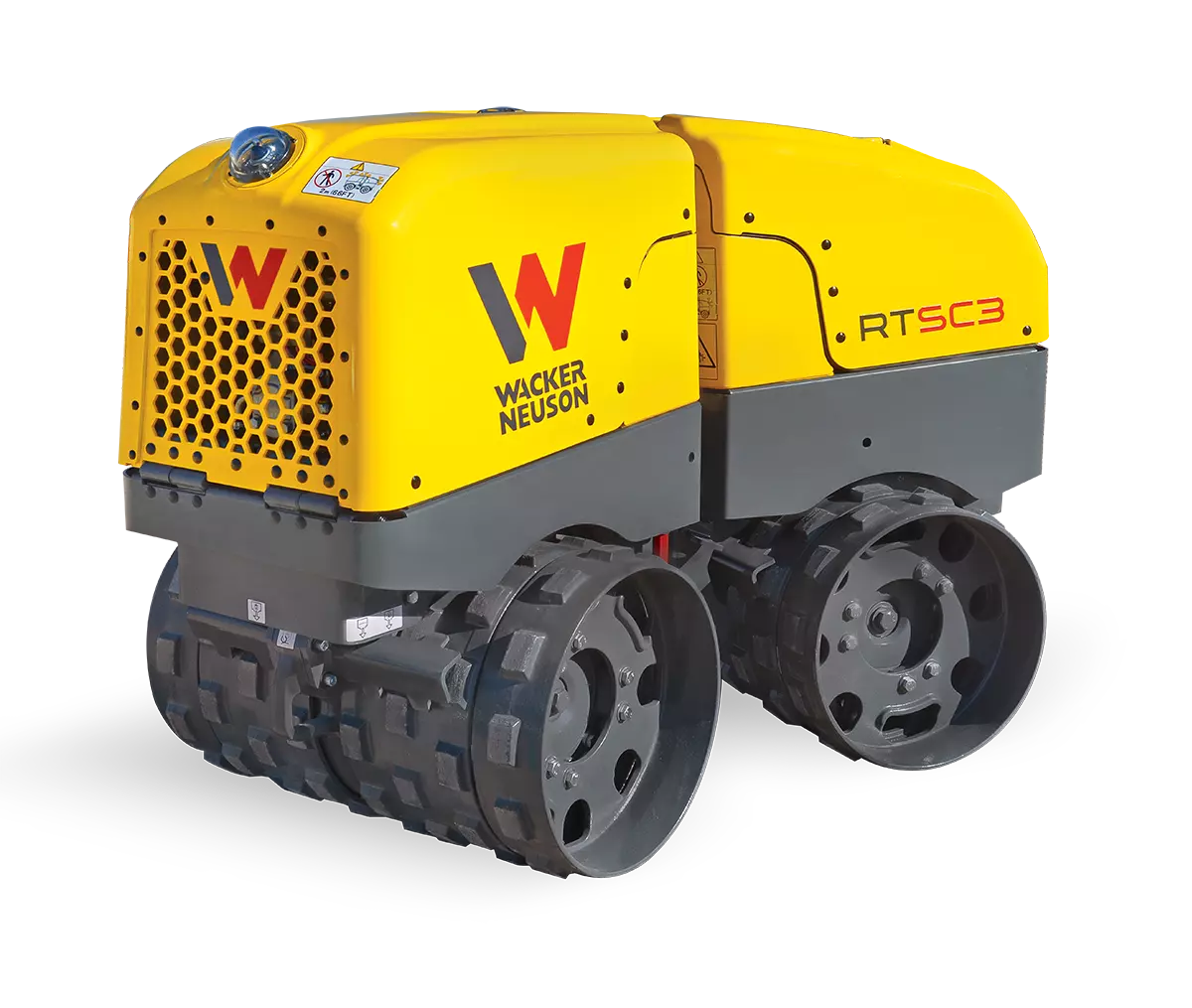

ModelTrench Roller RTLx-SC3
Rollers

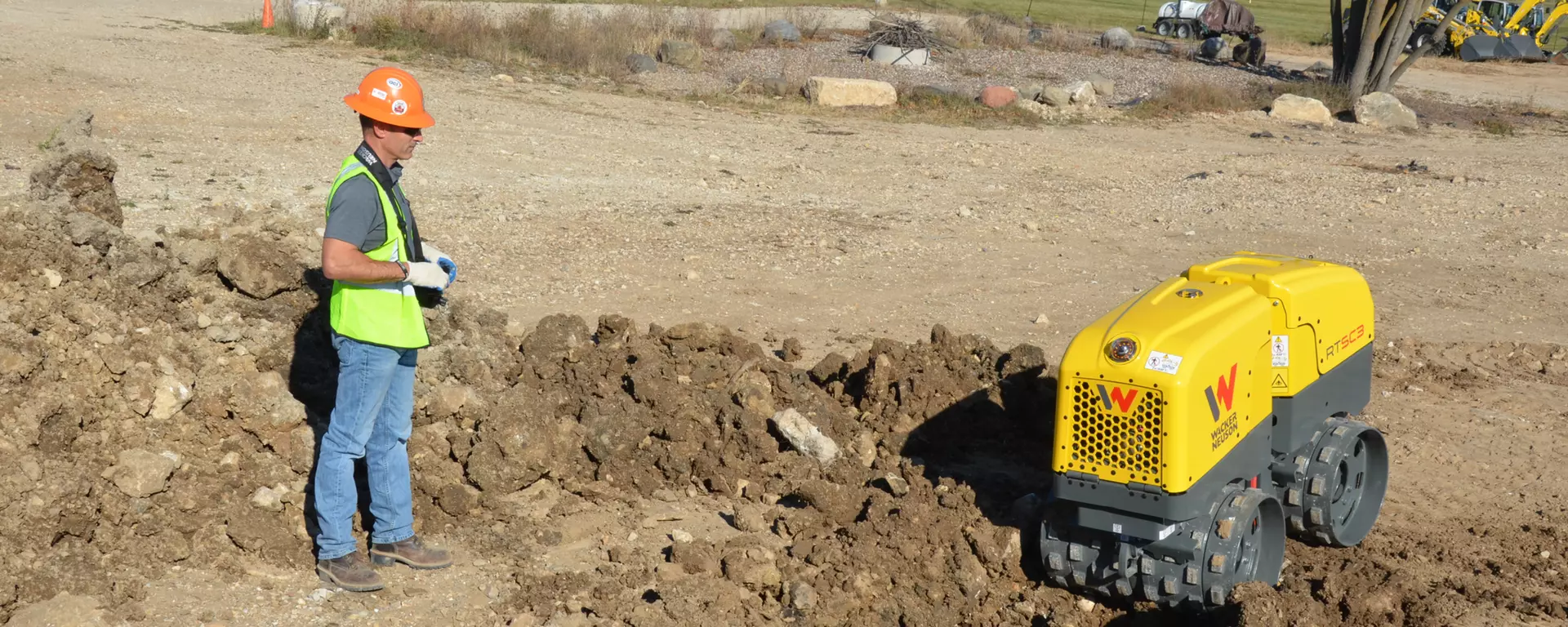

The smart remote-controlled trench roller RTLx-SC3 from Wacker Neuson is ideally suited for the compaction of cohesive soils. The infrared-remote control offers proven compaction results with safes operation. Learn more!
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
27 specifications · 1 configurations or components
Technical Data23 details
RTLx-SC323 specifications
- Compaction capacity
- 990 m²/h
- Gradeability
- 50%
- Maximum centrifugal force
- 68.4 kN
- Dynamic force per drum
- 34 kN front and rear
- Travel speed
- 1.3–2.5 km/h
- Operating weight
- 1,465 kg
- Dry weight
- 1,428 kg
- Dimensions (L × W × H)
- 1,853 × 820 × 1,268 mm

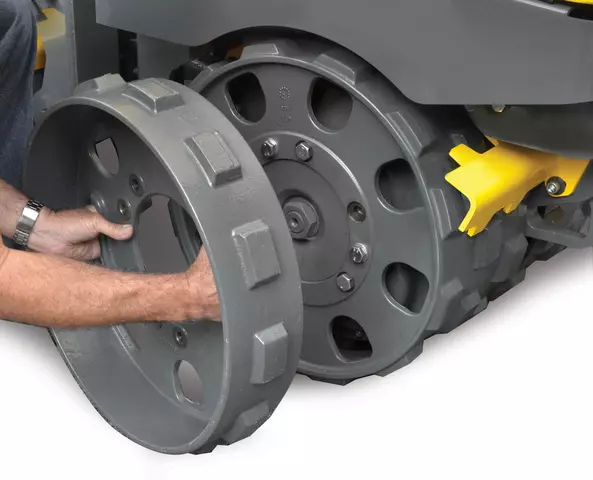

- Drum width
- 820 mm
- Drum diameters
- 380 mm minor / 520 mm major

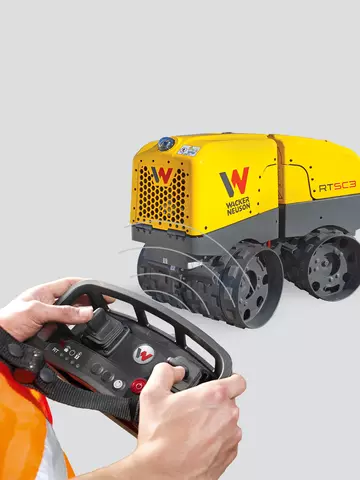

- Remote control range
- 20 m
- Remote battery capacity
- 16 h
- Remote battery charging time
- 2 h
- Fuel tank capacity
- 24 L
- Fuel consumption
- 4.5 L/h

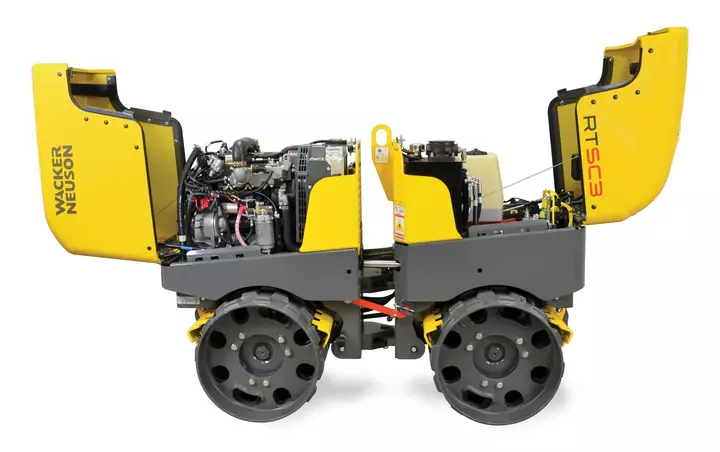

- Engine
- 3-cylinder Kohler diesel (Diesel EN 590)
- Engine speed
- 3,600 1/min
- Compaction frequency
- 41 Hz
- Amplitude settings
- 1.3 mm or 2.6 mm
- Pad area
- 23 cm²
- Pad height
- 16 mm
- Number of pads
- 192
- Drum sheet thickness
- 10 mm
Model Variations4 details
RTLx-SC3 with Compatec2 specifications
- Item number
- 5100061404

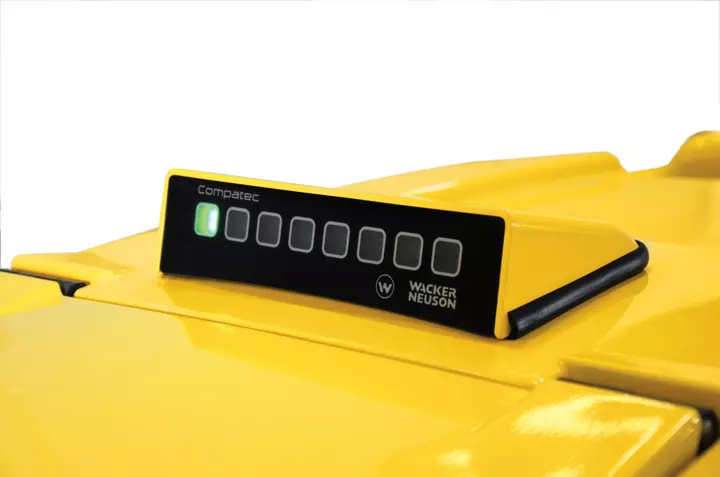

- Compaction monitoring
- Compatec included
RTLx-SC3 without Compatec2 specifications
- Item number
- 5100057010
- Compaction monitoring
- Not included
