Wacker Neuson

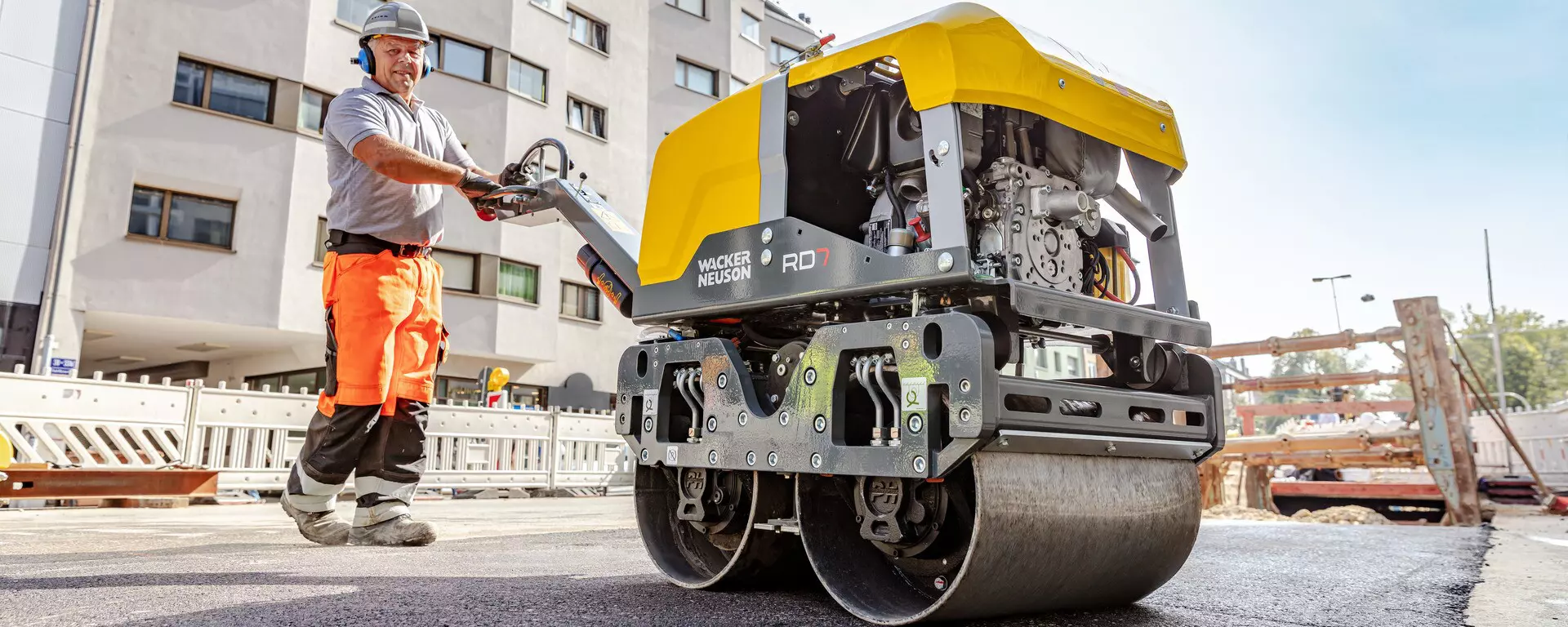

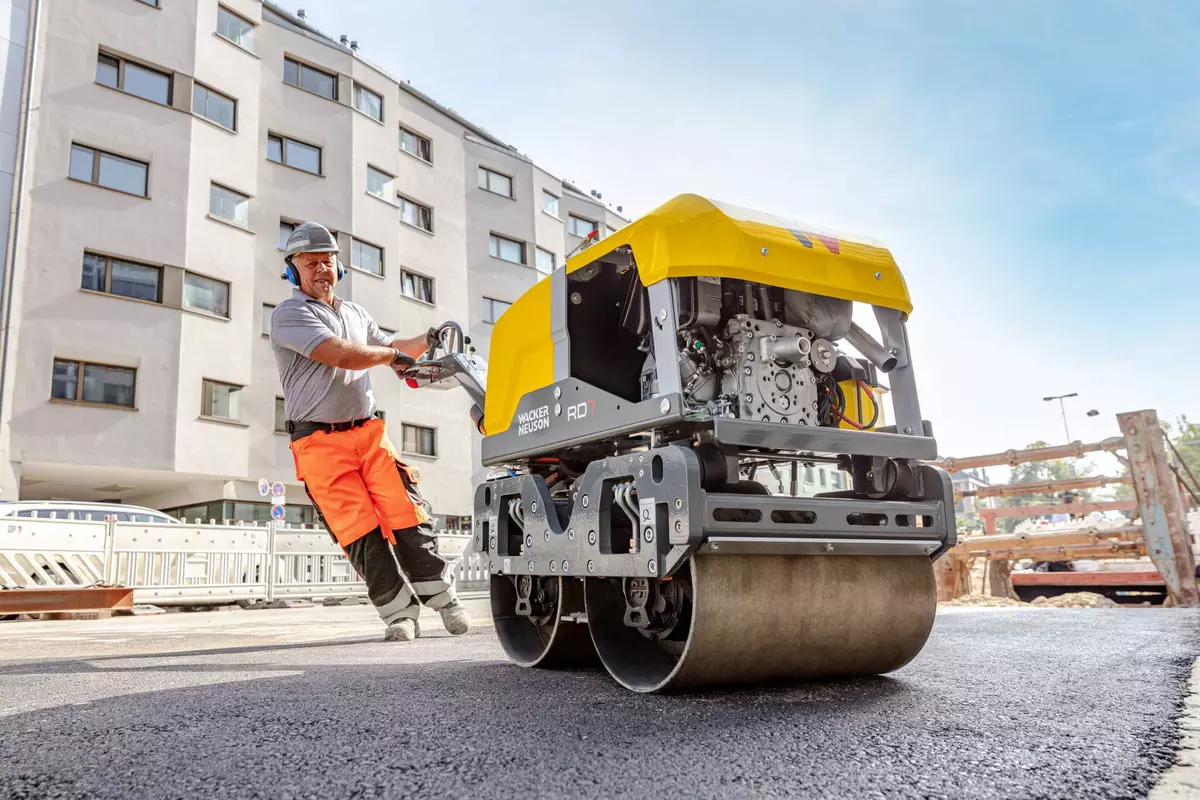

Walk-behind roller RD7
Rollers
First-class compaction performance for soil and asphalt: benefit from the advantages of the RD7 walk-behind dual-vibration roller!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: RD7
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data70 specifications
RD7Af HRC35 specifications
- Cylinder capacity
- 389 cm³
- Fuel consumption
- 2 l/h
- Tank capacity
- 6.1 l
- Effective power
- 6.4 kW
- Operating power
- 5.6 kW
- Area capacity
- 2,895 m²/h
- Gradeability
- 26 %
- Gradeability max. (without vibration)
- 33 %
- Operating speed [km/h]
- 4.3 km/h
- Linear force dynamic front
- 17.3 N/mm
- Linear force dynamic rear
- 17.3 N/mm
- Total Linear Force/Drum (front)
- 22.6 N/mm
- Total Linear Force/Drum (rear)
- 22.6 N/mm
- Travel speed
- 4.5 km/h
- Centrifugal force Level I
- 13.5 kN
- Centrifugal force Level II
- 22.5 kN
- Linear force static (front)
- 5.3 N/mm
- Travel speed (reverse)
- 2.5 km/h
- Width
- 720 mm
- Thickness Drum Sheet
- 10 mm
- Operating weight
- 687 kg
- Dry Weight
- 657 kg
- Drum diameter
- 400 mm
- Side clearance left
- 225 mm
- Side clearance right
- 225 mm
- Curb clearance right
- 350 mm
- Curb clearance left
- 350 mm
- Drum width
- 650 mm
- Wheelbase
- 500 mm
- Weight Drum (static) Front
- 141 kg
- Weight Drum (static) Rear
- 141 kg
- Tank capacity (42)
- 3 l
- Water tank capacity
- 60 l
- Hydraulic fluid volume
- 5 l
- HAV summation (average value)
- 2.5 m/s²
RD7Yehf LRC35 specifications
- Cylinder capacity
- 445 cm³
- Fuel consumption
- 1.2 l/h
- Tank capacity
- 5.4 l
- Effective power
- 6.5 kW
- Operating power
- 5.9 kW
- Area capacity
- 2,895 m²/h
- Gradeability
- 26 %
- Gradeability max. (without vibration)
- 33 %
- Operating speed [km/h]
- 4.3 km/h
- Linear force dynamic front
- 17.3 N/mm
- Linear force dynamic rear
- 17.3 N/mm
- Total Linear Force/Drum (front)
- 22.9 N/mm
- Total Linear Force/Drum (rear)
- 22.9 N/mm
- Travel speed
- 4.5 km/h
- Centrifugal force Level I
- 13.5 kN
- Centrifugal force Level II
- 22.5 kN
- Linear force static (front)
- 5.6 N/mm
- Travel speed (reverse)
- 2.5 km/h
- Width
- 720 mm
- Thickness Drum Sheet
- 10 mm
- Operating weight
- 707 kg
- Dry Weight
- 677 kg
- Drum diameter
- 400 mm
- Side clearance left
- 225 mm
- Side clearance right
- 225 mm
- Curb clearance right
- 350 mm
- Curb clearance left
- 350 mm
- Drum width
- 650 mm
- Wheelbase
- 500 mm
- Weight Drum (static) Front
- 141 kg
- Weight Drum (static) Rear
- 141 kg
- Tank capacity (42)
- 3 l
- Water tank capacity
- 60 l
- Hydraulic fluid volume
- 5 l
- HAV summation (average value)
- 2.5 m/s²
