Wacker Neuson

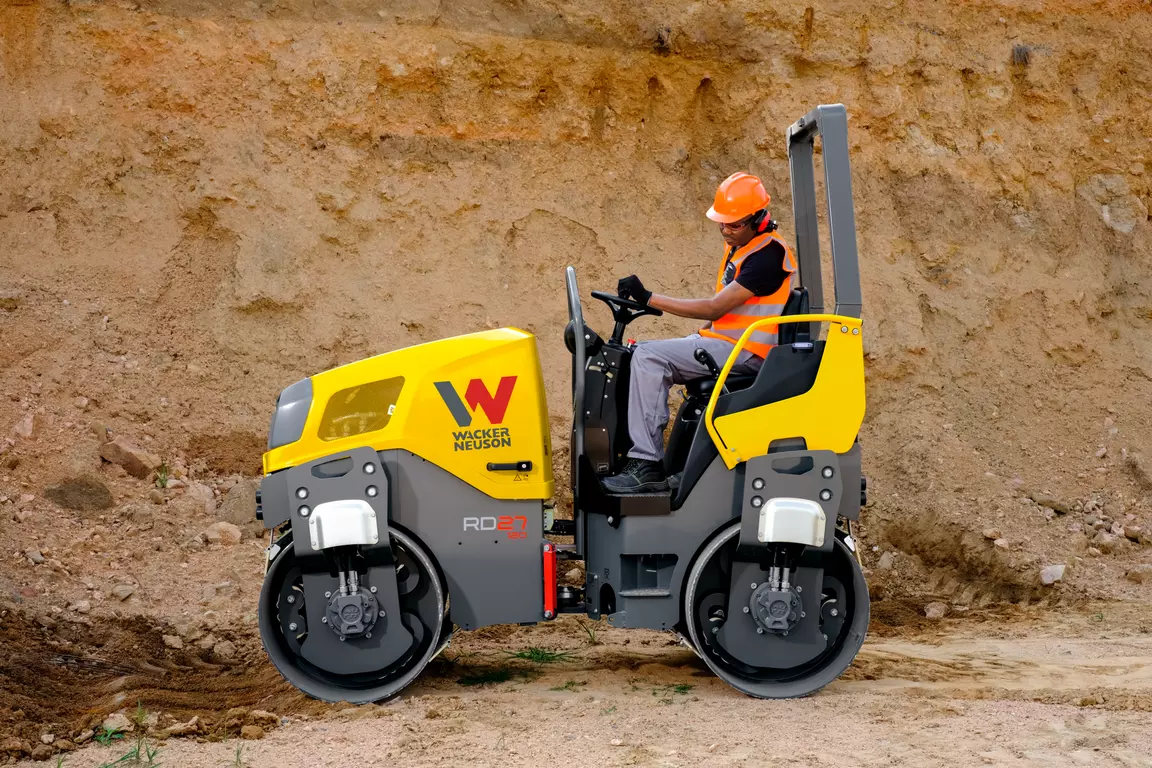

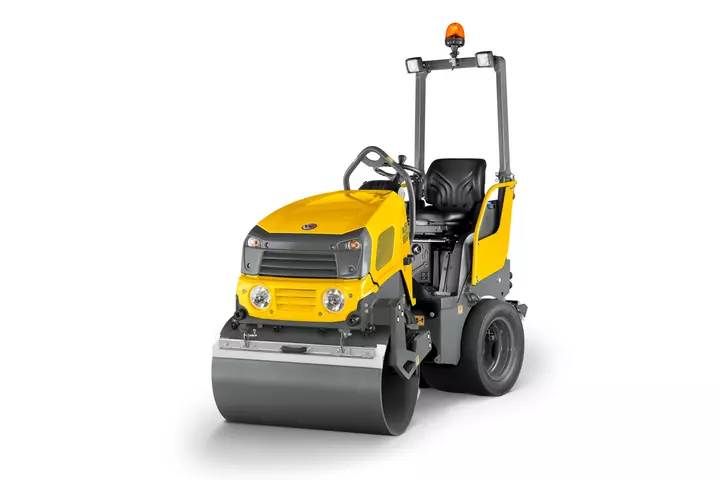

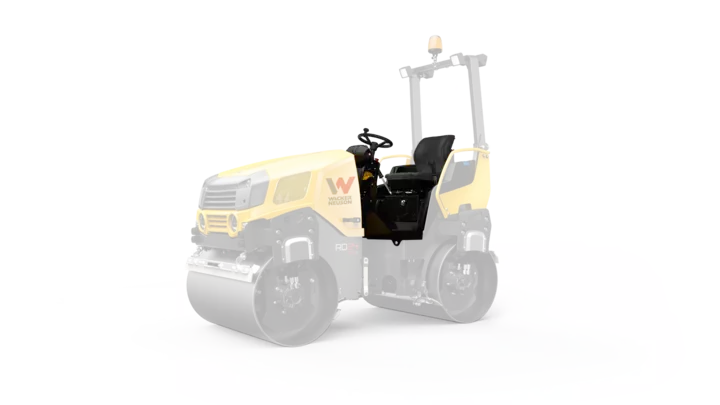

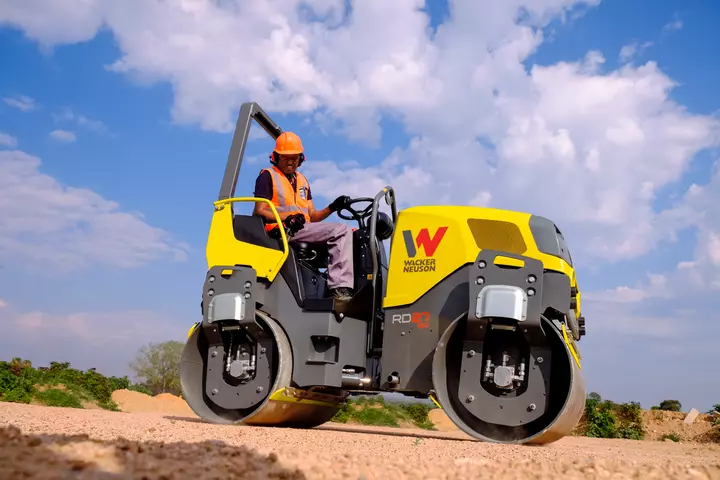

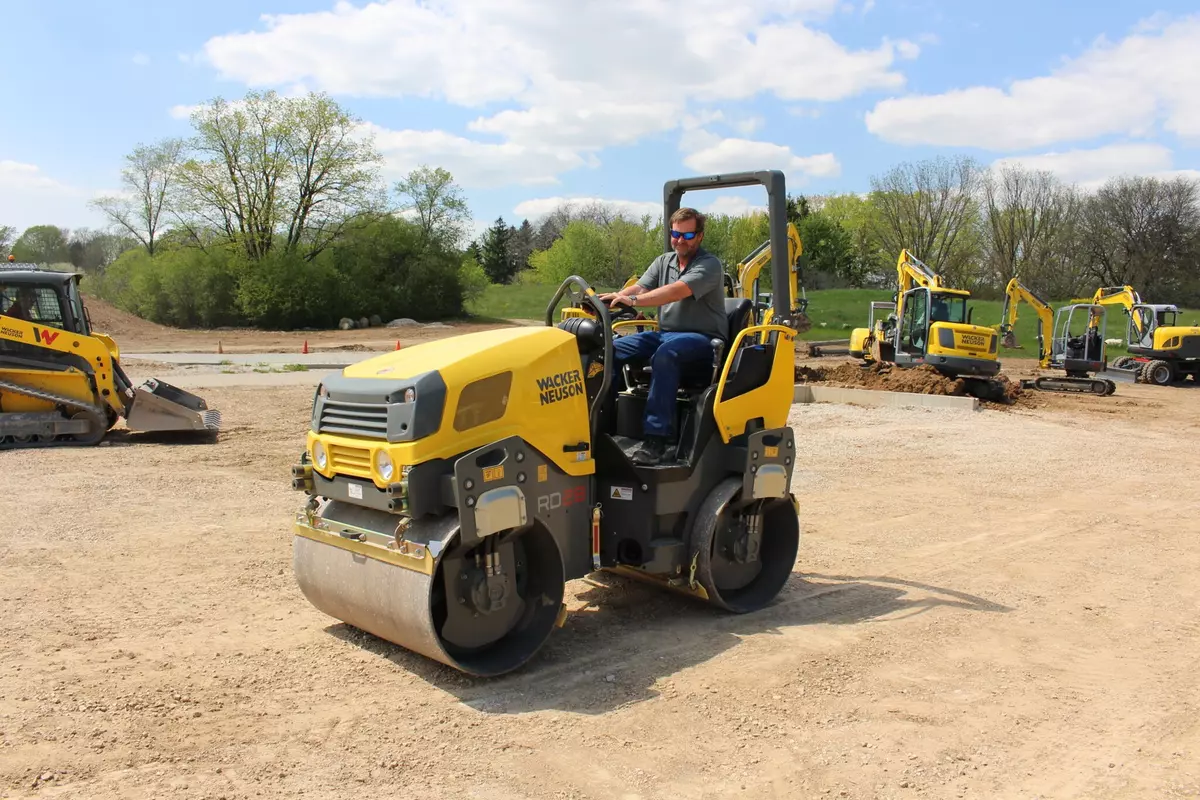

Tandem roller RD27
Rollers

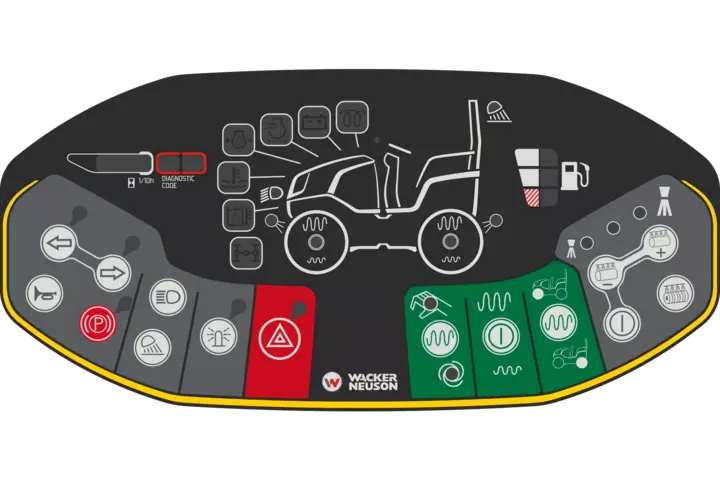

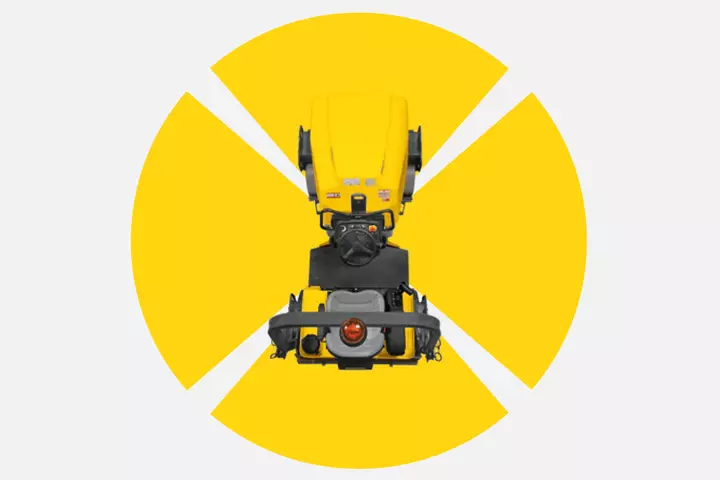

With the RD27 articulated tandem roller, the operator benefits from intuitive operation and a comprehensive view of the compaction area. Learn more!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: RD27
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data64 specifications
RD27-12064 specifications
- Gradeability
- 30 %
- Gradeability max. (without vibration)
- 40 %
- Travel speed
- 0 - 12 km/h
- Static linear load (front)
- 1.11 kg/mm
- Static linear load (rear)
- 1.13 kg/mm
- Linear load with vibration Level I (front)
- 4.6 kg/mm
- Linear load with vibration Level II (front)
- 3.24 kg/mm
- Linear load with vibration Level I (rear)
- 4.62 kg/mm
- Linear load with vibration Level II (rear)
- 3.26 kg/mm
- Compaction force Level I (front)
- 54 kN
- Compaction force Level II (front)
- 38 kN
- Compaction force I (rear)
- 54 kN
- Compaction force II (rear)
- 38 kN
- Vibration frequency Level I (front)
- 65 Hz
- Vibration frequency Level II (front)
- 51 Hz
- Vibration frequency Level I (rear)
- 65 Hz
- Vibration frequency Level II (rear)
- 51 Hz
- Amplitude Level I (front)
- 0.45 mm
- Amplitude Level II (front)
- 0.45 mm
- Amplitude Level I (rear)
- 0.45 mm
- Amplitude Level II (rear)
- 0.45 mm
- Centrifugal force Level I (front)
- 49 kN
- Centrifugal force Level II (front)
- 30 kN
- Centrifugal force Level I (rear)
- 49 kN
- Centrifugal force Level II (rear)
- 30 kN
- Static Cross Slope
- 30 °
- Length
- 2,530 mm
- Width
- 1,310 mm
- Height
- 1,752 mm
- Operating weight
- 2,695 kg
- Operating weight, max.
- 3,410 kg

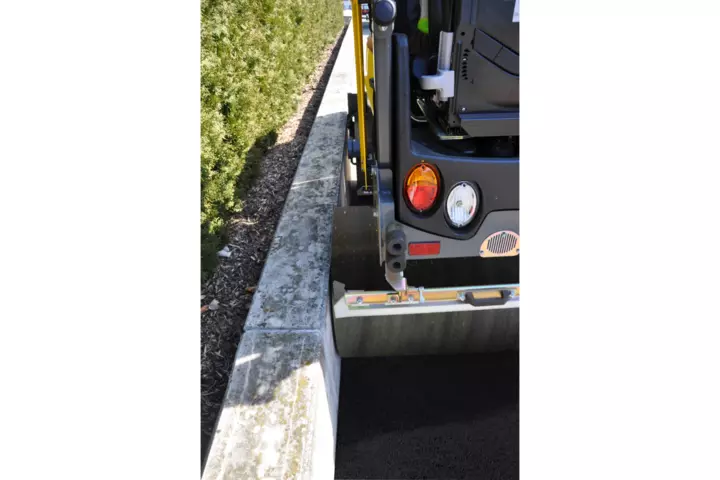

- Curb clearance (left)
- 570 mm
- Curb clearance (right)
- 570 mm
- Dry Weight
- 2,510 kg
- Gross vehicular weight
- 2,810 kg

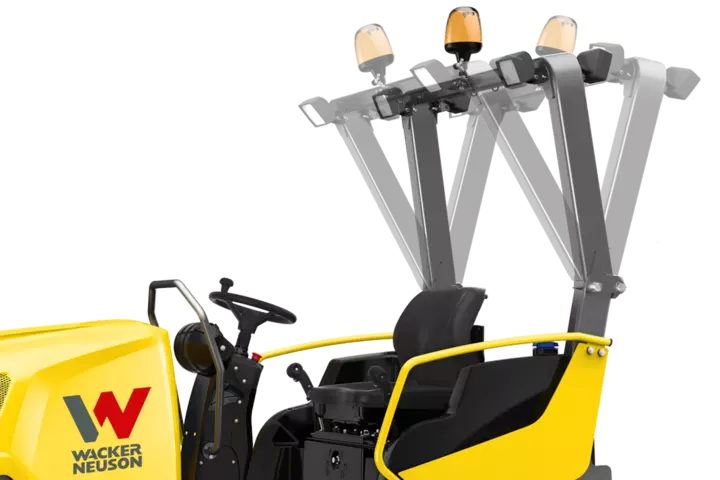

- Total height with ROPS
- 2,378 mm
- Empty weight with ROPS
- 2,510 kg
- Curb clearance right
- 55 mm
- Curb clearance left
- 55 mm
- Operating width
- 1,200 mm
- Ground clearance
- 280 mm

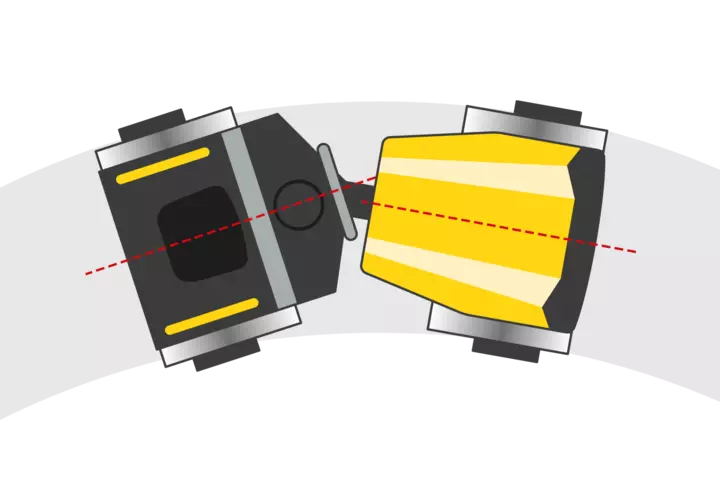

- Turning radius inside
- 2,370 mm
- Operating weight with roll over protective structure
- 2,695 kg
- Wheelbase
- 1,700 mm
- Turning radius outside
- 3,570 mm
- Drum width (front)
- 1,200 mm
- Drum width (rear)
- 1,200 mm
- Drum diameter (front)
- 720 mm
- Drum diameter (rear)
- 720 mm
- Drum thickness (front)
- 15 mm
- Drum thickness (rear)
- 15 mm
- Cylinder capacity
- 1,499 cm³
- Effective power
- 22.9 kW
- Nominal Engine speed
- 2,700 1/min
- Starter battery Voltage
- 12 V
- Battery capacity (nom. value)
- 70 Ah
- Water tank capacity
- 180 l
- Fuel Tank capacity
- 42 l
- Vibration, Whole Body
- 0
- CO (NRSC)
- 1 g/KWh
- CO2 (NRSC)
- 797 g/KWh
- HC + NOx (NRSC)
- 6.6 g/KWh
- PM (NRSC)
- 0.4 g/KWh
- Pendulum angle +/
- 8 °
