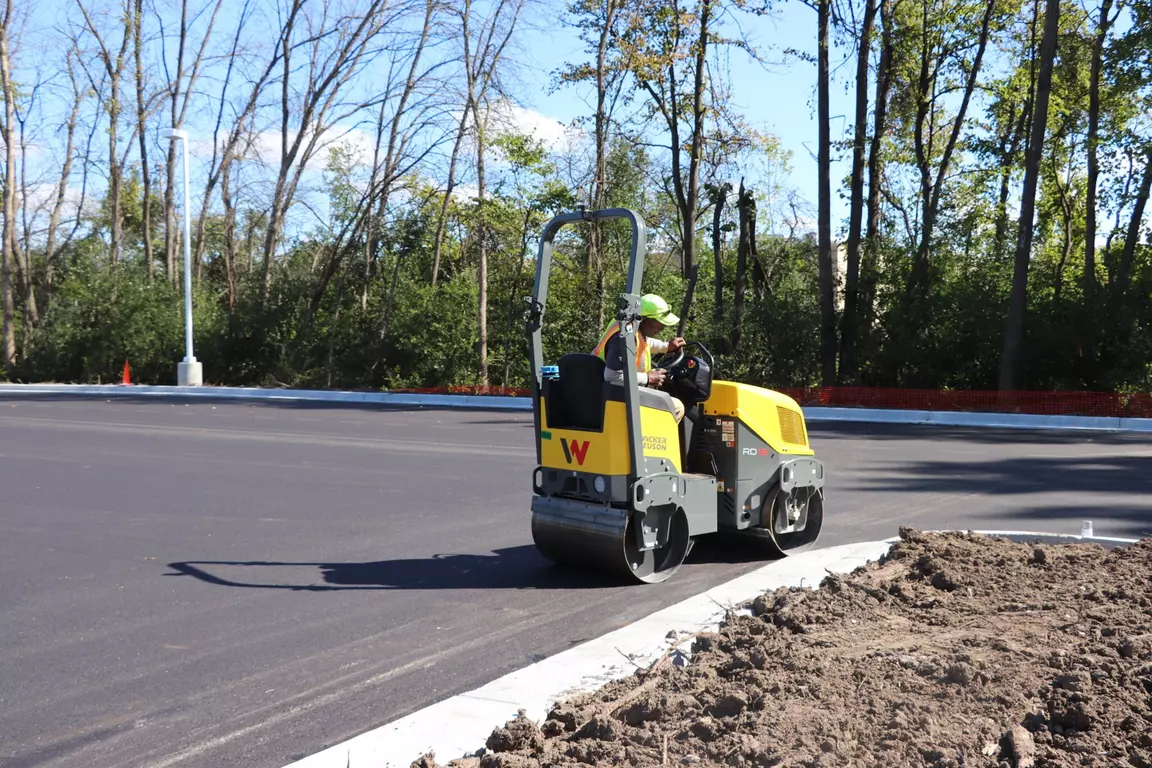

Tandem Roller RD12
Rollers
The RD12 tandem vibratory roller from Wacker Neuson features a dual drum drive and articulated steering for excellent maneuverability. Learn more!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: RD12
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data41 specifications
RD12L-9010 specifications
- Centrifugal force
- 15 kN
- Oscillation Angle
- 12 °
- Fuel consumption
- 6 l/h
- Power rating max.
- 15.1 kW
- Starter battery Voltage
- 12 V
- Water tank capacity
- 131 l
- Length for shipping
- 2,026 mm
- Width for shipping
- 1,058 mm
- Height for shipping
- 1,753 mm
- Shipping weight
- 1,038 kg
RD12A-9031 specifications
- Area capacity
- 7,246 m²/h
- Gradeability max. (without vibration)
- 30 %
- Travel speed
- 0 - 8 km/h
- Linear force static (front)
- 5.5 N/mm
- Linear force static (rear)
- 6.9 N/mm
- Force/Drum (dynamic) front
- 15 kN
- Force/Drum (dynamic) rear
- 0 kN
- Travel speed (reverse)
- 0 - 8 km/h
- Length
- 1,880 mm
- Width
- 986 mm
- Height
- 2,300 mm
- Thickness Drum Sheet
- 10 mm
- Drum diameter
- 560 mm
- Side clearance left
- 43 mm
- Side clearance right
- 43 mm
- Curb clearance right
- 400 mm
- Curb clearance left
- 400 mm
- Turning radius inside
- 1,950 mm
- Drum width
- 900 mm
- Wheelbase
- 1,321 mm
- Weight Drum (static) Front
- 503 kg
- Weight Drum (static) Rear
- 635 kg
- Tank capacity
- 23.8 l
- Centrifugal force
- 15 kN
- Oscillation Angle
- 12 °
- Fuel consumption
- 6 l/h
- Water tank capacity
- 131 l
- Length for shipping
- 2,026 mm
- Width for shipping
- 1,058 mm
- Height for shipping
- 1,753 mm
- Shipping weight
- 1,038 kg
