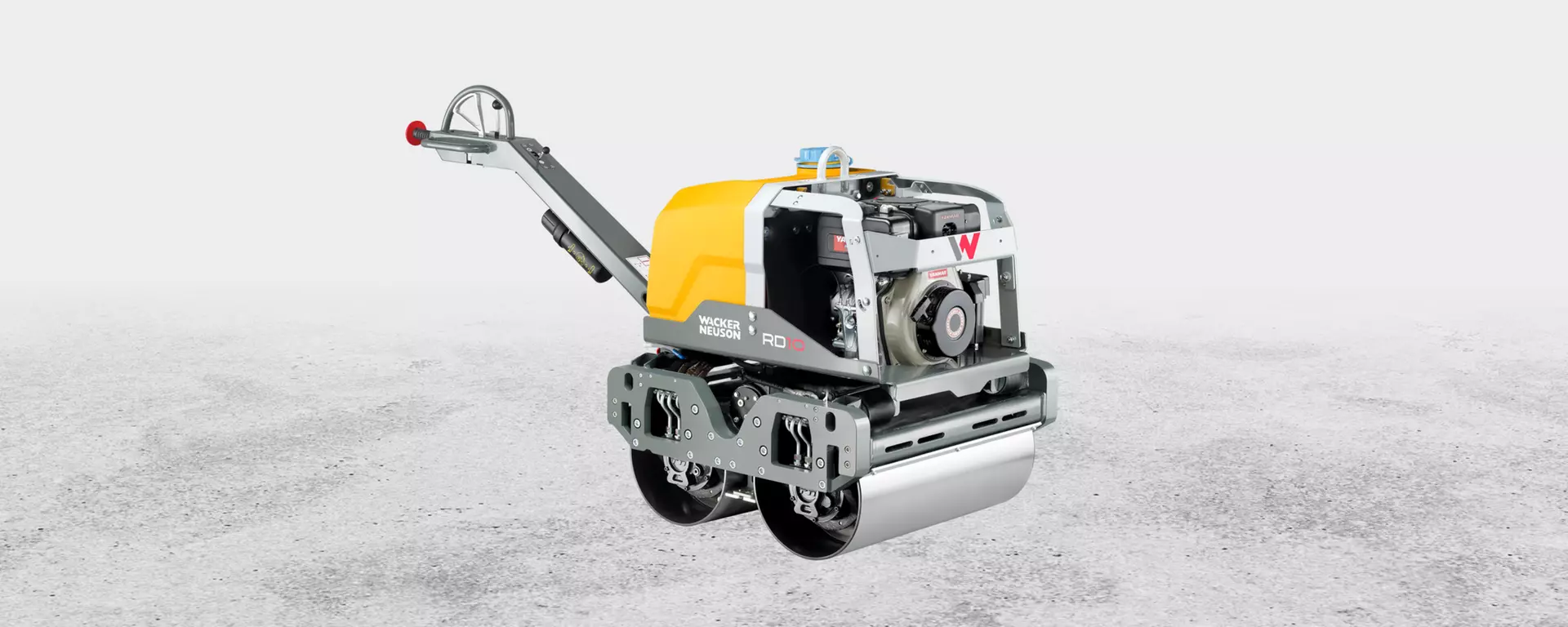

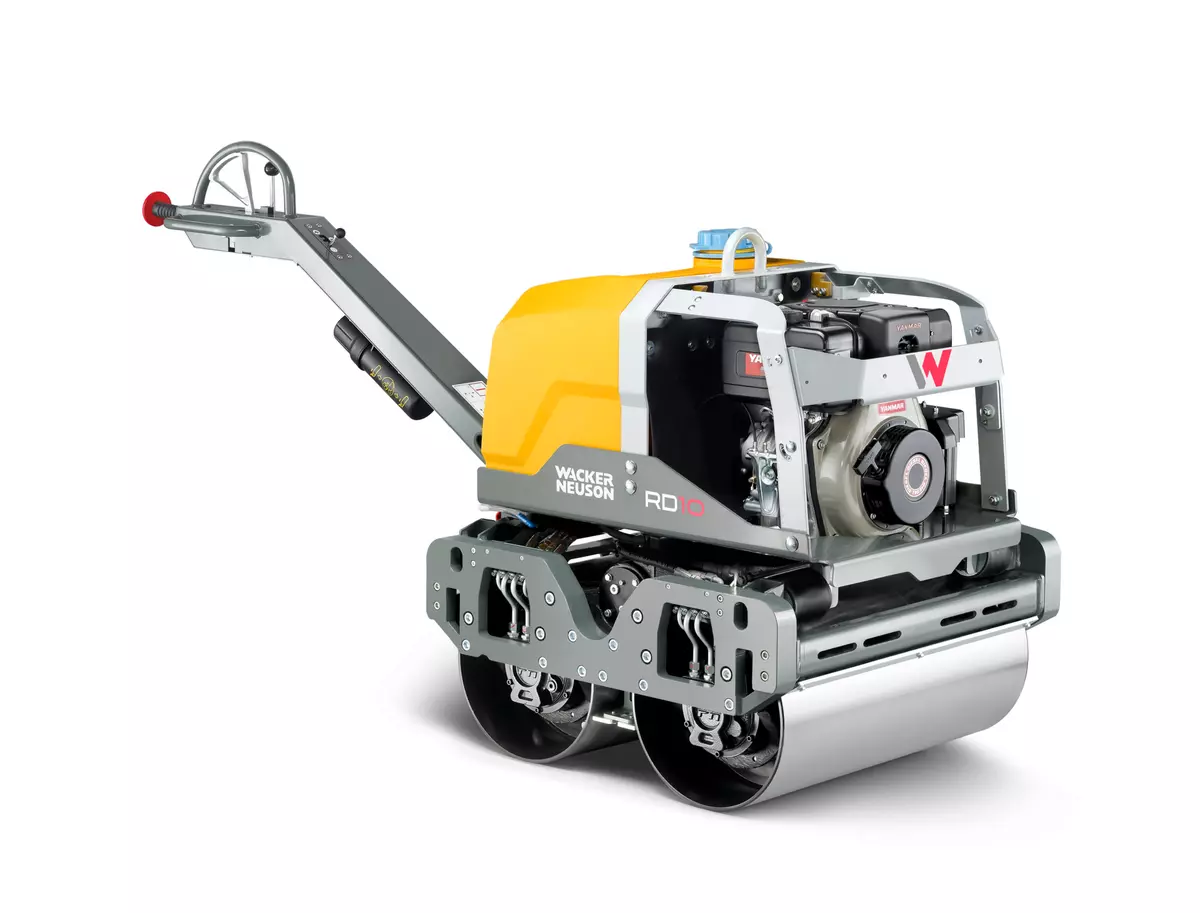

RD10 walk-behind roller
Rollers
Discover our new hand-guided roller RD10. It provides you with high comfort and optimum performance for any compaction job.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: RD10
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data33 specifications
RD10Yehf LRC33 specifications
- Cylinder capacity
- 445 cm³
- Fuel consumption
- 1.2 l/h
- Tank capacity
- 5.4 l
- Effective power
- 6.5 kW
- Operating power
- 5.9 kW
- Area capacity
- 2,625 m²/h
- Gradeability
- 25 %
- Gradeability max. (without vibration)
- 33 %
- Operating speed [km/h]
- 3.5 km/h
- Linear force dynamic front
- 26 N/mm
- Linear force dynamic rear
- 26 N/mm
- Total Linear Force/Drum (front)
- 21.1 N/mm
- Total Linear Force/Drum (rear)
- 21.1 N/mm
- Travel speed
- 3.5 km/h
- Centrifugal force Level I
- 22 kN
- Centrifugal force Level II
- 39 kN
- Linear force static (front)
- 6.5 N/mm
- Travel speed (reverse)
- 2.5 km/h
- Width
- 840 mm
- Thickness Drum Sheet
- 12 mm
- Operating weight
- 970 kg
- Dry Weight
- 940 kg
- Drum diameter
- 400 mm
- Side clearance left
- 225 mm
- Side clearance right
- 225 mm
- Curb clearance right
- 35 mm
- Curb clearance left
- 35 mm
- Drum width
- 750 mm
- Wheelbase
- 500 mm
- Tank capacity (40)
- 3 l
- Water tank capacity
- 60 l
- Hydraulic fluid volume
- 5 l
- HAV summation (average value)
- 0
