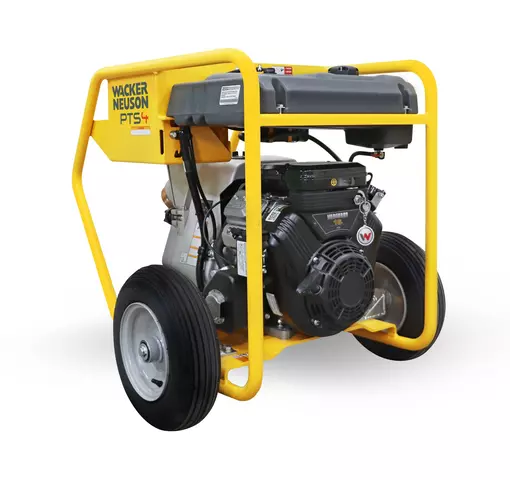

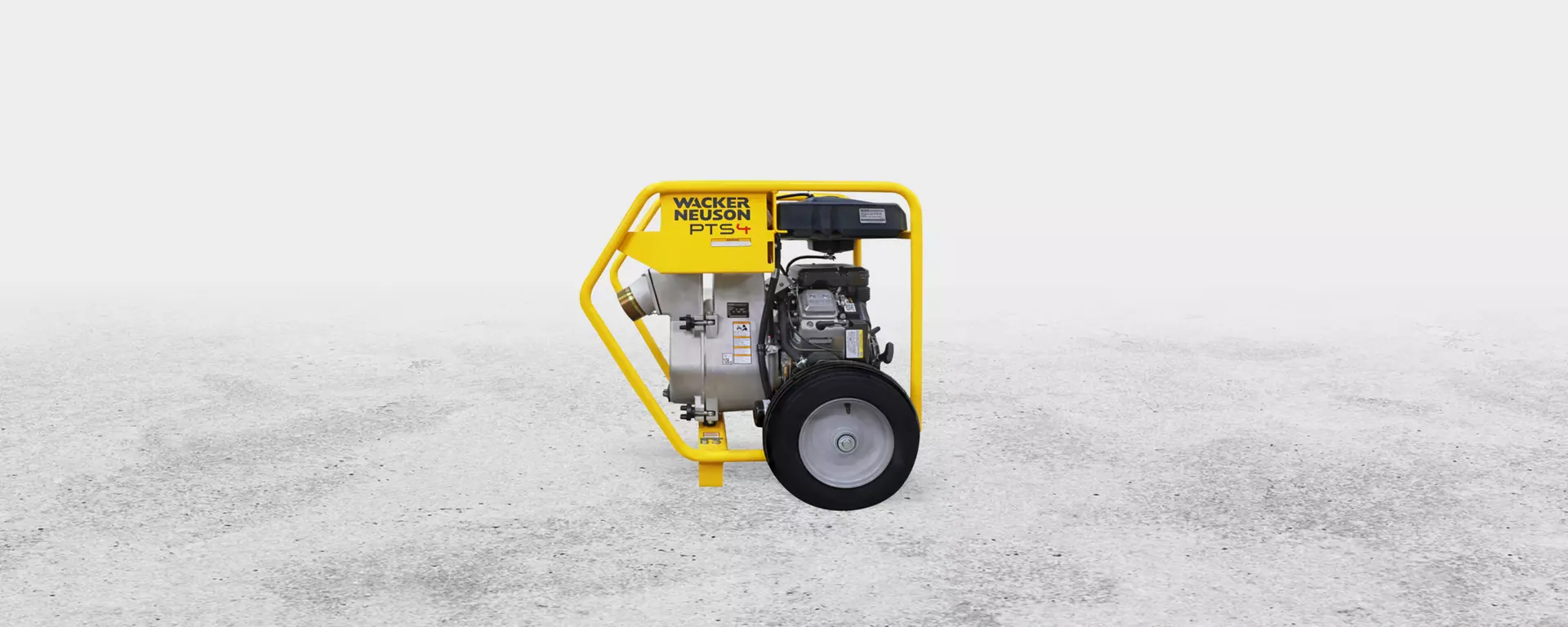

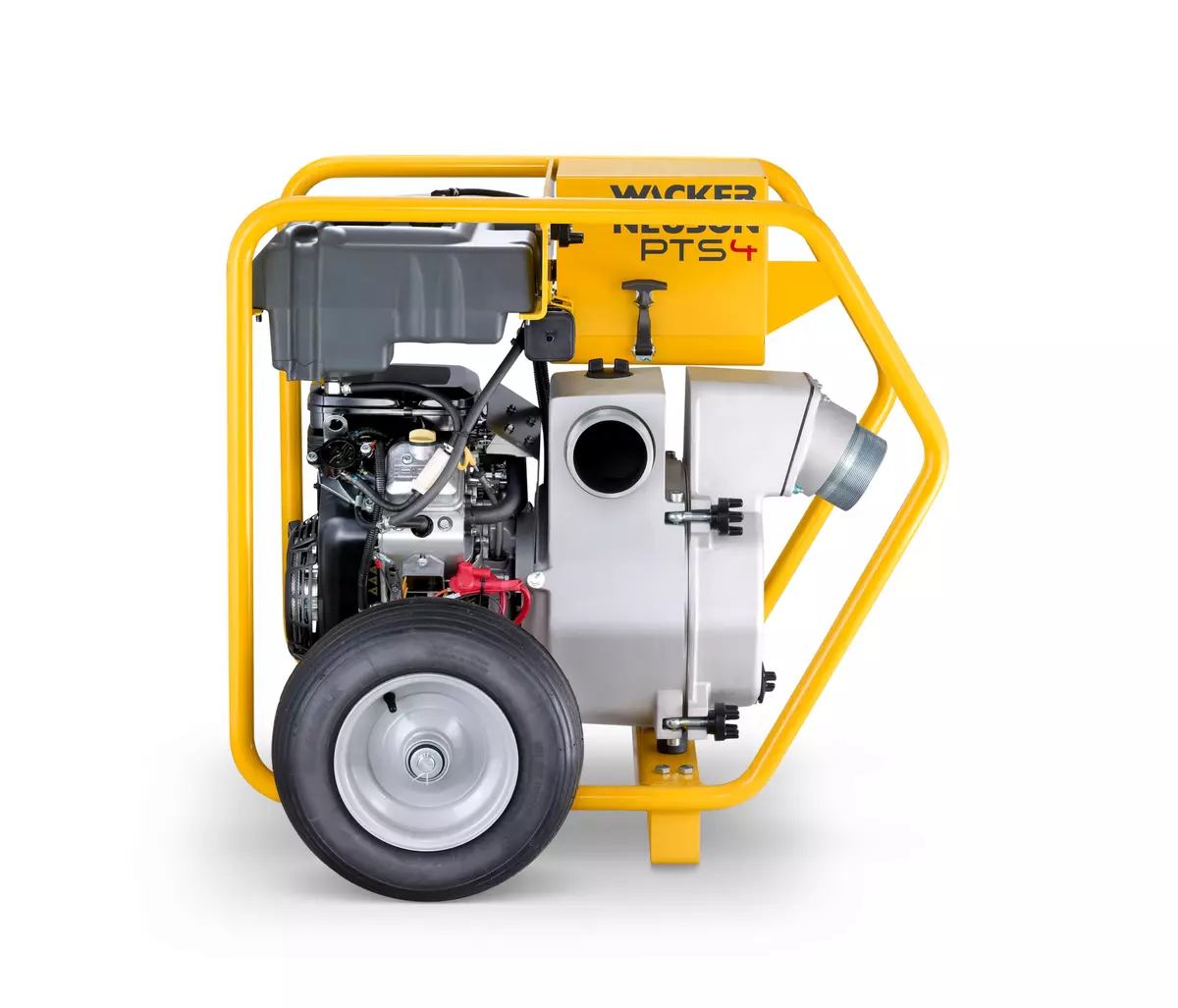

Self-priming Trash Pump PTS4
Pumps
Our self-priming centrifugal pump PTS4 provides reliable performance, is versatile in its application & is easy to transport. Learn more!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: PTS4
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data24 specifications
PTS4V24 specifications
- Cylinder capacity
- 479 cm³
- Tank capacity
- 17 l
- Oil filling max.
- 1.3 l
- Power rating max.
- 11.9 kW
- Flow rate max.
- 2,322 l/min
- Pump pressure max.
- 3.1 bar
- Solid diameter max.
- 50 mm
- Suction head max.
- 7.6 m
- Delivery height max.
- 24 m
- Length
- 915 mm
- Width
- 890 mm
- Height
- 890 mm
- Operating weight
- 150 kg
- Intake /Pressure socket dia.
- 100 mm
- Tank capacity (21)
- 17.4 l
- Starter Voltage
- 12 V
- Battery Cold start current CCA
- 230 A
- Battery Start current CA
- 32 A
- Engine speed 1
- 3,600 1/min
- Fuel consumption at Engine speed 1
- 5.4 l/h
- Run Time at Engine speed 1
- 3.2 hrs
- Length for shipping
- 1,150 mm
- Width for shipping
- 750 mm
- Height for shipping
- 1,800 mm
