Wacker Neuson

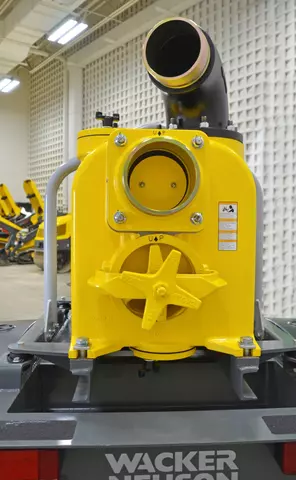

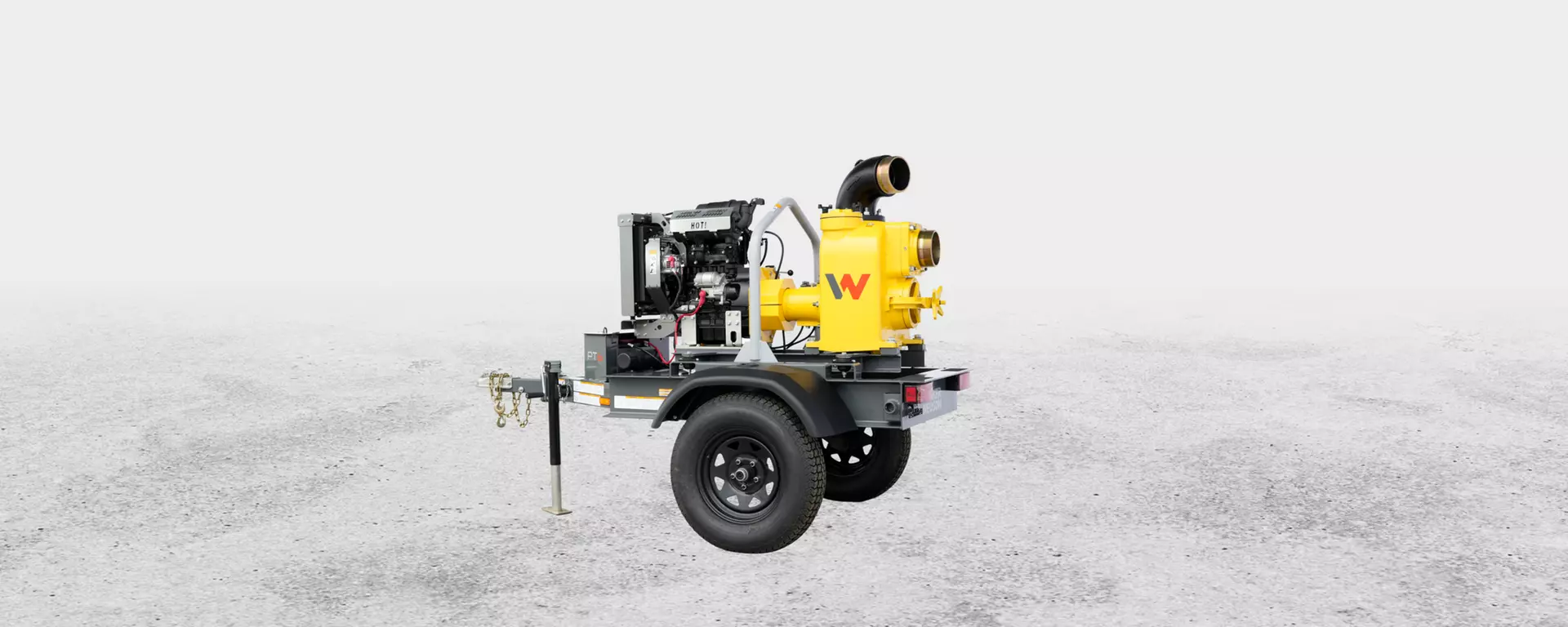

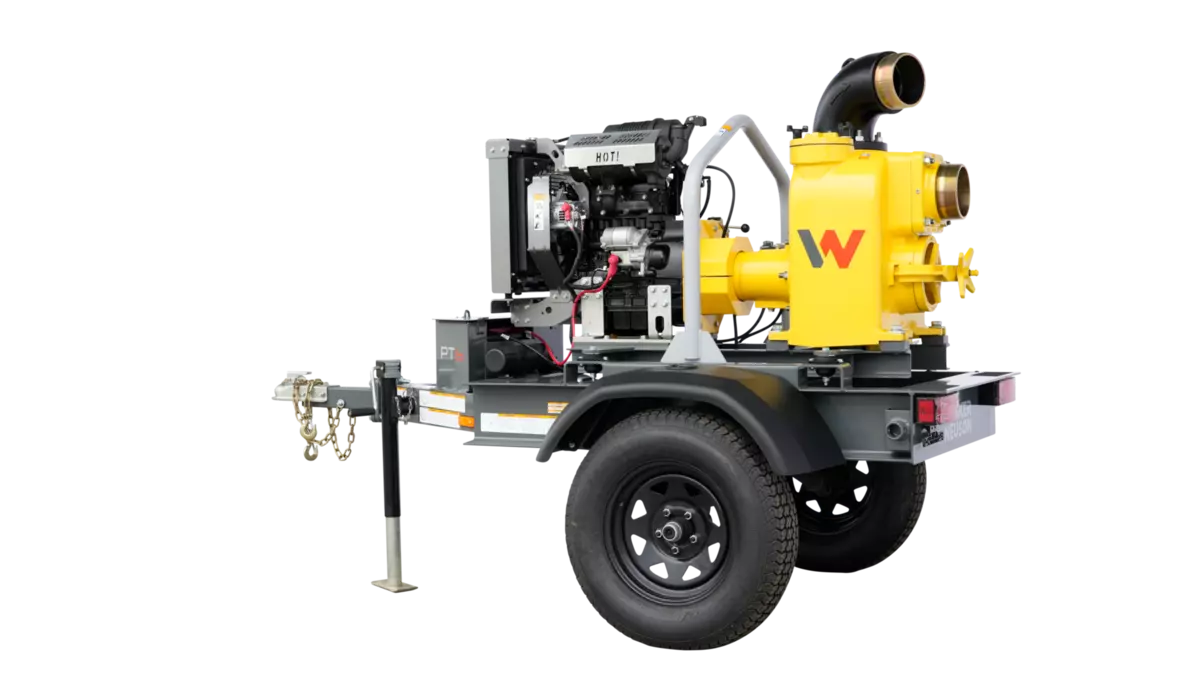

Self-priming Trash Pump PT6
Pumps
Our PTS6 centrifugal pump is ideal for demanding applications: large discharge volume, long running time. Learn more now!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: PT6
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data19 specifications
PT6Y19 specifications
- Cylinder capacity
- 1.267 cm³
- Oil filling max.
- 3.4 l
- Oil filling min.
- 0.4 gal US
- Power rating max.
- 18.4 kW
- Flow rate max.
- 4,304 l/min
- Pump pressure max.
- 2.6 bar
- Solid diameter max.
- 50 mm
- Suction head max.
- 7.5 m
- Delivery height max.
- 27 m
- Length
- 2,155 mm
- Width
- 970 mm
- Height
- 1,210 mm
- Operating weight
- 800 kg

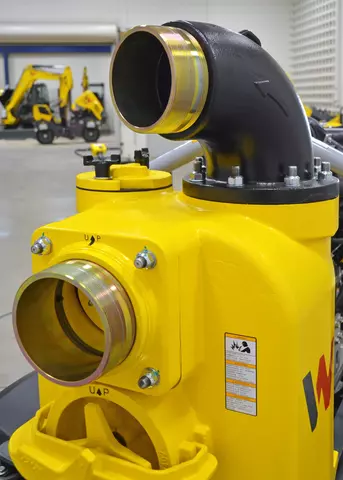

- Intake /Pressure socket dia.
- 152 mm
- Tank capacity
- 90 l
- Power rating max. (23)
- 18.4 kW
- Engine speed 1
- 2,700 1/min
- Fuel consumption at Engine speed 1
- 5 l/h
- Run Time at Engine speed 1
- 18 hrs
