Wacker Neuson

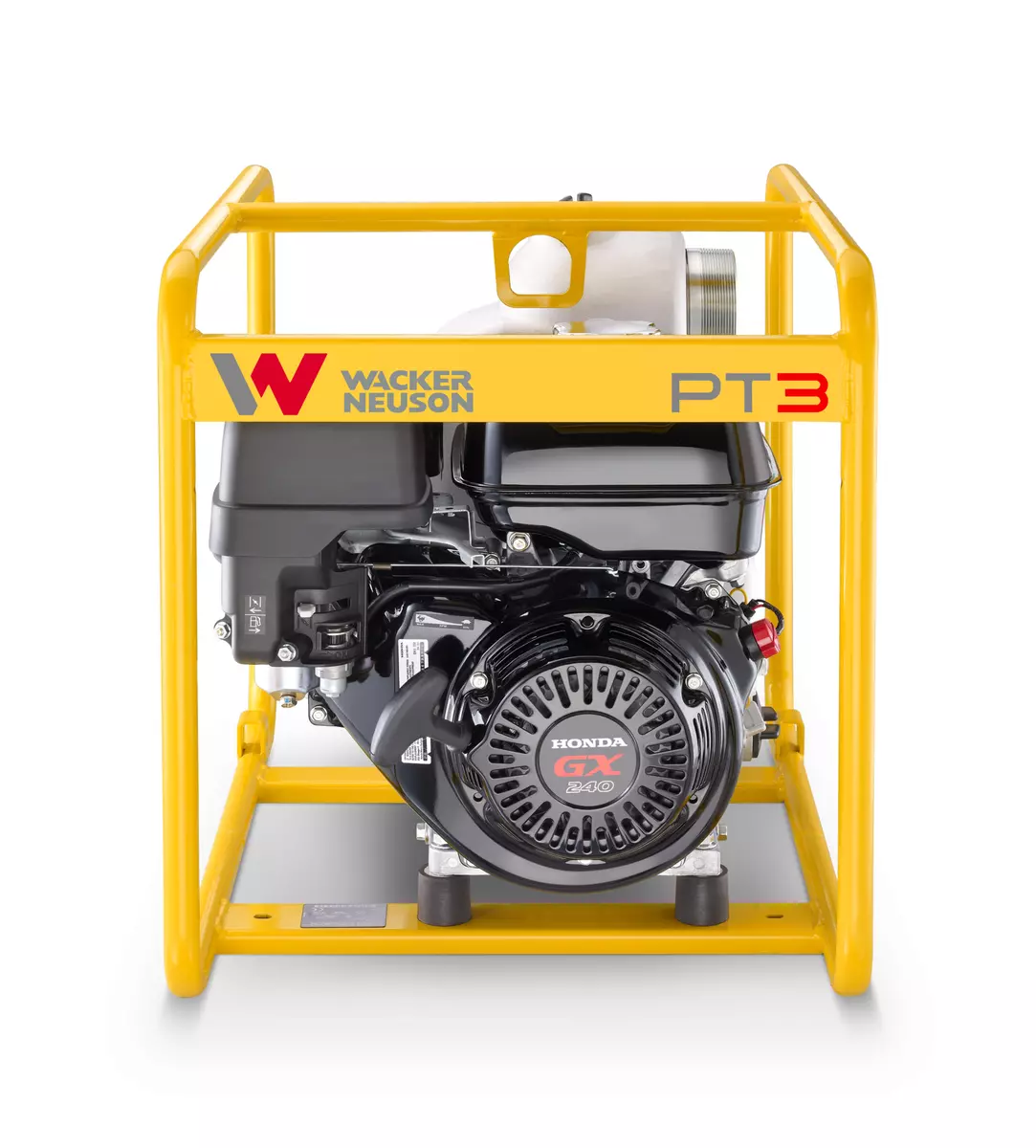

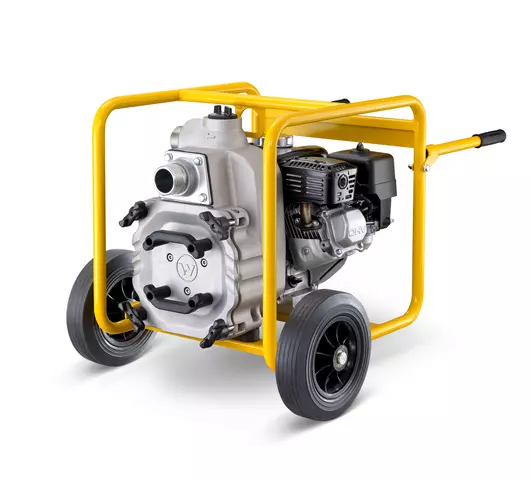

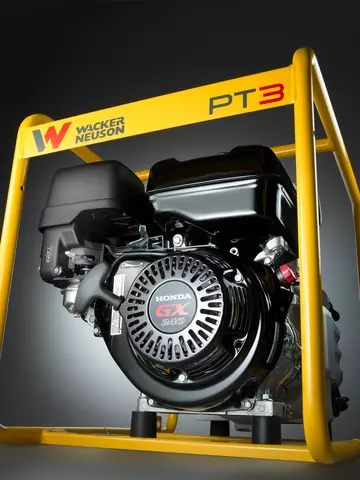

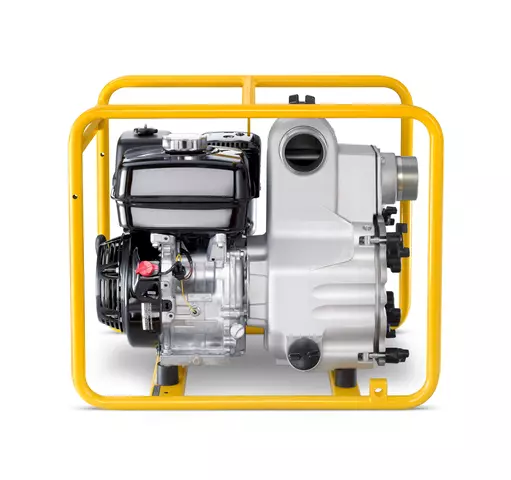

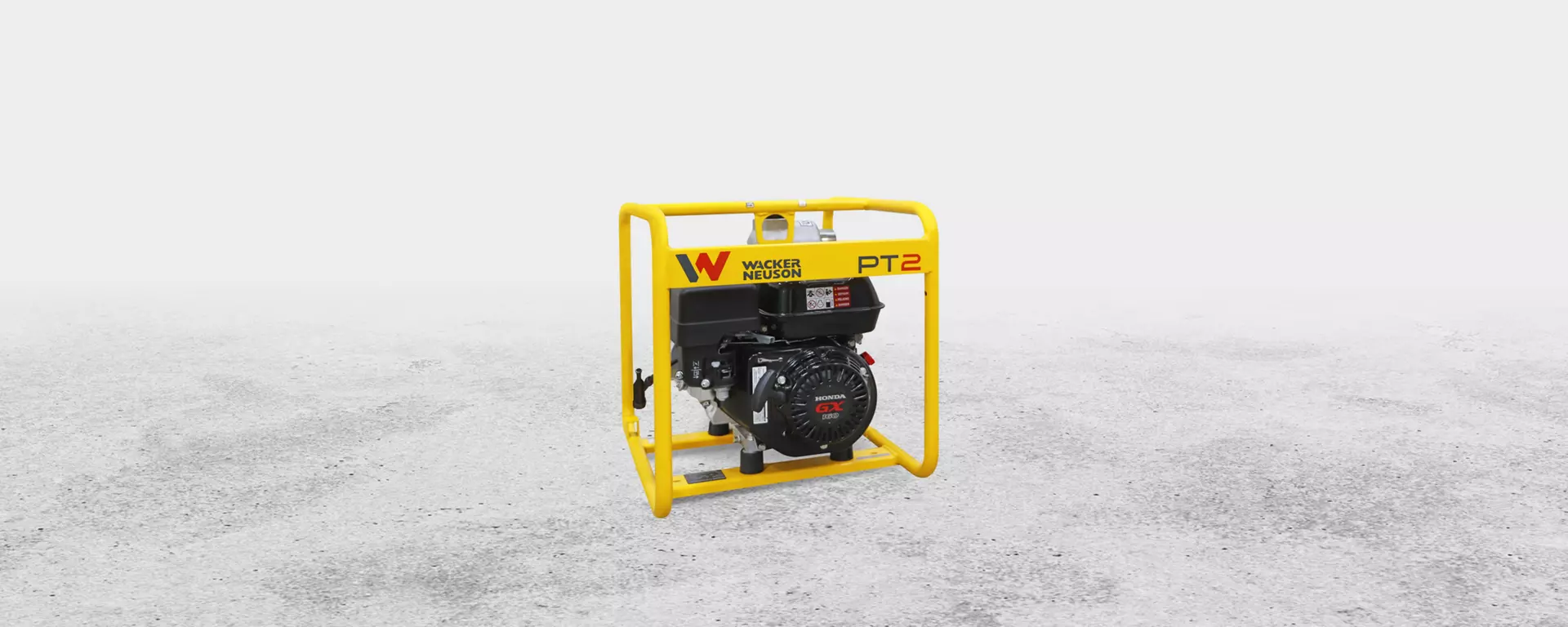

Self-priming Trash Pump PT2A/PT3A
Pumps
Ideal for dewatering tasks: Sturdy Honda engine, high level of wear resistance & easy to transport. Learn more now!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: PT2A-PT3A
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data44 specifications
PT2A22 specifications
- Cylinder capacity
- 163 cm³
- Inclined position max.
- 20 cos φ
- Tank capacity
- 3.1 l
- Oil filling max.
- 0.6 l
- Power rating max.
- 3.6 kW
- Flow rate max.
- 625 l/min
- Pump pressure max.
- 3.2 bar
- Solid diameter max.
- 25 mm
- Suction head max.
- 7.5 m
- Delivery height max.
- 32 m
- Length
- 550 mm
- Width
- 466 mm
- Height
- 501 mm
- Operating weight
- 43 kg
- Intake /Pressure socket dia.
- 50 mm
- Tank capacity (23)
- 3.1 l
- Engine speed 1
- 3,700 1/min
- Fuel consumption at Engine speed 1
- 1.8 l/h
- Run Time at Engine speed 1
- 1.8 hrs
- Length for shipping
- 1,150 mm
- Width for shipping
- 1,020 mm
- Height for shipping
- 2,010 mm
PT3A22 specifications
- Cylinder capacity
- 270 cm³
- Inclined position max.
- 20 cos φ
- Tank capacity
- 5.3 l
- Oil filling max.
- 1.1 l
- Power rating max.
- 5.9 kW
- Flow rate max.
- 1,315 l/min
- Pump pressure max.
- 2.9 bar
- Solid diameter max.
- 38 mm
- Suction head max.
- 7.5 m
- Delivery height max.
- 29.5 m
- Length
- 673 mm
- Width
- 508 mm
- Height
- 571 mm
- Operating weight
- 62 kg
- Intake /Pressure socket dia.
- 75 mm
- Tank capacity (23)
- 5.3 l
- Engine speed 1
- 3,825 1/min
- Fuel consumption at Engine speed 1
- 3 l/h
- Run Time at Engine speed 1
- 2 hrs
- Length for shipping
- 1,150 mm
- Width for shipping
- 750 mm
- Height for shipping
- 1,800 mm
