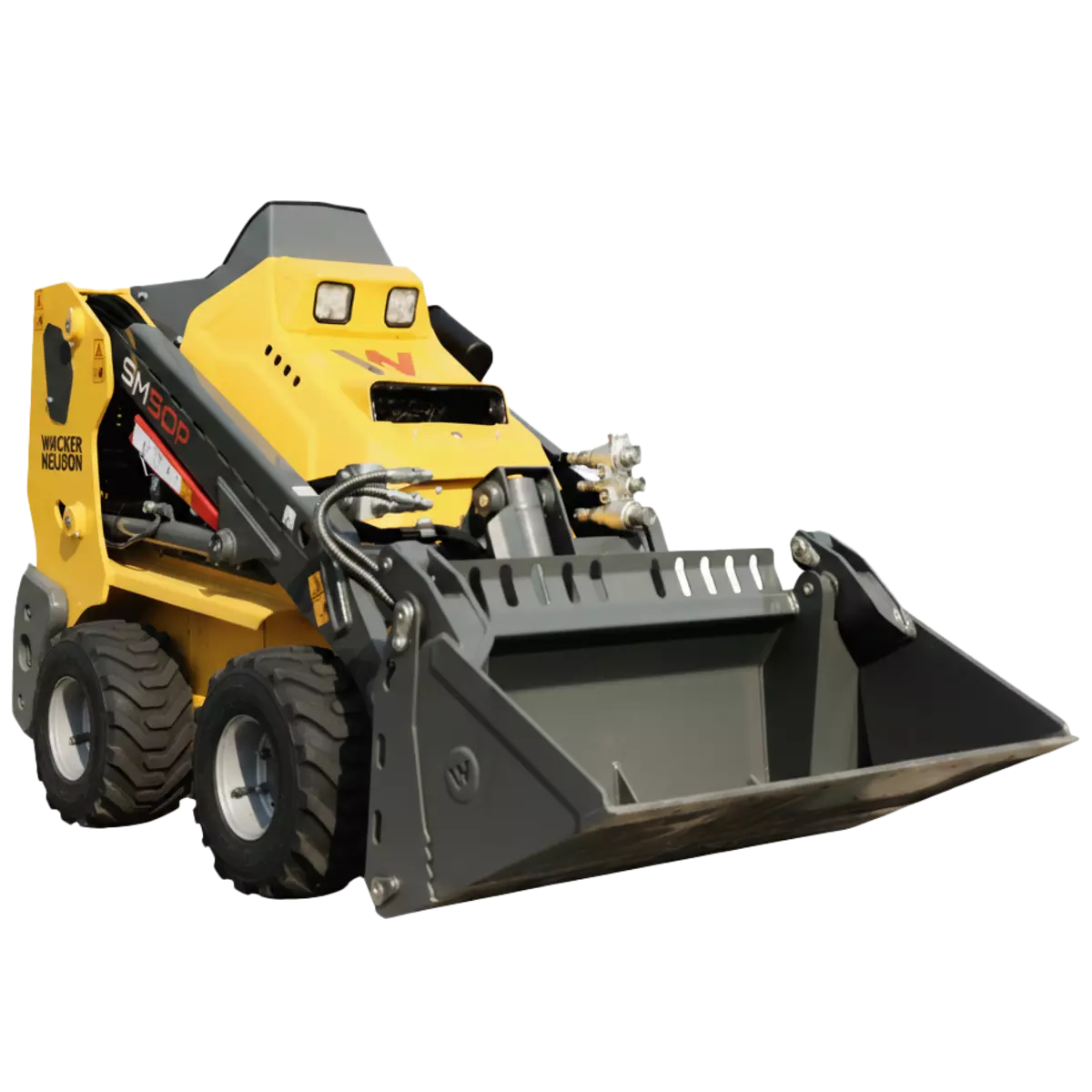

Mini Loader SM50 - achieve more with less effort
Mini Loaders
Want to learn more about our Mini Loader SM50? Click here!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: SM50P
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data31 specifications
SM50P31 specifications
- Travel speed
- 6.3 km/h
- Overall Length without bucket
- 1,920 mm
- Overall Length with Bucket
- 2,501 mm
- Overall width without bucket
- 1,017 mm
- Height
- 1,368 mm
- Bucket Hinge Pin Height
- 1,940 mm
- Maximum bucket roll back at ground
- 25 °
- Bucket roll back at maximum height
- 94 °
- Angle of departure
- 25 °
- Bucket dump height at maximum height
- 2,658 mm
- Bucket dump angle at maximum height
- 37 °
- Operating weight
- 1,131 kg
- Underclearance
- 146 mm
- Dump reach at maximum height
- 667 mm
- Wheelbase
- 800 mm
- Cylinder
- 2
- Cylinder capacity
- 688 cm³
- Power rating max.
- 16.5 kW
- Engine speed (Power max.)
- 3,300 1/min
- Operating power
- 16.5 kW
- Maximum torque
- 48.3 Nm
- Engine type
- Gasoline engine
- Engine Manufacturer
- Honda
- Engine Designation
- GX690RH
- Flow rate
- 60 l/min
- Auxiliary hydraulics relief pressure
- 220 bar
- Fuel Tank capacity
- 24 l
- Tip Load
- 554 kg
- Rated Operating Capacity at 50% Tip Load
- 277 kg
- Rated Operating Capacity at 35% Tip Load
- 194 kg

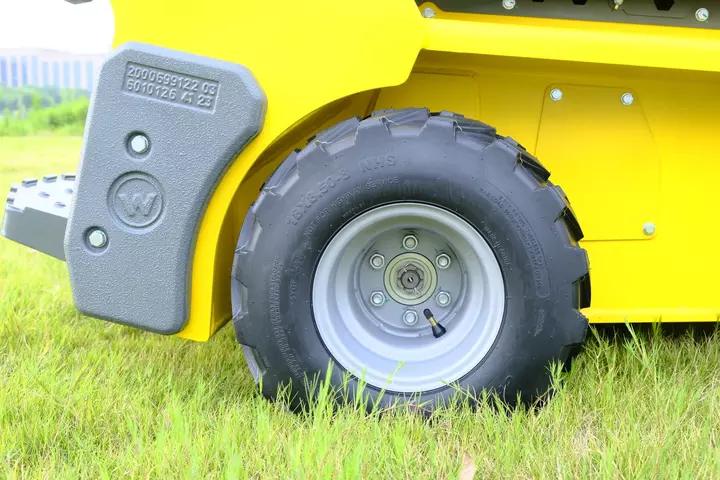

- Tires
- 18 x 8,5 - 8 8PR
