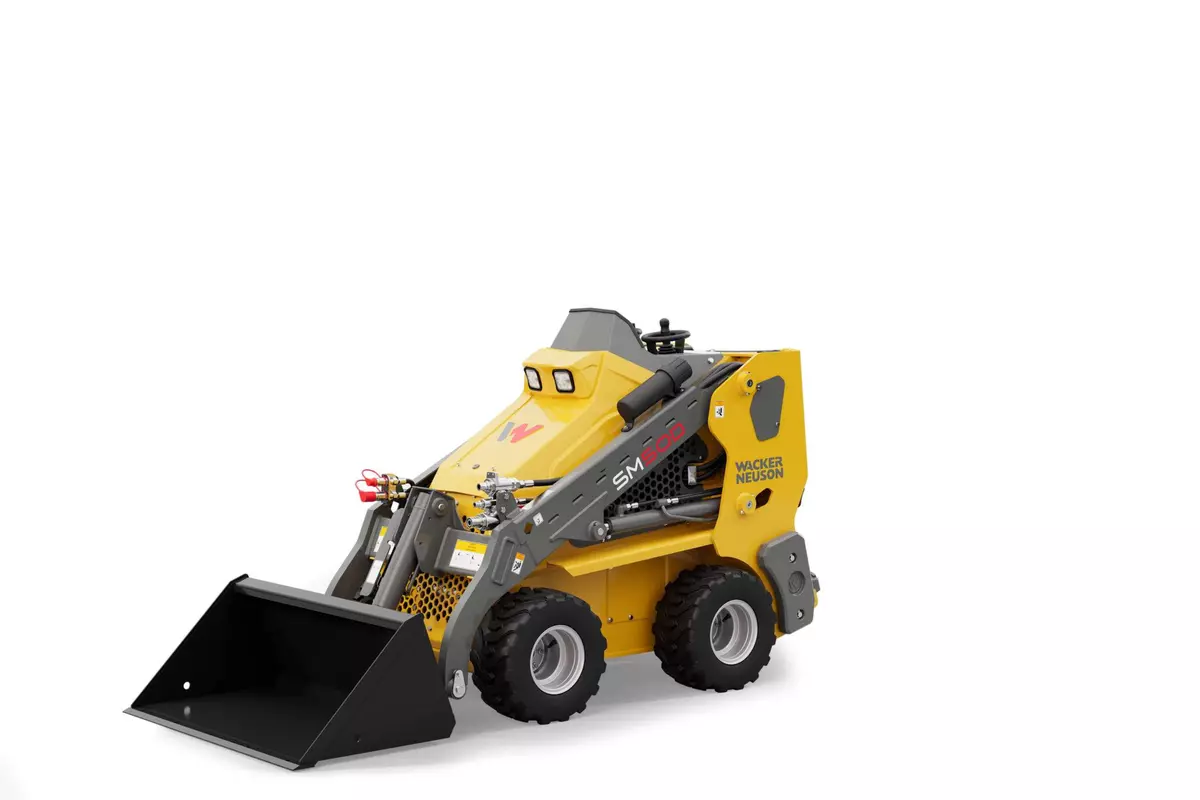

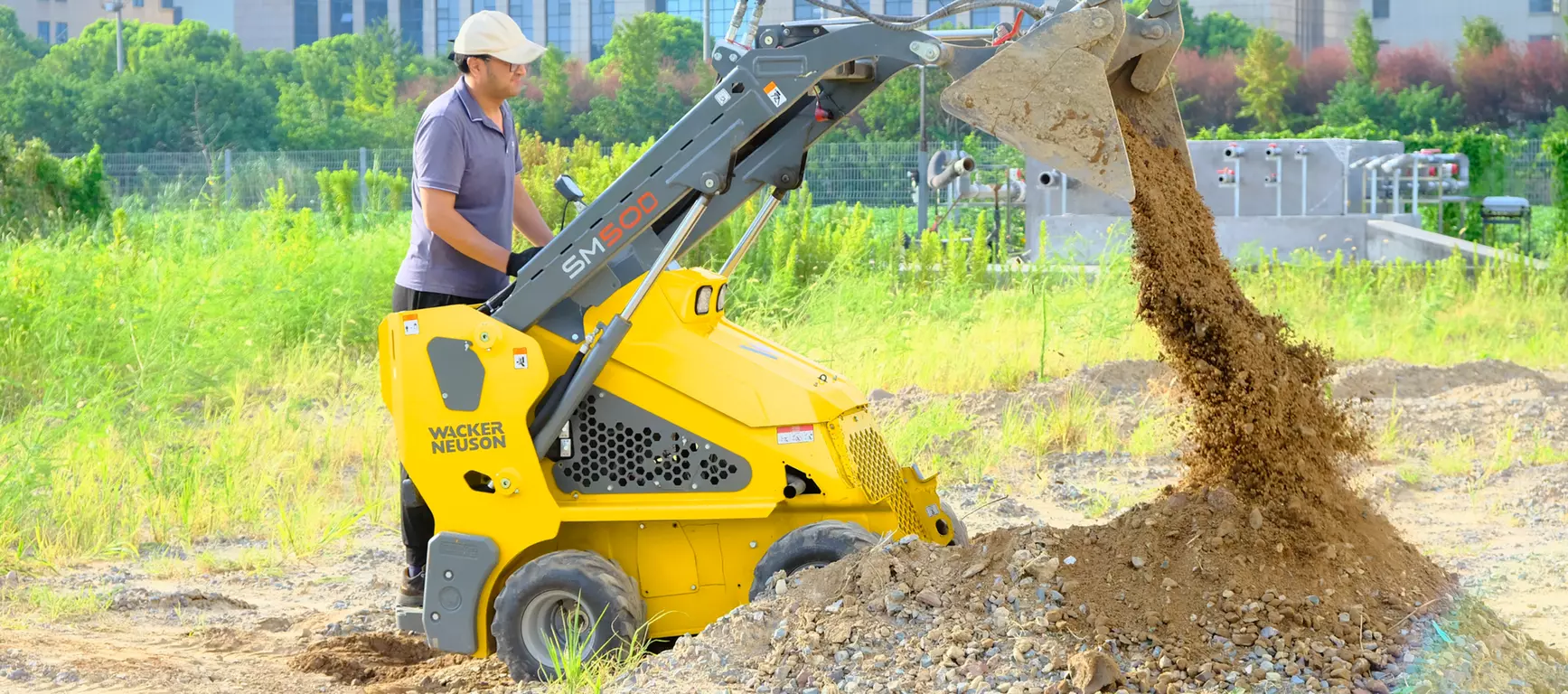

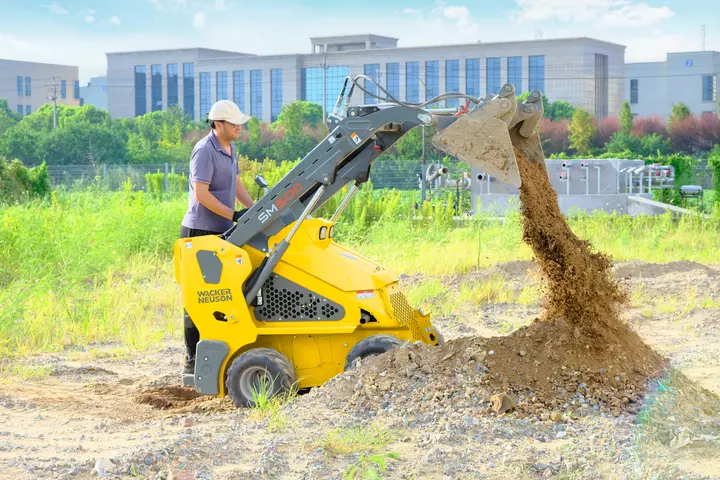

ModelWacker Neuson Mini Loader SM50
Mini Loaders
The Wacker Neuson mini loader provides the perfect partnership of power, pressure and durability for every application. Learn more!
Model / part number: SM50D
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
31 specifications · 1 configurations or components
Technical Data31 details
SM50D31 specifications
- Travel speed
- 6.4 km/h
- Overall Length without bucket
- 1,920 mm
- Overall Length with Bucket
- 2,501 mm
- Overall width without bucket
- 1,017 mm
- Height
- 1,368 mm
- Bucket Hinge Pin Height
- 1,940 mm
- Maximum bucket roll back at ground
- 25 °
- Bucket roll back at maximum height
- 94 °
- Angle of departure
- 25 °
- Bucket dump height at maximum height
- 2,658 mm
- Bucket dump angle at maximum height
- 37 °
- Operating weight
- 1,218 kg
- Underclearance
- 146 mm
- Dump reach at maximum height
- 667 mm
- Wheelbase
- 800 mm
- Cylinder
- 3
- Cylinder capacity
- 1,115 cm³
- Power rating max.
- 15.7 kW
- Engine speed (Power max.)
- 2,500 1/min
- Operating power
- 15.7 kW
- Maximum torque
- 67.4 Nm

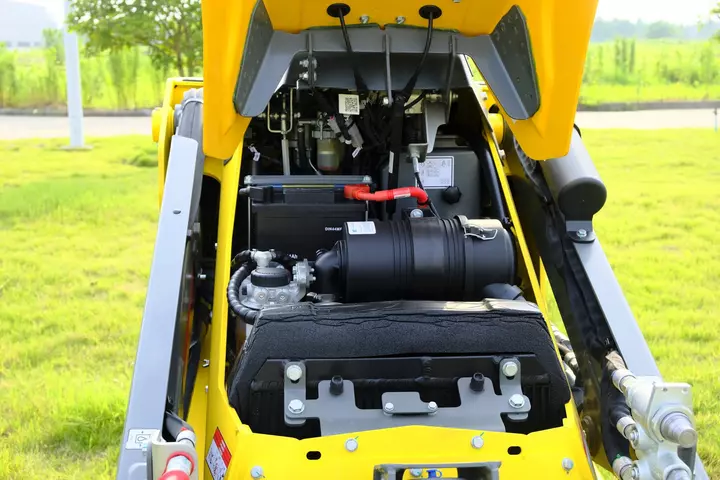

- Engine type
- Diesel engine
- Engine Manufacturer
- Yanmar
- Engine Designation
- 3TNV76
- Flow rate
- 60 l/min

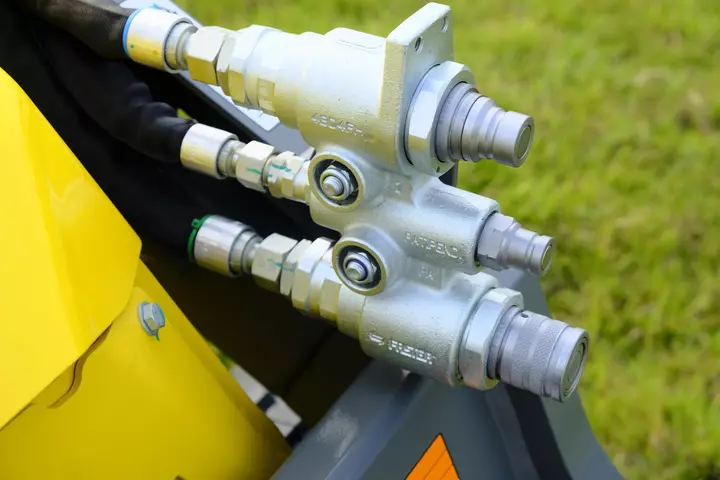

- Auxiliary hydraulics relief pressure
- 220 bar
- Fuel Tank capacity
- 24 l
- Tip Load
- 690 kg
- Rated Operating Capacity at 50% Tip Load
- 345 kg
- Rated Operating Capacity at 35% Tip Load
- 242 kg
- Tires
- 18 x 8,5 - 8 8PR
