Wacker Neuson

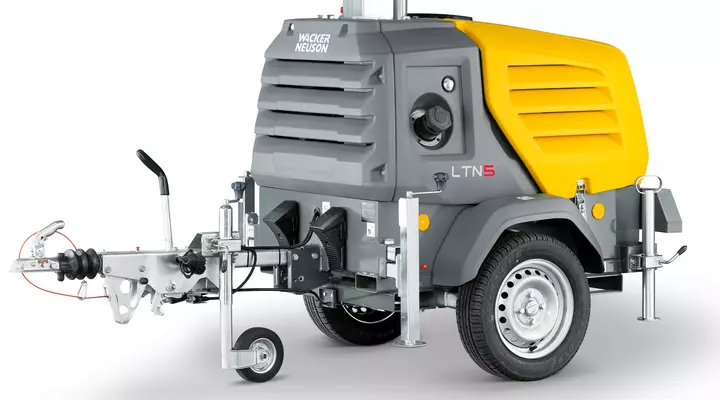

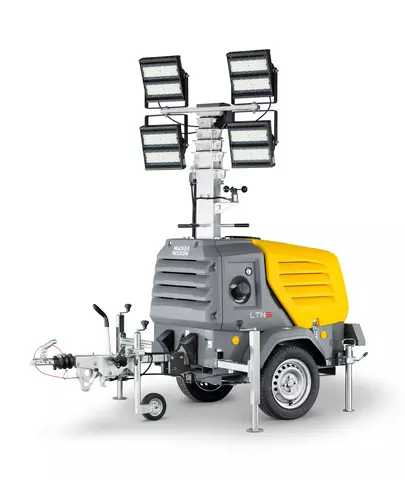

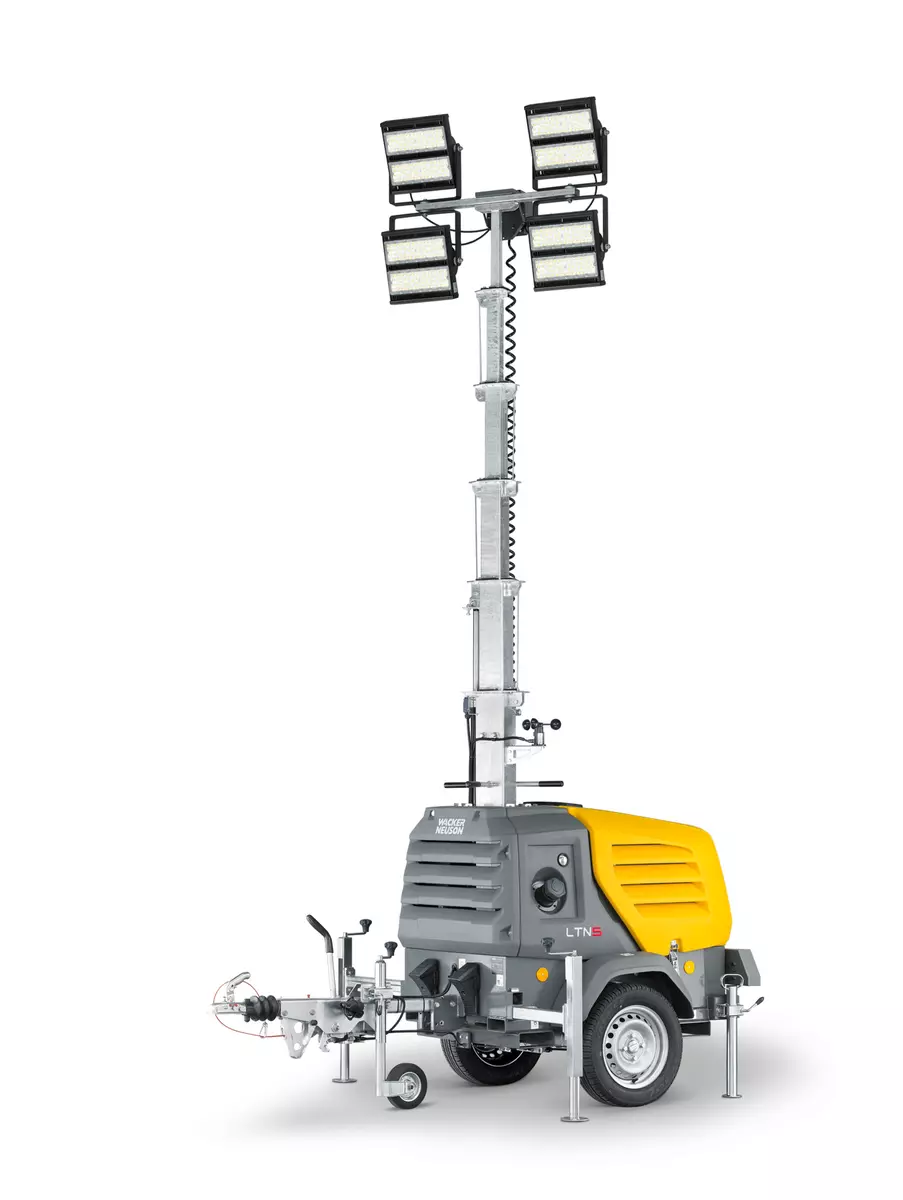

ModelLight Towers with LED lamps LTN5Y
Lighting

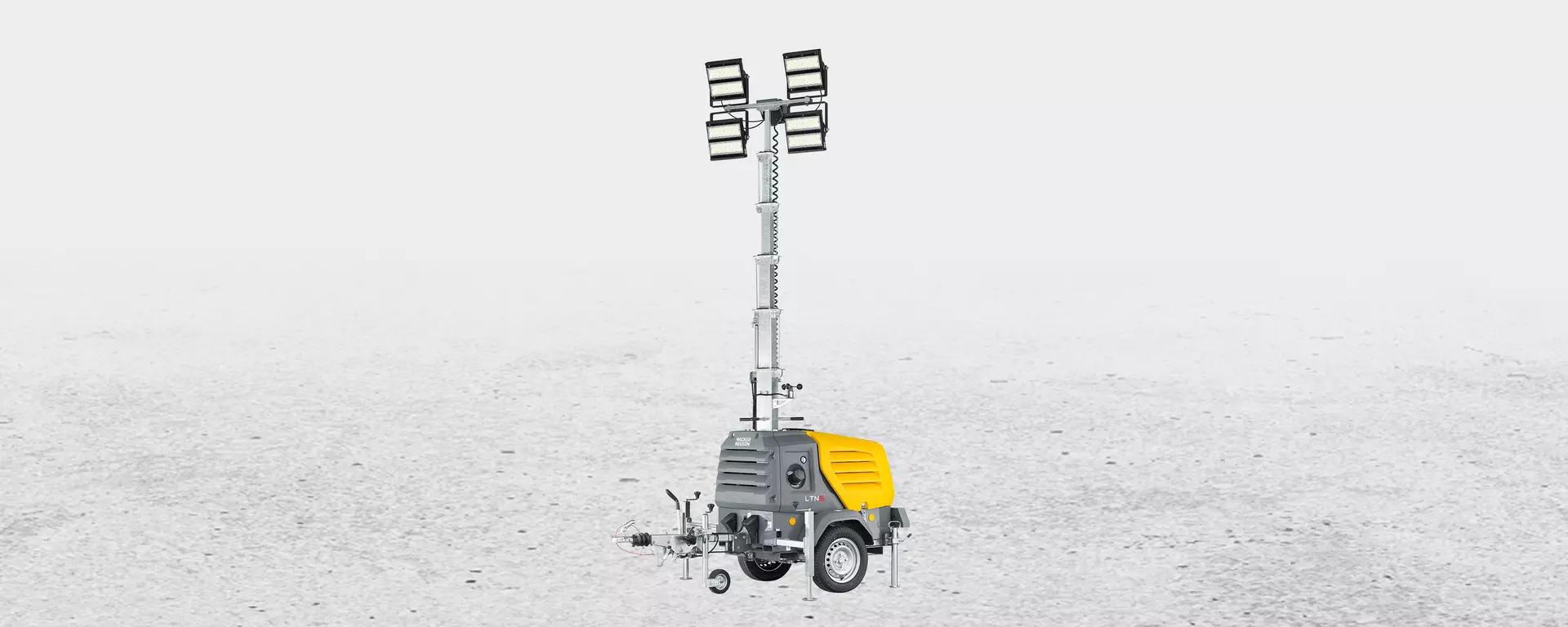

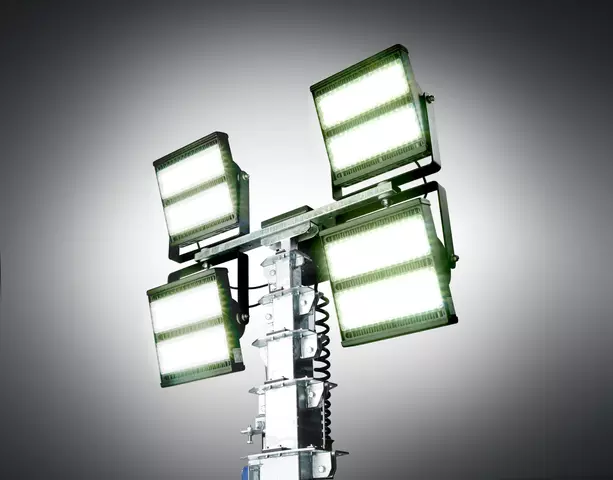

The light tower with LED lamps is ideal for lighting large areas due to its powerful LED panels. The mast can be conveniently raised and lowered at the touch of a button. Get information now!
Model / part number: LTN5Y
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
33 specifications · 1 configurations or components
Technical Data33 details
LTN5Y SA33 specifications
- Output current
- 15.2 A
- Phase
- 1 ~
- Output Nominal power [S]
- 1.9 kVA
- Aggregate continuous power 1~ (COP)
- 3.5 kW
- Length
- 2,930 mm
- Mast rotation
- 350 °

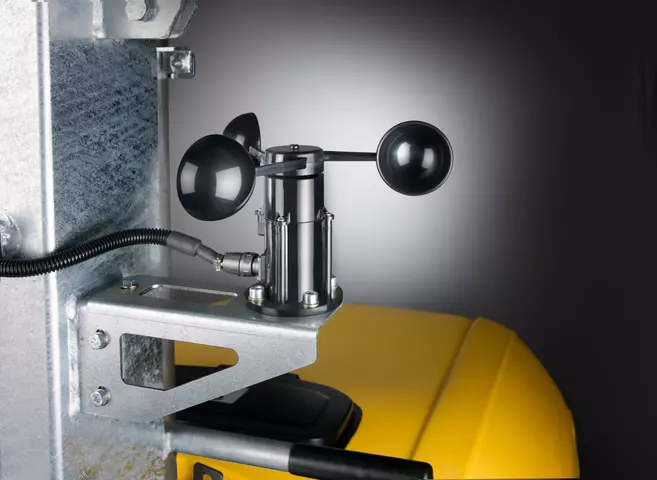

- Wind stability
- 110 km/h
- Width
- 1,600 mm
- Height
- 2,545 mm
- Operating Weight (with Trailer)
- 850 kg
- Operating weight
- 590 kg
- Luminous spot height max.
- 8,200 mm
- Mast height max.
- 8 m
- Output current 1~
- 15.2 A
- Output voltage
- 230 V
- Output frequency
- 50 Hz
- Nominal power
- 3.5 kVA
- Cylinder capacity
- 570 cm³
- Tank capacity
- 105 l
- Power rating max.
- 6.1 kW
- Engine speed (Power max.)
- 2,000 1/min
- Effective power
- 5.9 kW
- Nominal Engine speed
- 1,500 1/min
- CO2 (NRSC)
- 1,172 g/KWh
- Main Circuit Breaker Rating
- 6 A
- Earth Leakage Circuit Breaker
- 10 A
- Bulb power
- 1,600 W
- Fuel consumption (Lights only)
- 0.9 l/h
- Run Time (Lights only)
- 124 hrs
- Luminous flux
- 224,000 lm
- Coverage at 5 lux (0.5 fc)
- 30,200 m²
- Coverage at 20 lux (2 fc)
- 7,700 m²
- Coverage at 50 lux (5 fc)
- 2,700 m²
