Wacker Neuson

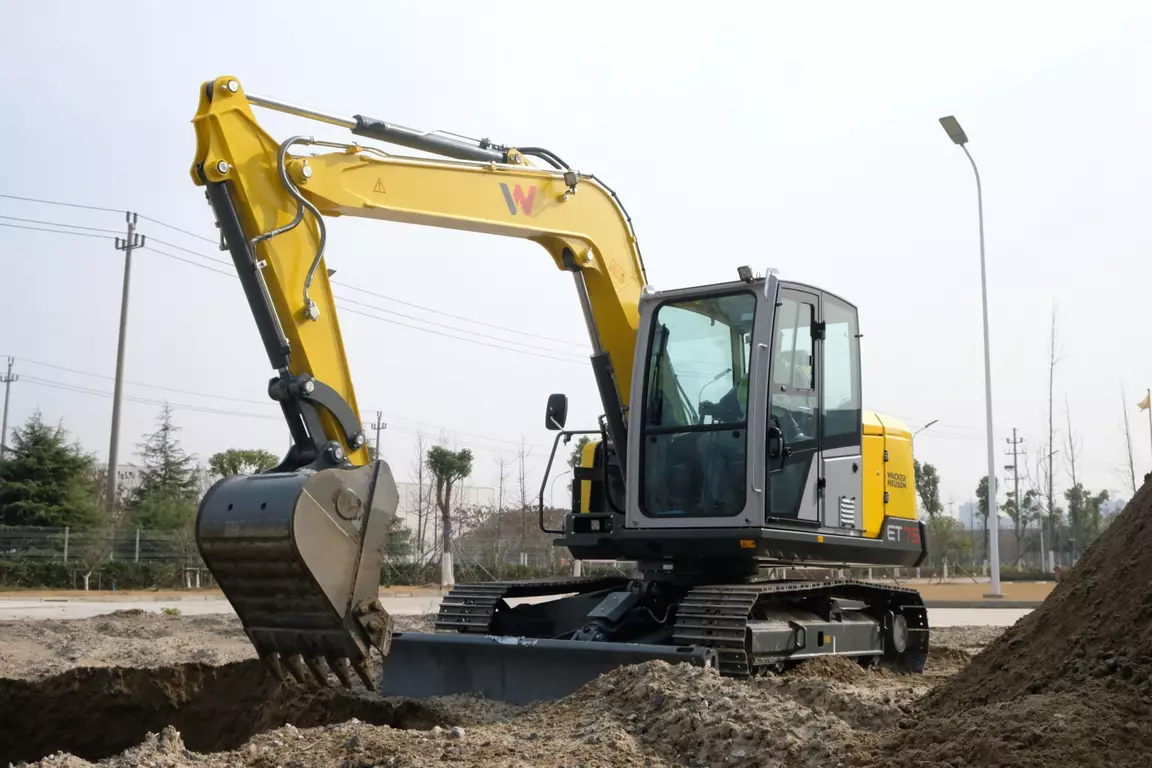

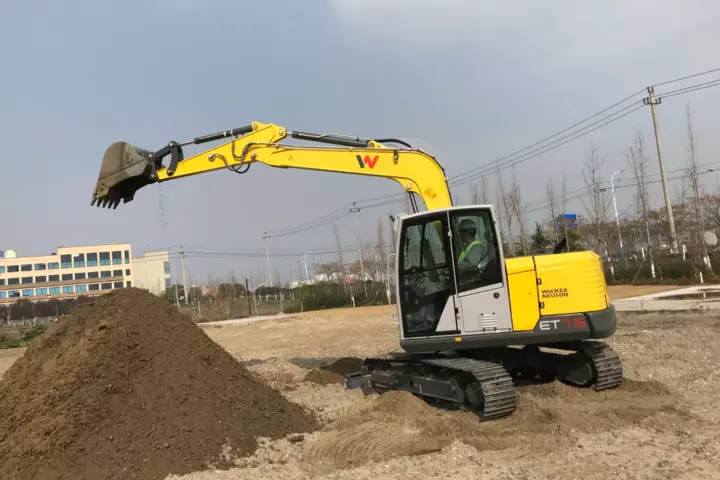

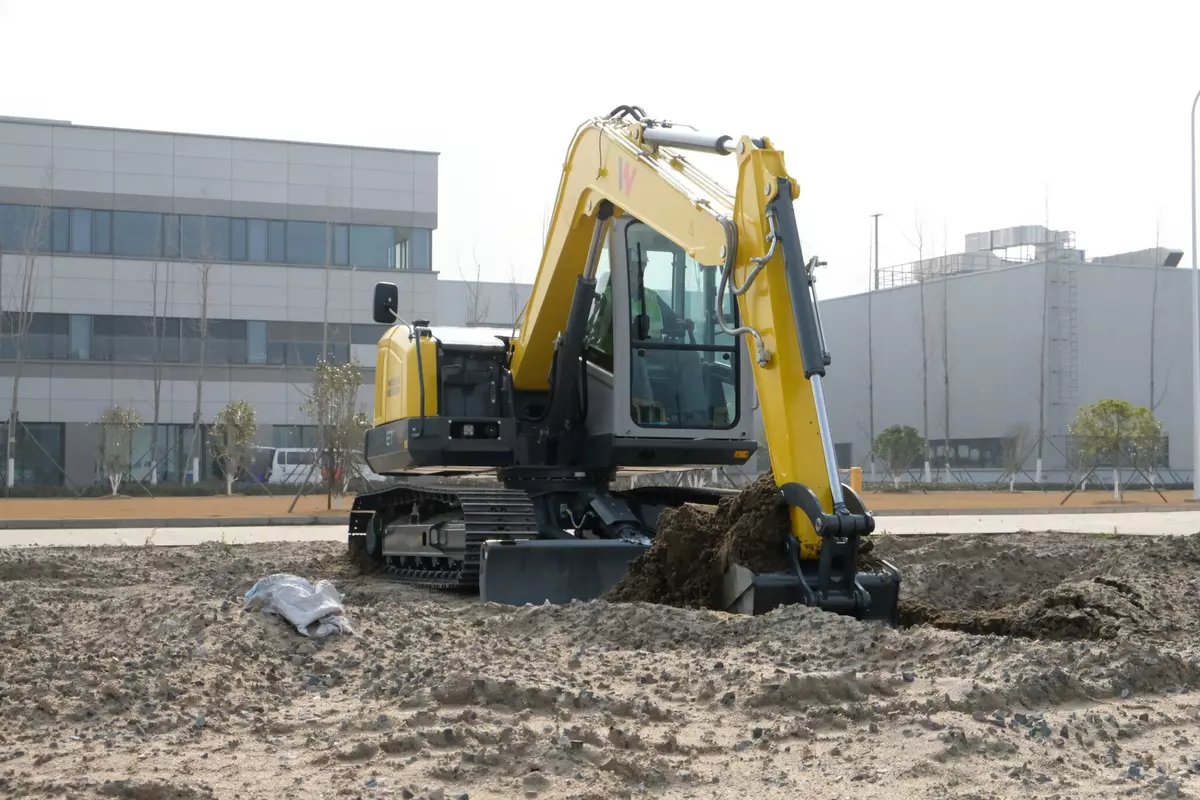

ET75 Tracked conventional excavator
Excavators
The ET75 compact excavator is extremely durable and has a long service life. It is ideally suited for demanding construction site applications. Learn more now!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: ET75
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data43 specifications
ET7543 specifications
- Travel speed stage 1
- 2.5 km/h
- Travel speed stage 2
- 4.8 km/h
- Length
- 6,270 mm
- Operating weight (min. max.)
- 7,300 kg
- Digging depth (max.)
- 4,097 mm
- Width
- 2,252 mm
- Height
- 2,559 mm
- Operating weight
- 7,300 kg
- Cylinder capacity
- 3,054 cm³
- Inclined position max.
- 30 °
- Tank capacity
- 145 l
- Oil filling max.
- 145 l
- Effective power
- 35.9 kW
- Nominal Engine speed
- 2,000 1/min
- Operating power
- 35.9 kW
- Operating Engine speed
- 2,000 1/min
- Starter battery Voltage
- 12 V
- Battery capacity (nom. value)
- 120 Ah

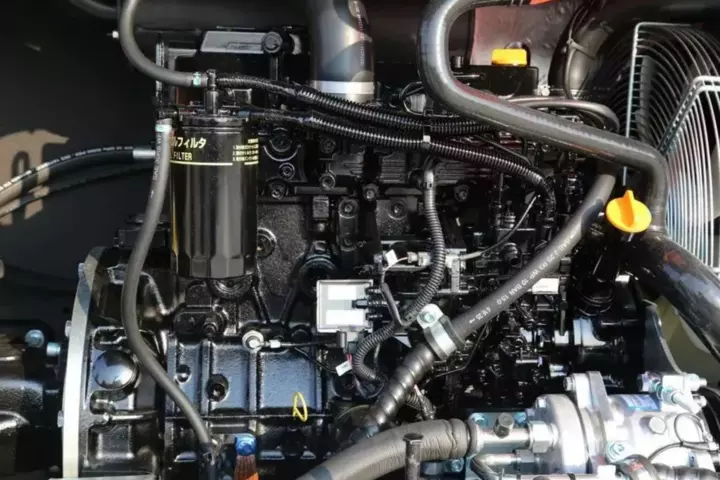

- Engine type
- Diesel engine
- Exhaust gas limit
- 中国四 (China IV)
- Engine Manufacturer
- Yanmar
- Engine Designation
- 4TNV94L-ZCWWN_35,9KW@2000
- Operating pressure hydraulics
- 285 bar
- Flow rate
- 144 l/min
- Tank capacity (Hydraulic)
- 96 l
- Cooling fluid volume
- 10 l
- Hydraulic fluid volume
- 105 l
- Operating pressure
- 285 bar
- Traction drive
- Axialpistonmotor with RGU
- Length for shipping
- 6,270 mm
- Width for shipping
- 2,252 mm
- Height for shipping
- 2,559 mm
- Shipping weight
- 7,115 kg
- Cylinder
- 4
- Cylinder capacity (Yanmar)
- 3,054 cm³
- Effective power (Yanmar)
- 35.9 kW
- Nominal Engine speed (Yanmar)
- 2,000 1/min
- Maximum torque
- 143.8 lb/ft
- Stroke
- 110 mm
- Bore
- 94 mm
- Engine type (Yanmar)
- Diesel engine
- Fuel
- Diesel EN 590
- Engine Manufacturer (Yanmar)
- Yanmar
