Wacker Neuson

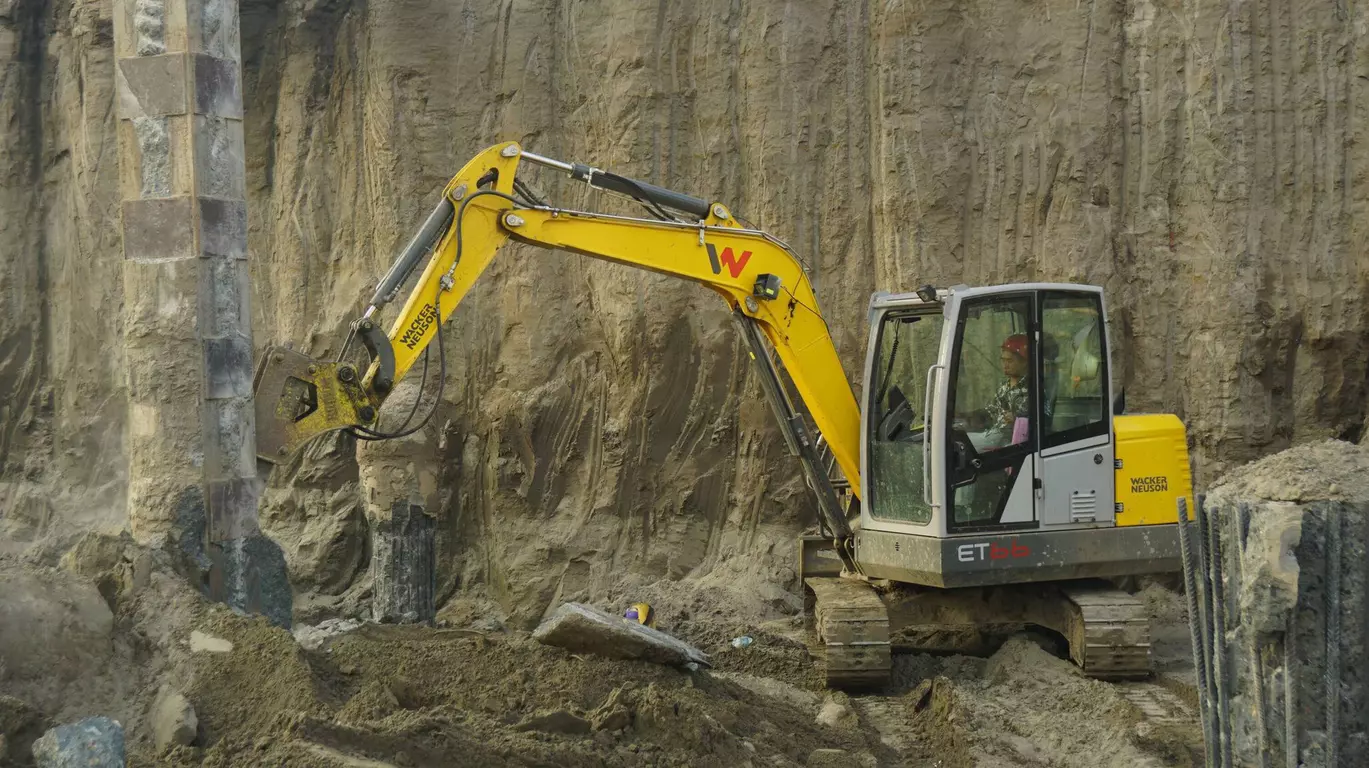

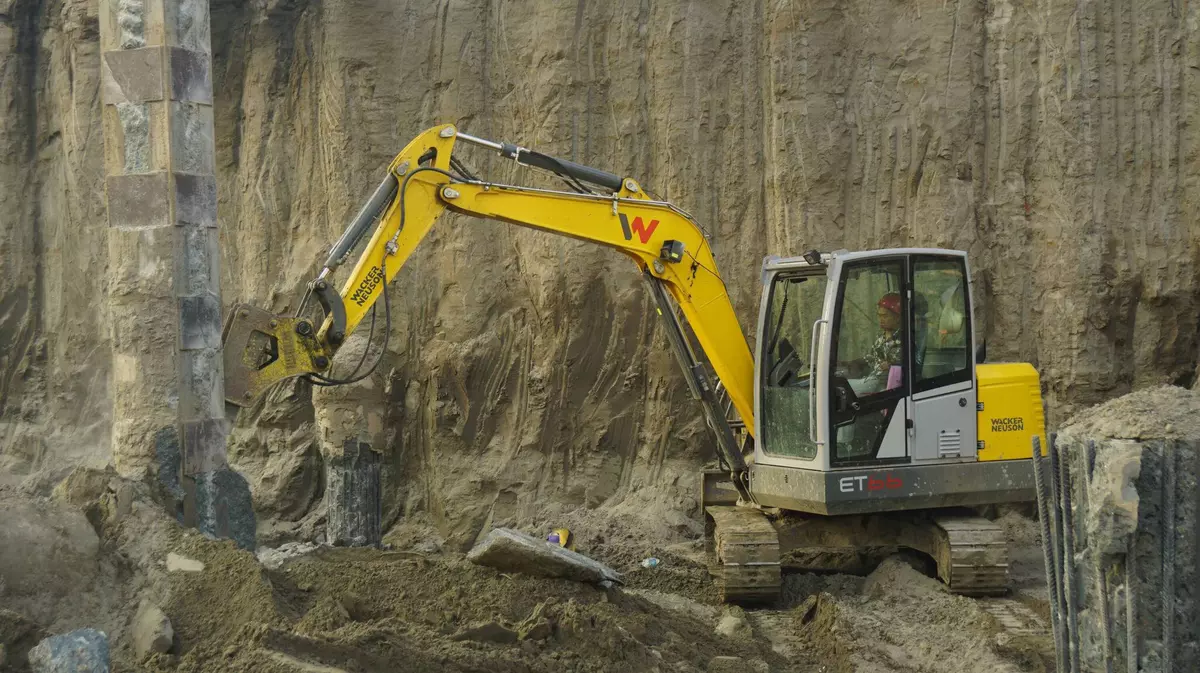

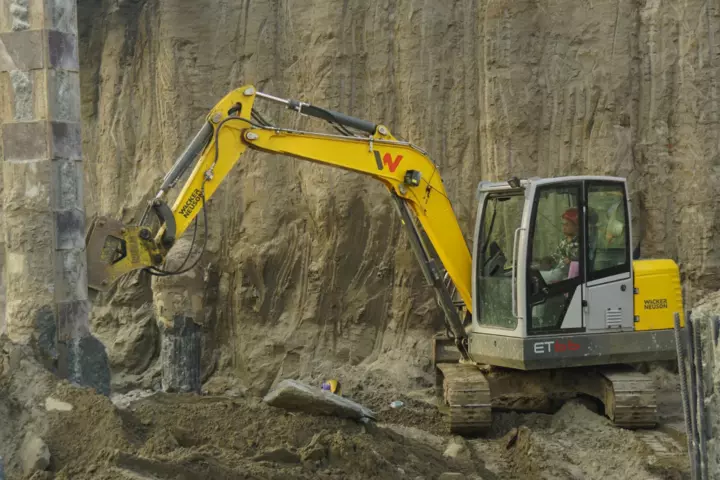

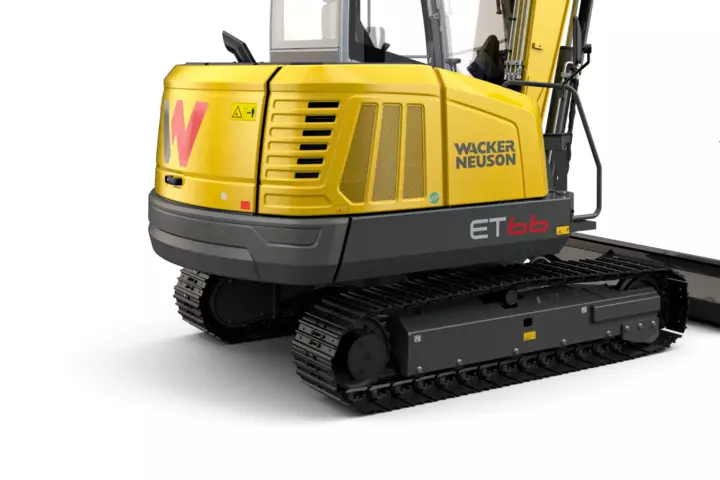

ET66 Tracked conventional excavator
Excavators
A perfect combination of economic efficiency, power and durability, the ET66 excavator is the ideal partner for your construction site.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: ET66
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data30 specifications
ET6630 specifications
- Travel speed stage 1
- 2.6 km/h
- Travel speed stage 2
- 4.5 km/h
- Length
- 6,105 mm
- Operating weight (min. max.)
- 6,030 kg
- Digging depth (max.)
- 3,877 mm
- Width
- 2,104 mm
- Height
- 2,558 mm
- Operating weight
- 6,030 kg
- Cylinder capacity
- 3,054 cm³
- Inclined position max.
- 30 °
- Tank capacity
- 109 l
- Oil filling max.
- 109 l
- Effective power
- 35.9 kW
- Nominal Engine speed
- 2,000 1/min
- Operating power
- 35.9 kW
- Operating Engine speed
- 2,000 1/min
- Starter battery Voltage
- 12 V
- Battery capacity (nom. value)
- 120 Ah

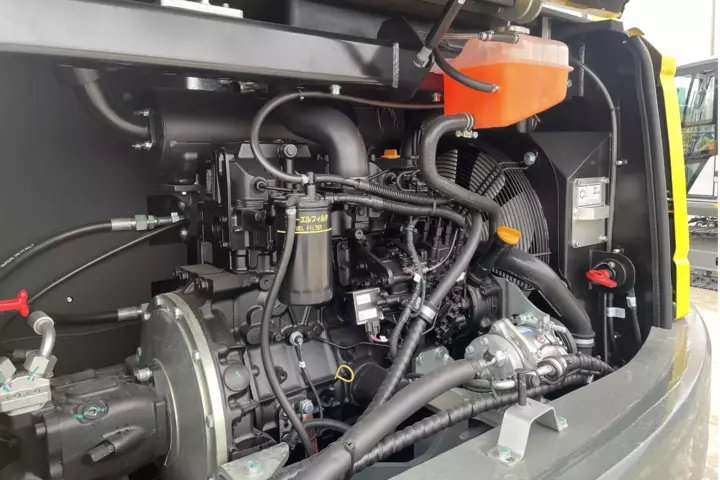

- Engine type
- Diesel engine
- Exhaust gas limit
- 中国四 (China IV)
- Engine Manufacturer
- Yanmar
- Engine Designation
- 4TNV94L-ZCWWN1
- Cooling fluid volume
- 10 l
- Hydraulic fluid volume
- 100 l
- Operating pressure
- 250 bar
- Traction drive
- Axialpistonmotor with RGU
- Length for shipping
- 6,105 mm
- Width for shipping
- 2,104 mm
- Height for shipping
- 2,558 mm
- Shipping weight
- 5,875 kg
