Wacker Neuson

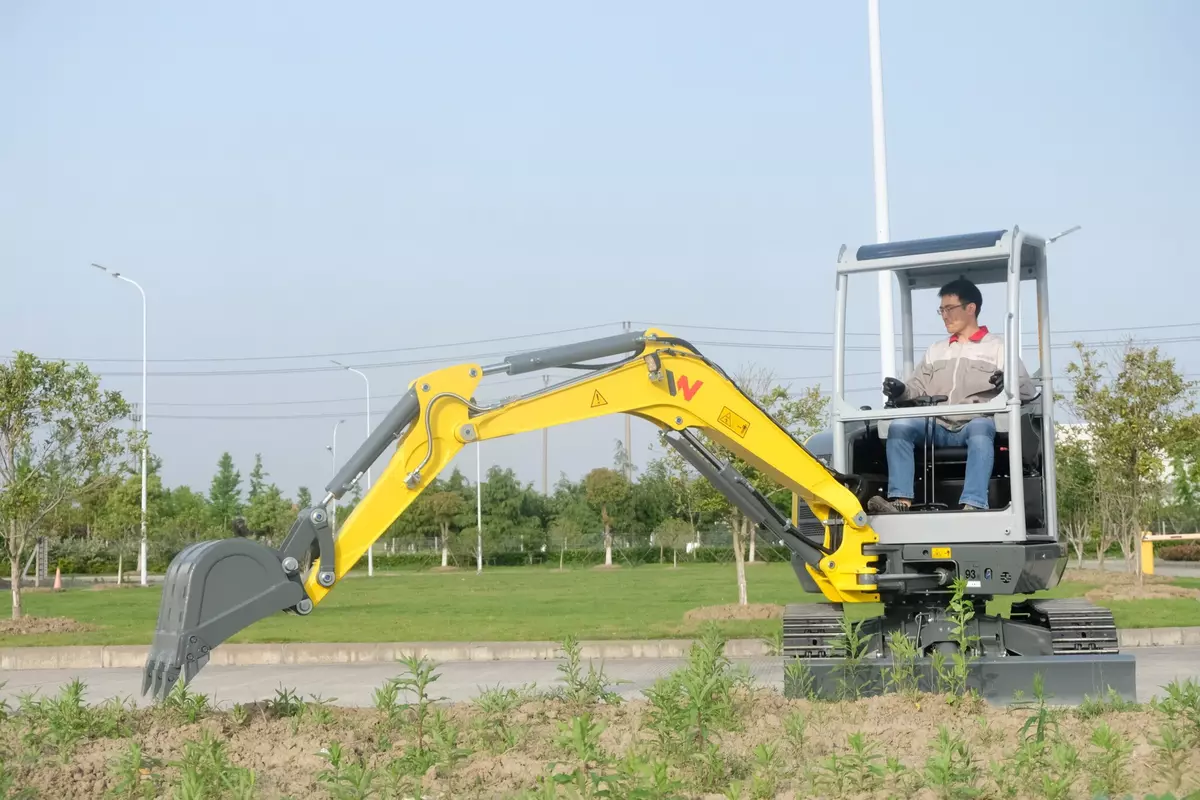

EZ26 Tracked Zero Tail excavator
Excavators
The EZ26 tracked excavator benefits from modern design, a compact footprint, efficient construction and the highest operating comfort. It can easily be transported by trailer. Know more.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: EZ28
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data29 specifications
EZ2829 specifications
- Travel speed
- 2.1 km/h
- Length
- 4,290 mm
- Operating weight (min. max.)
- 2,571 - 3,513 kg
- Digging depth (max.)
- 2,744 mm
- Width
- 1,570 mm
- Height
- 2,414 mm
- Cylinder capacity
- 1,116 cm³
- Tank capacity
- 36 l
- Effective power
- 15.8 kW
- Nominal Engine speed
- 2,500 1/min
- Starter battery Voltage
- 12 V
- Engine type
- Diesel engine
- Engine Manufacturer
- Yanmar
- Operating pressure hydraulics
- 225 bar
- Cooling fluid volume
- 4.5 l
- Hydraulic fluid volume
- 30 l
- Shipping weight
- 2,470 kg
- Traction drive
- Axialpistonmotor with RGU
- Cylinder capacity (Yanmar 3 TNV76 XNSV EU Stage V)
- 1,116 cm³
- Effective power (Yanmar 3 TNV76 XNSV EU Stage V)
- 15.8 kW
- Nominal Engine speed (Yanmar 3 TNV76 XNSV EU Stage V)
- 2,500 1/min
- Maximum torque
- 66.1 Nm
- Stroke
- 82 mm
- Bore
- 76 mm
- Engine type (Yanmar 3 TNV76 XNSV EU Stage V)
- Diesel engine
- Fuel
- Diesel EN 590
- Exhaust gas limit
- EU Stage V
- Engine Manufacturer (Yanmar 3 TNV76 XNSV EU Stage V)
- Yanmar
- Engine Designation
- 3TNV76-XNSV
