Wacker Neuson

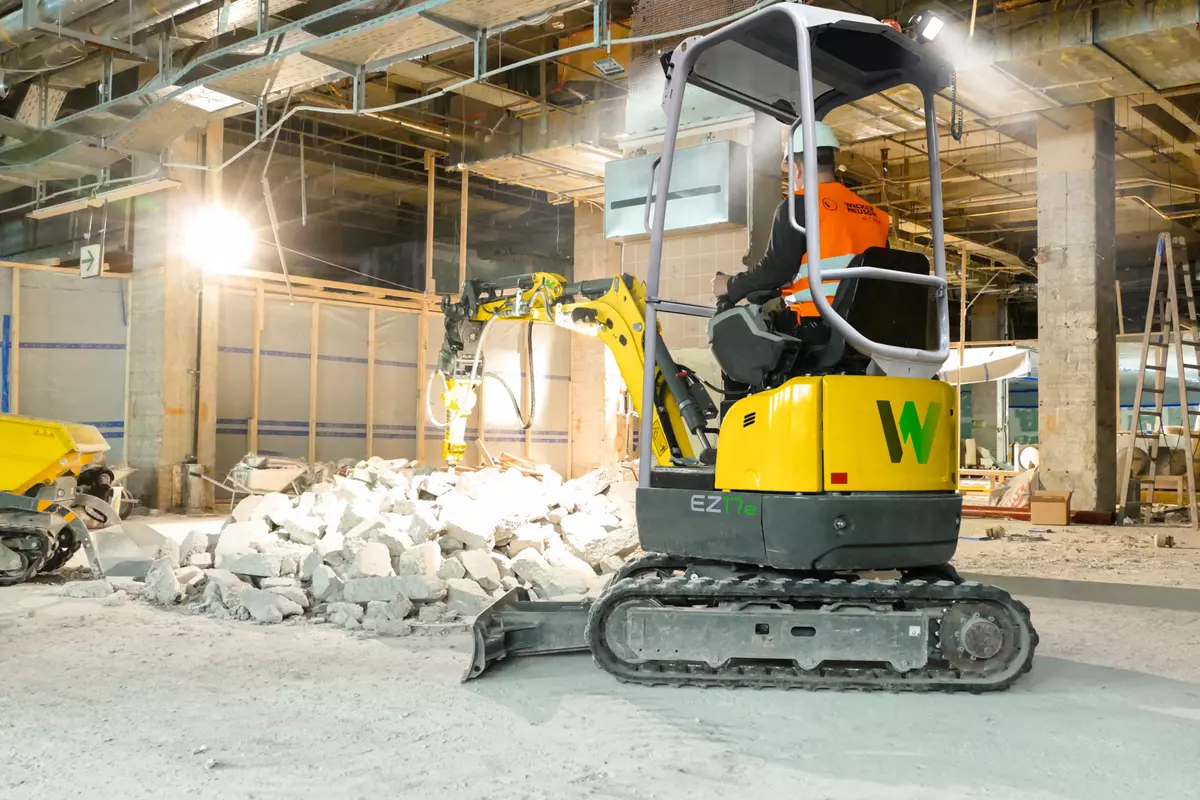

ModelEZ17e Zero Tail Tracked Excavator
Excavators

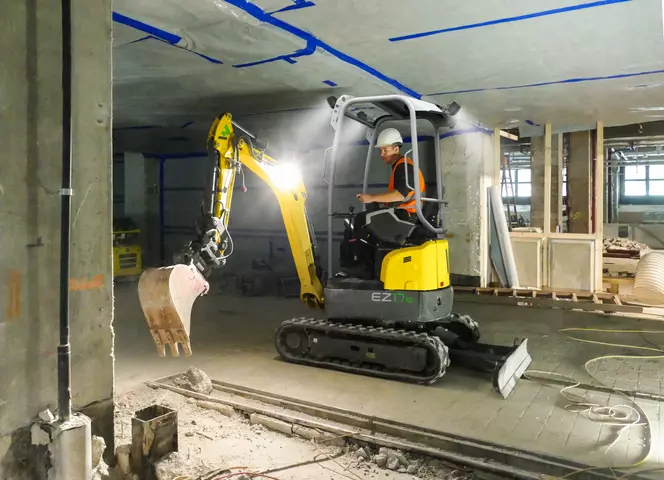

The first fully electric zero tail tracked excavator EZ17e with no rear projection. Perfect for indoor applications and areas where exhaust emissions and noise are restricted. Get more information!
Model / part number: EZ17E
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
26 specifications · 1 configurations or components
Technical Data26 details
EZ17E26 specifications
- Travel speed
- 4.5 km/h
- Breakout force
- 20.5 kN
- Tearout force
- 9.1 kN
- Length
- 3,584 mm
- Operating weight (min. max.)
- 1,797 - 2,151 kg
- Digging depth (max.)
- 2,483 mm
- Width
- 980 mm
- Height
- 2,365 mm
- Nominal power
- 16.5 kW
- Nominal current
- 430 A
- Nominal voltage
- 48 V
- Battery capacity (nom. value)
- 23.4 kWh
- Battery voltage class
- 48 V
- Battery capacity
- 23 kWh

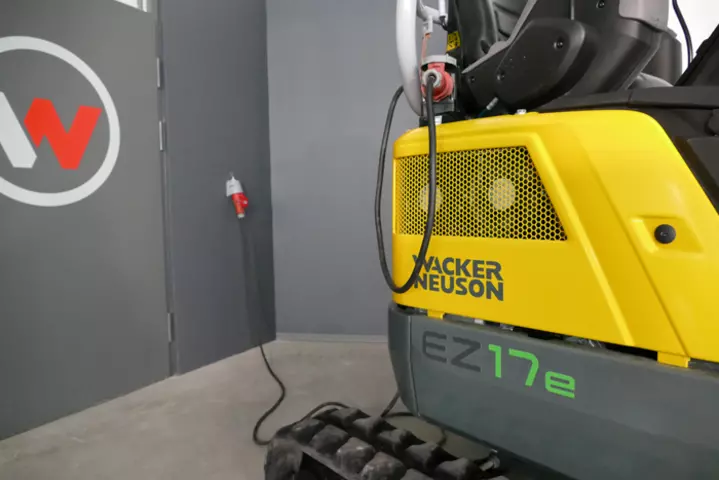

- On board charging power (max.)
- 5.8 kW
- Charging time (0 100%)*
- 4.7 - 11 h
- Charging time (20 80%)*
- 2.4 - 5.7 h
- Run time up to**
- 5.8 h
- Type of battery
- Li-Ion
- Battery technology
- Lithium-ion
- Operating pressure hydraulics
- 240 bar
- Flow rate max.
- 39 l/min
- Operating pressure slewing gear
- 130 bar
- Hydraulicpump
- Variable displacement pump
- Hydraulic fluid volume
- 23.6 l
- Shipping weight
- 1,681 - 2,036 kg
