Wacker Neuson

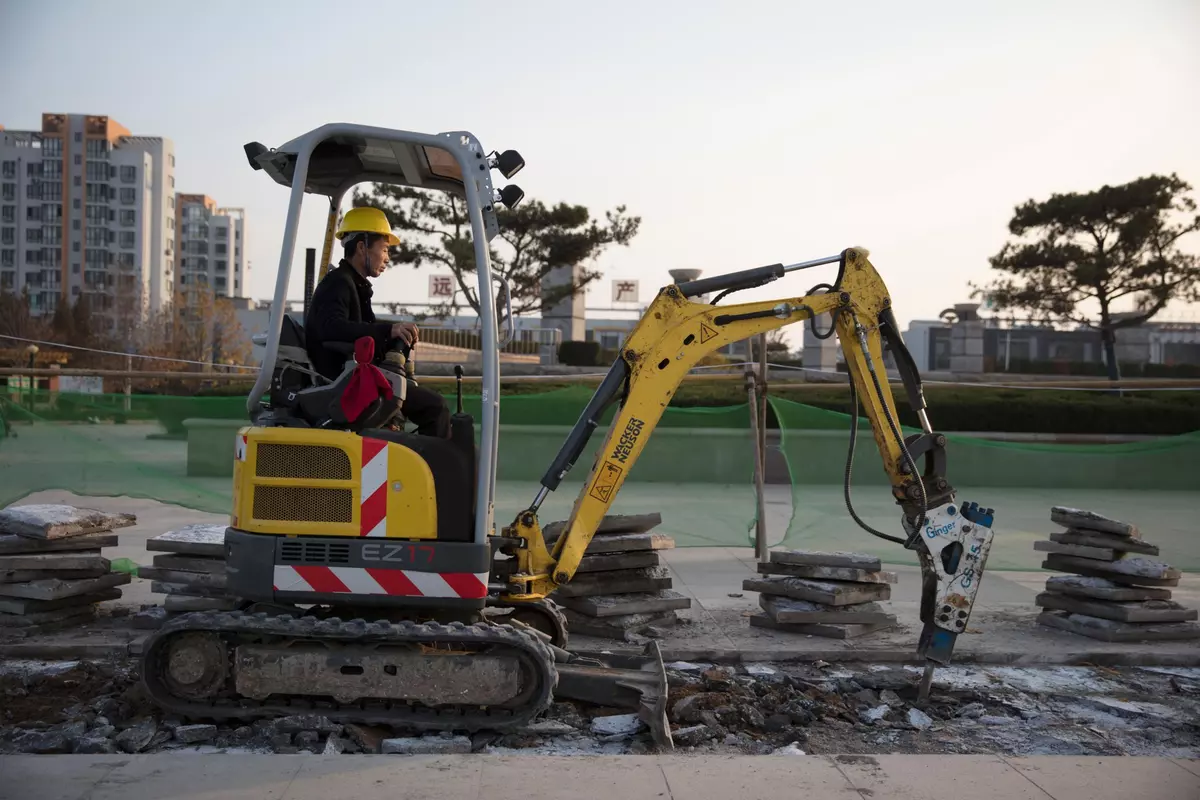

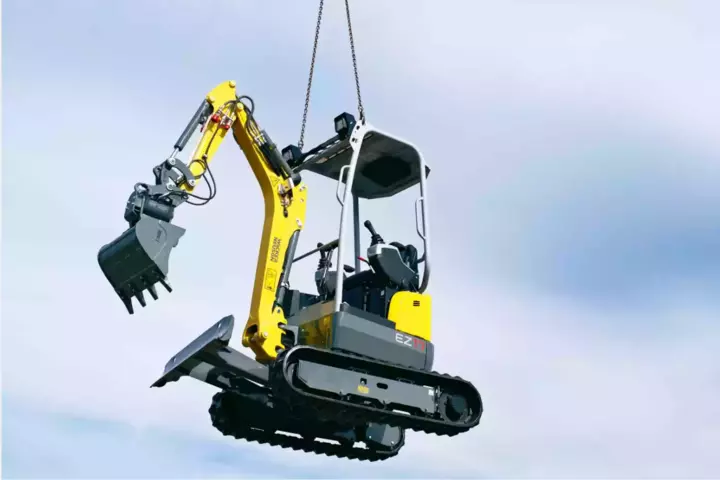

EZ17 Tracked Zero Tail excavator
Excavators
The EZ17 is the most powerful zero tail compact excavator in its class. See for yourself.
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: EZ17
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data36 specifications
EZ1736 specifications
- Travel speed stage 1
- 2.6 km/h
- Travel speed stage 2
- 4.8 km/h
- Length
- 3,585 mm
- Operating weight (min. max.)
- 1,784 - 1,950 kg
- Digging depth (max.)
- 2,330 mm
- Width
- 990 mm
- Height
- 2,360 mm
- Cylinder
- 3
- Cylinder capacity
- 1,116 cm³
- Tank capacity
- 22 l
- Effective power
- 13.8 kW
- Starter battery Voltage
- 12 µg/l
- Battery capacity (nom. value)
- 44 yd³
- Engine type
- Diesel engine
- Engine Manufacturer
- Yanmar
- Engine Designation
- 3TNV76-XNSV
- Operating pressure hydraulics
- 240 bar
- Flow rate
- 40 l/min
- Tank capacity (Hydraulic)
- 15 l
- Hydraulic fluid volume
- 21 l
- Operating pressure
- 240 bar
- Traction drive
- Axialpistonmotor with RGU
- Length for shipping
- 3,585 mm
- Width for shipping
- 990 mm
- Height for shipping
- 2,360 mm
- Shipping weight
- 1,649 kg
- Cylinder (Yanmar)
- 3
- Cylinder capacity (Yanmar)
- 1,116 cm³
- Effective power (Yanmar)
- 13.8 kW
- Nominal Engine speed
- 2,200 1/min
- Maximum torque
- 67.1 Nm
- Stroke
- 82 mm
- Bore
- 76 mm
- Engine type (Yanmar)
- Diesel engine
- Fuel
- Diesel EN 590
- Engine Manufacturer (Yanmar)
- Yanmar
