Wacker Neuson

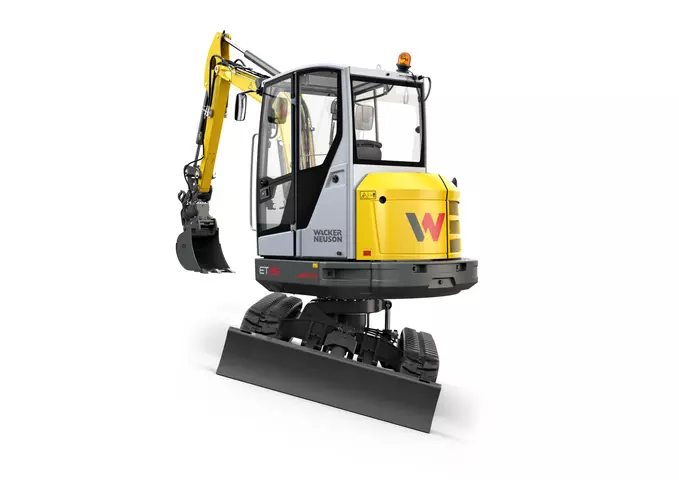

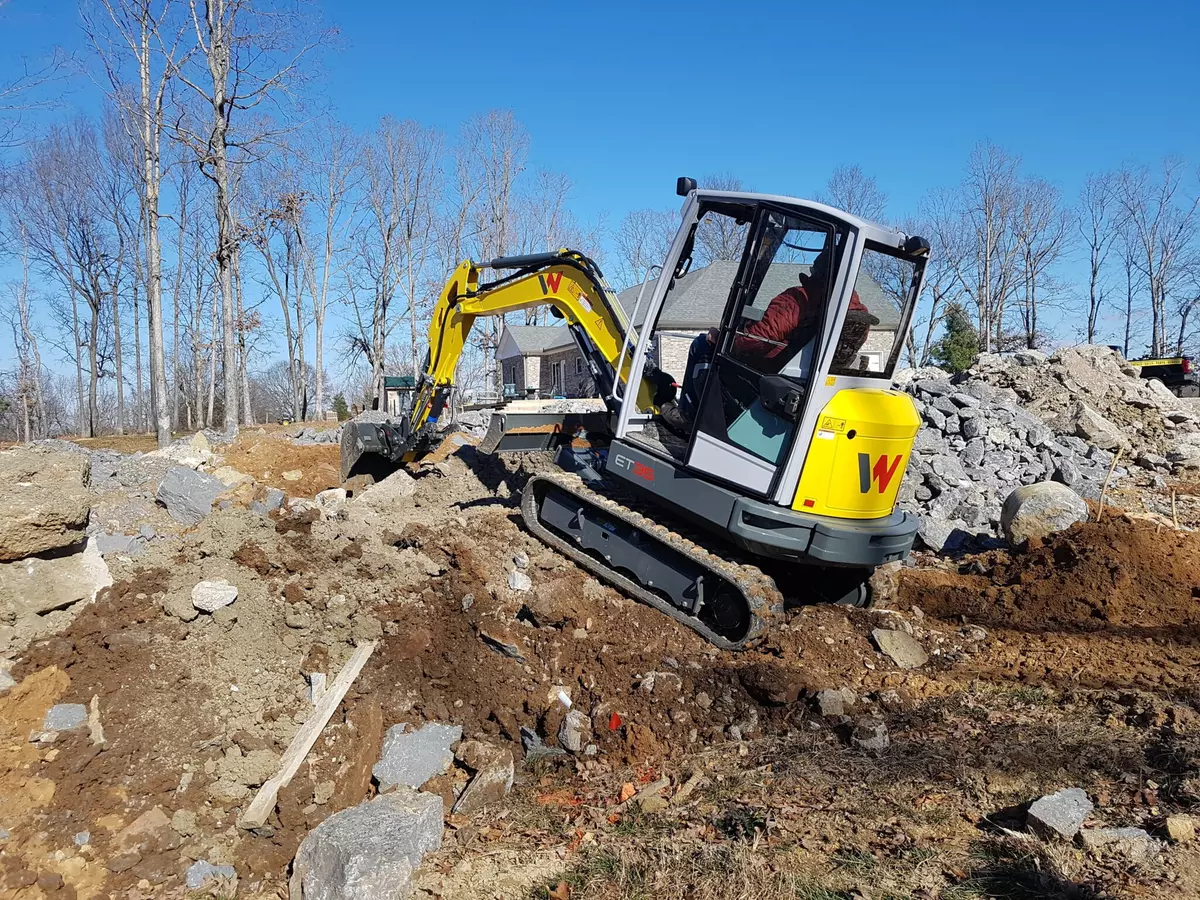

Tracked excavator ET35
Excavators

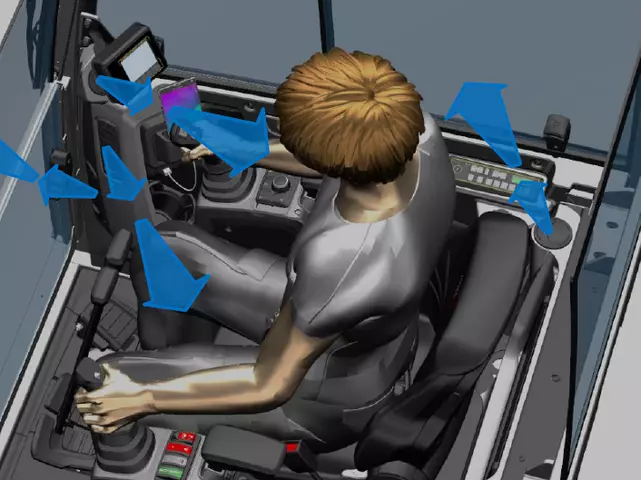

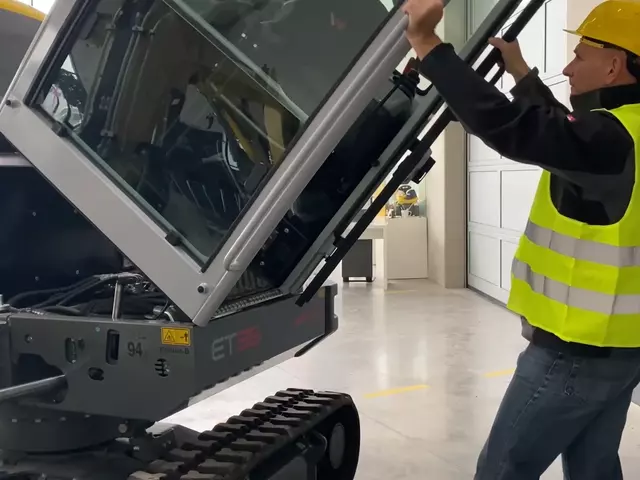

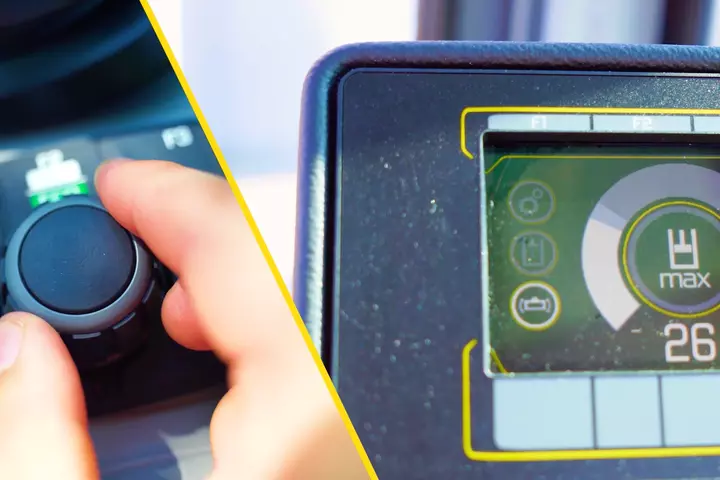

Up to 15% faster working cycles, excellent stability and the ergonomically designed cabin make the tracked excavator ET35 stand out for efficient and fatigue-free work. Get information now!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: ET35
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data50 specifications
ET3550 specifications
- Travel speed
- 4.7 km/h
- Breakout force
- 35 kN
- Tearout force
- 21.1 kN
- Length
- 5,271 mm
- Operating weight (min. max.)
- 3,553 - 4,753 kg
- Digging depth (max.)
- 3,497 mm
- Width
- 1,630 mm
- Height
- 2,711 mm
- Cylinder
- 3
- Cylinder capacity
- 1,642 cm³
- Inclined position max.
- 30 °
- Effective power
- 18.2 kW
- Nominal Engine speed
- 2,400 1/min
- Battery capacity (nom. value)
- 71 Ah
- Engine type
- Diesel engine
- Fuel
- Diesel EN 590
- Exhaust gas limit
- EU Stage V
- Engine Manufacturer
- Yanmar
- Engine Designation
- 3TNV88
- Operating pressure hydraulics
- 240 bar
- Flow rate max.
- 120 l/min
- Operating pressure slewing gear
- 195 bar
- Hydraulicpump
- Axial piston and 2 gear pumps
- Cooling fluid volume
- 5 l
- Hydraulic fluid volume
- 61.5 l
- Shipping weight
- 3,364 kg
- Traction drive
- Axialpistonmotor with RGU
- Cylinder (22,2 k W Diesel engine (Stage 3a))
- 3
- Cylinder capacity (22,2 k W Diesel engine (Stage 3a))
- 1,642 cm³
- Effective power (22,2 k W Diesel engine (Stage 3a))
- 22.2 kW
- Nominal Engine speed (22,2 k W Diesel engine (Stage 3a))
- 2,400 1/min
- Starter battery Voltage
- 12 µg/l
- Stroke
- 90 mm
- Bore
- 88 mm
- Engine type (22,2 k W Diesel engine (Stage 3a))
- Diesel engine
- Exhaust gas limit (22,2 k W Diesel engine (Stage 3a))
- EPA3
- Engine Manufacturer (22,2 k W Diesel engine (Stage 3a))
- Yanmar
- Engine Designation (22,2 k W Diesel engine (Stage 3a))
- 3TNV88
- Cylinder (18,2 k W Diesel engine (Stage 5))
- 3
- Cylinder capacity (18,2 k W Diesel engine (Stage 5))
- 1,642 cm³
- Effective power (18,2 k W Diesel engine (Stage 5))
- 18.2 kW
- Nominal Engine speed (18,2 k W Diesel engine (Stage 5))
- 2,400 1/min
- Maximum torque
- 87.8 Nm
- Stroke (18,2 k W Diesel engine (Stage 5))
- 90 mm
- Bore (18,2 k W Diesel engine (Stage 5))
- 88 mm
- Engine type (18,2 k W Diesel engine (Stage 5))
- Diesel engine
- Fuel (18,2 k W Diesel engine (Stage 5))
- Diesel EN 590
- Exhaust gas limit (18,2 k W Diesel engine (Stage 5))
- EU Stage V
- Engine Manufacturer (18,2 k W Diesel engine (Stage 5))
- Yanmar
- Engine Designation (18,2 k W Diesel engine (Stage 5))
- 3TNV88
