Wacker Neuson

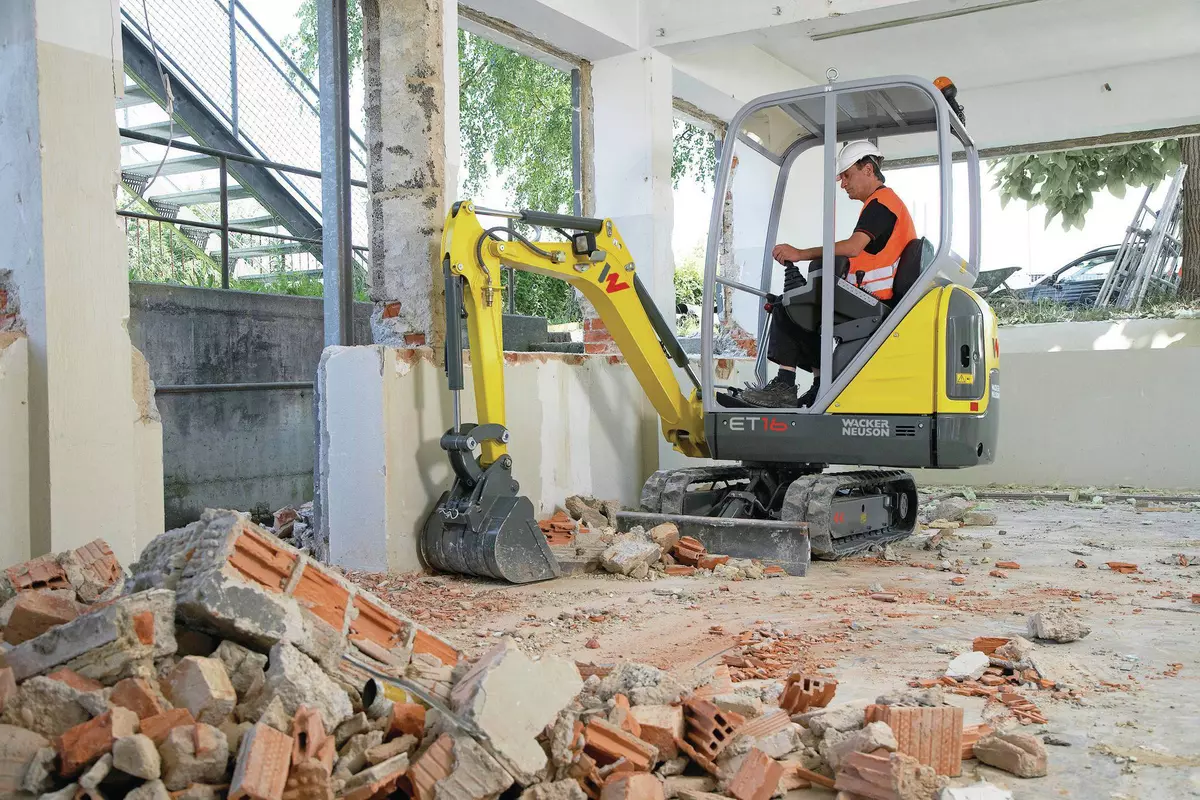

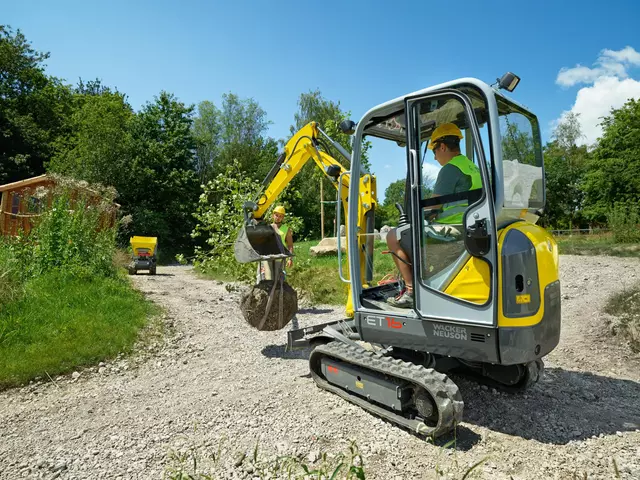

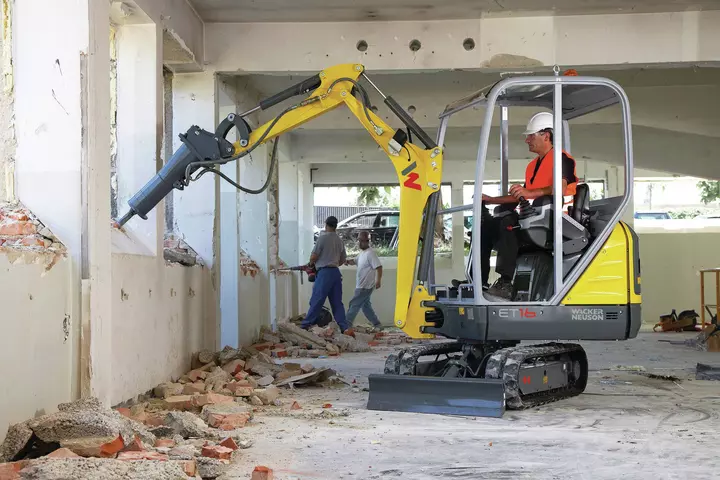

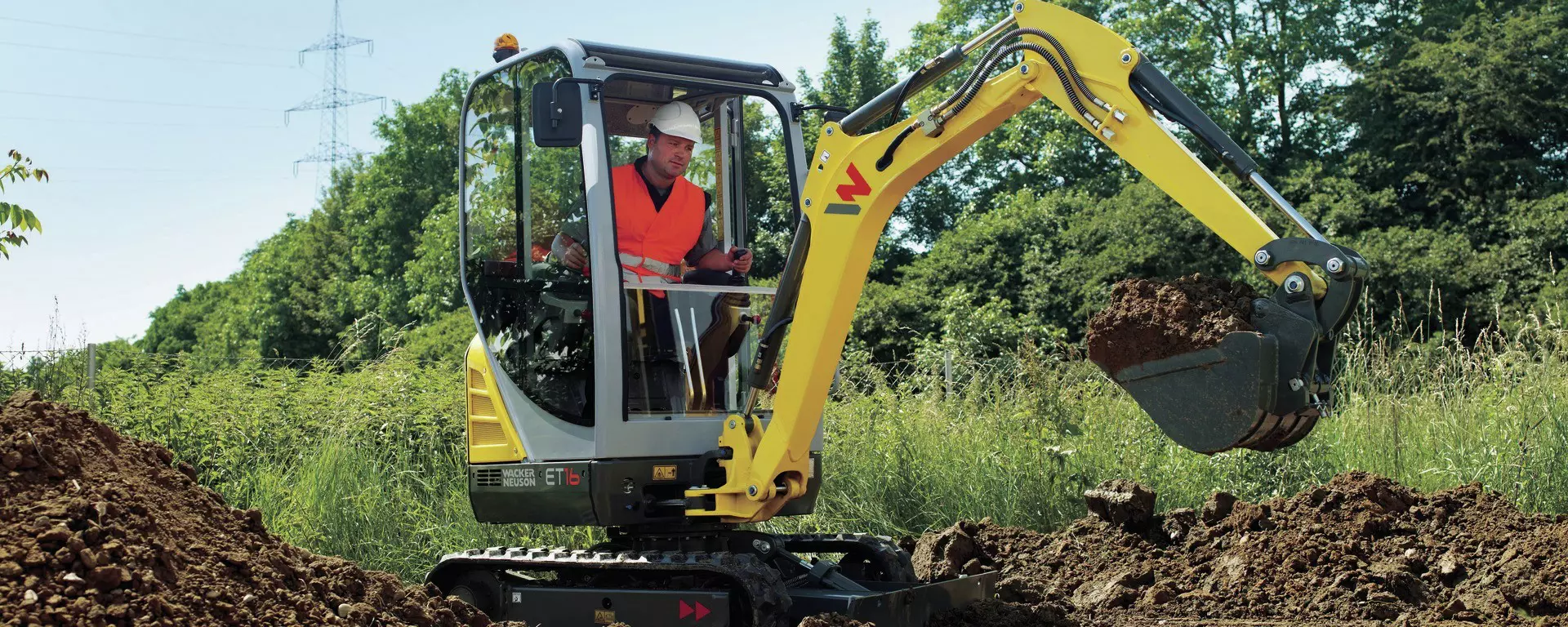

Tracked excavator ET16
Excavators

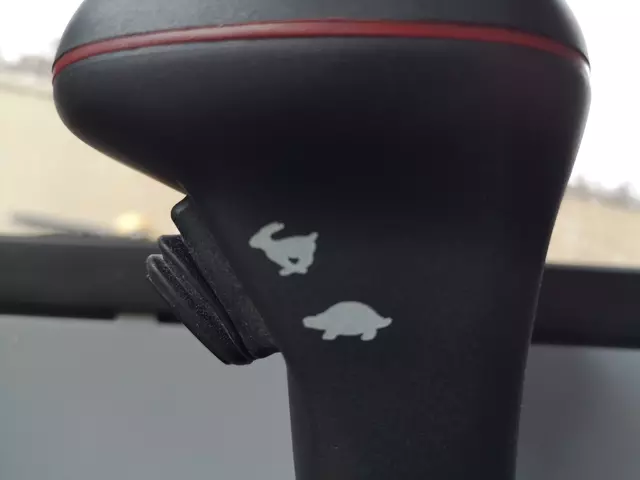

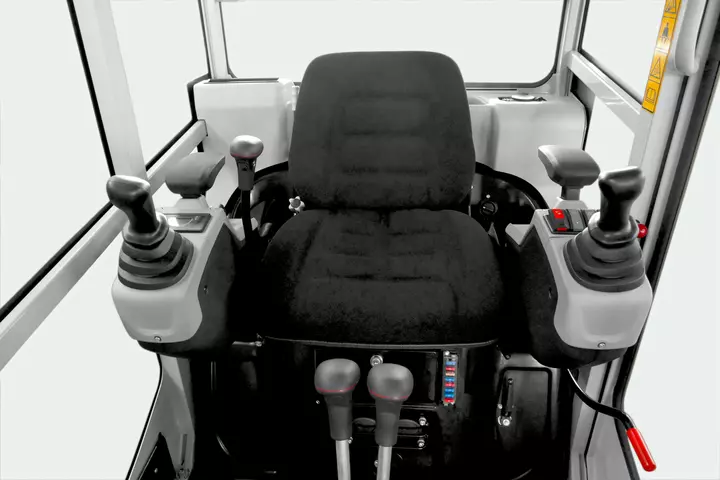

The largest cabin in its class, a powerful engine and 2 travel speeds: the tracked excavator by Wacker Neuson. Learn more!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: ET16
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data27 specifications
ET1627 specifications
- Travel speed
- 4.1 km/h
- Breakout force
- 15.3 kN
- Tearout force
- 7.9 kN
- Length
- 3,644 mm
- Operating weight (min. max.)
- 1,529 - 1,842 kg
- Digging depth (max.)
- 2,413 mm
- Width
- 990 mm
- Height
- 2,285 mm
- Cylinder
- 3
- Cylinder capacity
- 1,116 cm³
- Inclined position max.
- 30 °
- Effective power
- 13.8 kW
- Nominal Engine speed
- 2,200 1/min
- Battery capacity (nom. value)
- 44 Ah
- Engine type
- Diesel engine
- Fuel
- HVO EN15940
- Exhaust gas limit
- EU Stage V
- Engine Manufacturer
- Yanmar
- Engine Designation
- 3TNV76-XNSV
- Operating pressure hydraulics
- 200 bar
- Flow rate
- 33 l/min
- Flow rate max.
- 35 l/min
- Tank capacity
- 20 l
- Operating pressure slewing gear
- 130 bar
- Hydraulicpump
- ZRP
- Operating pressure
- 200 bar
- Shipping weight
- 1,402 kg
