Wacker Neuson

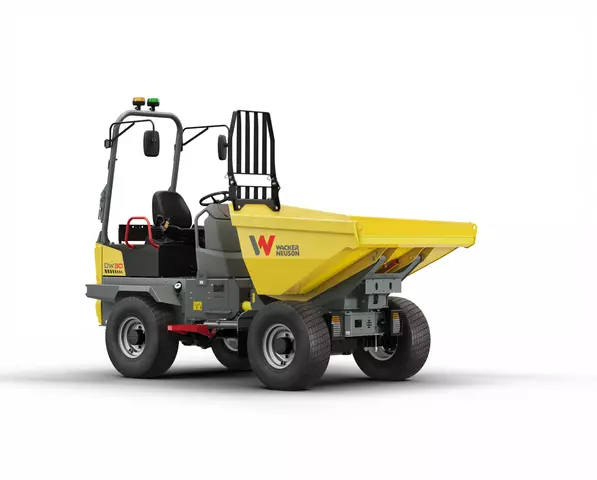

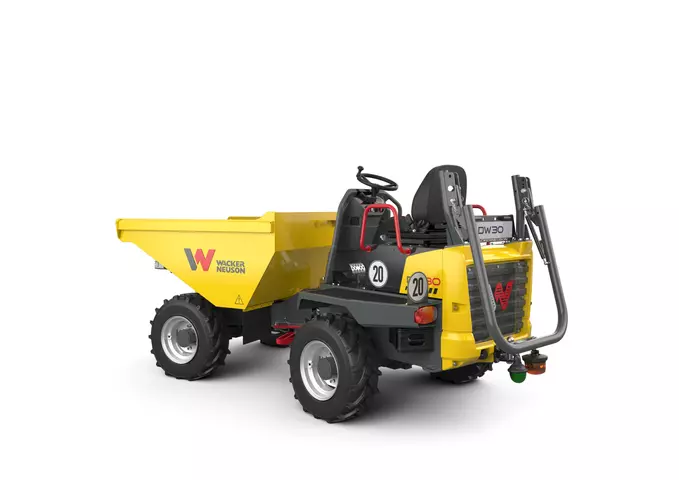

Wheel Dumper DW30
Dumpers
The compact DW30 wheel dumper increases productivity in material handling as well as the safety of the operator and that of the entire construction site. Learn more now and reap the benefits!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: DW30
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data55 specifications
DW3055 specifications
- Gradeability
- 60 %
- Travel speed
- 20 km/h
- Travel speed (Option)
- 25 km/h
- Length
- 3,904 - 4,045 mm
- Operating weight (min. max.)
- 2,048 - 2,506 kg
- Width
- 1,730 mm
- Height
- 2,969 mm
- Weight
- 1,987 kg
- Payload
- 3,000 kg
- Skip capacity levelled
- 1,420 l
- Skip capacity heaped
- 1,800 l
- Skip capacity waterlevel
- 1,110 l
- Pendulum angle
- 15 °
- Cylinder
- 3
- Cylinder capacity
- 1,116 cm³
- Effective power
- 18.9 kW
- Nominal Engine speed
- 3,000 1/min
- Engine type
- Diesel engine
- Fuel
- Diesel EN 590
- Exhaust gas limit
- EU Stage V
- Engine Manufacturer
- Yanmar
- Engine Designation
- 3TNV76-UDWN
- Operating pressure hydraulics
- 200 bar
- Flow rate
- 33 l/min
- Hydraulicpump
- ZRP
- Turning radius
- 3,900 mm
- Articulation angle
- 36 °
- Operating pressure
- 445 bar
- Flow rate (Chassis)
- 66 l/min
- Traction drive
- Swash plate motor
- Hydraulik Pump
- Axialpistonpump
- Tires
- 10.0/75-15.3 10PR
- Shipping weight
- 1,937 kg
- Cylinder (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- 3
- Cylinder capacity (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- 1,116 cm³
- Effective power (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- 18.9 kW
- Nominal Engine speed (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- 3,000 1/min
- Starter battery Voltage
- 12 µg/l
- Stroke
- 82 mm
- Bore
- 76 mm
- Engine type (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- Diesel engine
- Exhaust gas limit (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- EPA Tier 4, EU Stage V
- Engine Manufacturer (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- Yanmar
- Engine Designation (Yanmar 3 TNV76 UDWN EPA Tier 4, EU Stage V)
- 3TNV76-UDWN
- Cylinder (36 k W Diesel engine (Stage 5))
- 3
- Cylinder capacity (36 k W Diesel engine (Stage 5))
- 1,663 cm³
- Effective power (36 k W Diesel engine (Stage 5))
- 36 kW
- Nominal Engine speed (36 k W Diesel engine (Stage 5))
- 2,800 1/min
- Starter battery Voltage (36 k W Diesel engine (Stage 5))
- 12 µg/l
- Stroke (36 k W Diesel engine (Stage 5))
- 100 mm
- Bore (36 k W Diesel engine (Stage 5))
- 84 mm
- Engine type (36 k W Diesel engine (Stage 5))
- Diesel engine
- Exhaust gas limit (36 k W Diesel engine (Stage 5))
- EU Stage V
- Engine Manufacturer (36 k W Diesel engine (Stage 5))
- Perkins
- Engine Designation (36 k W Diesel engine (Stage 5))
- 403J-E17T
