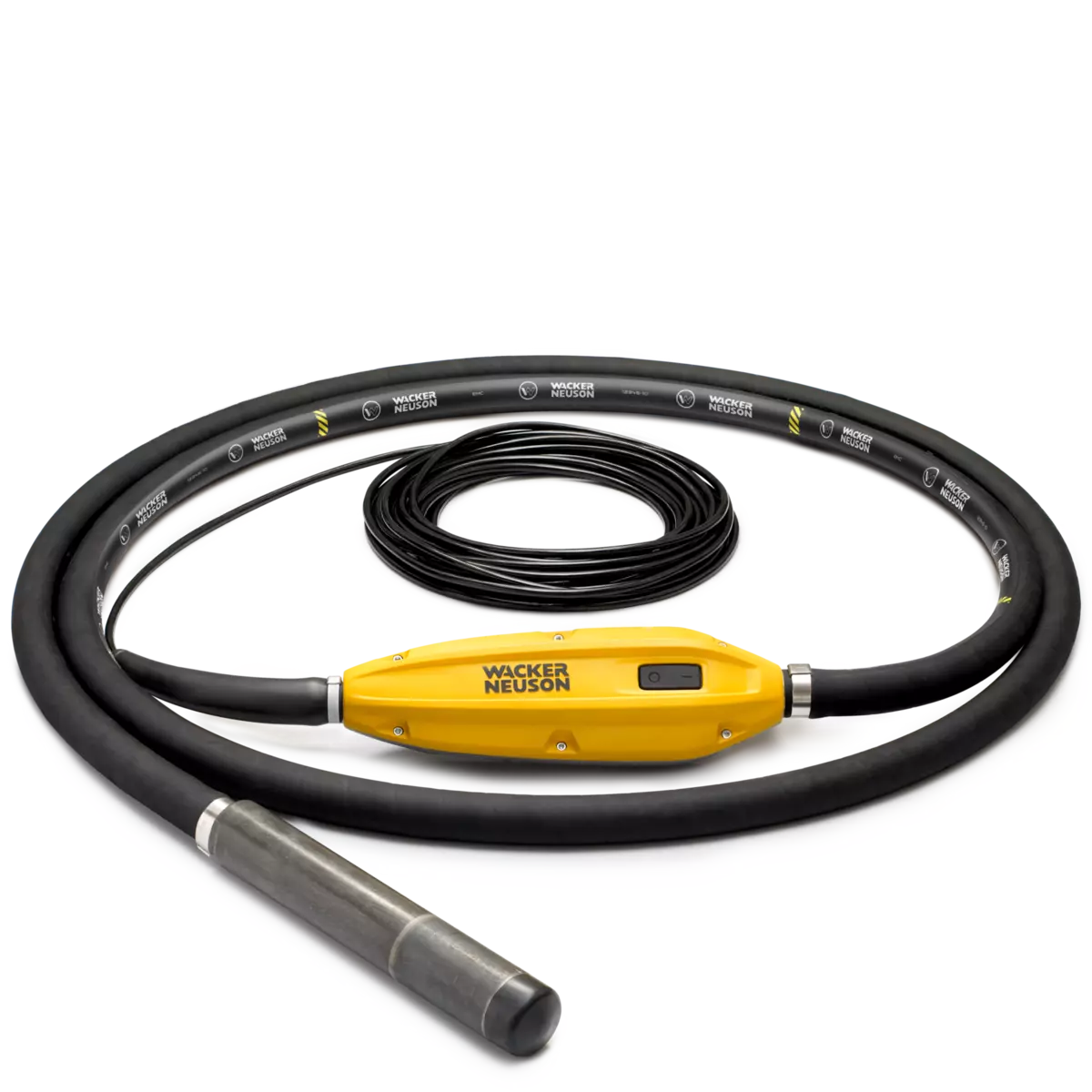

ModelHigh-frequency internal vibrators IEC
Concrete Technology
2 machines in 1: our IEC high-frequency internal vibrators with integrated converter. Users benefit from application flexibility and easy handling.
Technical data covers 3 configurations or components. Compare the specific options below.
Technical specifications
42 specifications · 3 configurations or components
Technical Data42 details
IEC38/230/514 specifications
- Nominal current
- 3 A
- Nominal voltage
- 220–240 V
- Nominal frequency
- 50–60 Hz
- Nominal power
- 0.42 kW
- Phase
- 1 ~
- Vibrations
- 12,000 1/min

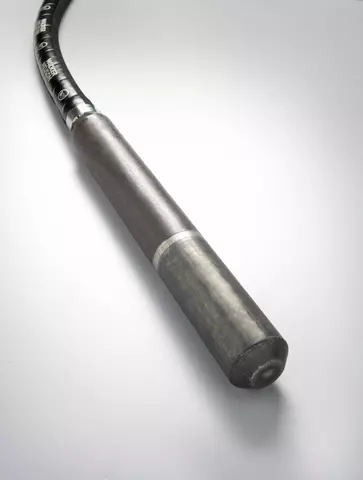

- Head diameter
- 38 mm
- Hose length
- 5 m
- Weight
- 11.3 kg
- Motor type
- Asynchronous motor
- Cable length
- 15 m
- Plug
- CEE 7/7 (Type EF)
- Protection class
- I / Protective earthing
- Degree of protection
- IP67
IEC45/230/514 specifications
- Nominal current
- 4 A
- Nominal voltage
- 220–240 V
- Nominal frequency
- 50–60 Hz
- Nominal power
- 0.56 kW
- Phase
- 1 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 45 mm
- Hose length
- 5 m
- Weight
- 13.2 kg
- Motor type
- Asynchronous motor
- Cable length
- 15 m
- Plug
- CEE 7/7 (Type EF)
- Protection class
- I / Protective earthing
- Degree of protection
- IP67
IEC58/230/514 specifications
- Nominal current
- 5 A
- Nominal voltage
- 220–240 V
- Nominal frequency
- 50–60 Hz
- Nominal power
- 0.72 kW
- Phase
- 1 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 58 mm
- Hose length
- 5 m
- Weight
- 15.2 kg
- Motor type
- Asynchronous motor
- Cable length
- 15 m
- Plug
- CEE 7/7 (Type EF)
- Protection class
- I / Protective earthing
- Degree of protection
- IP67
