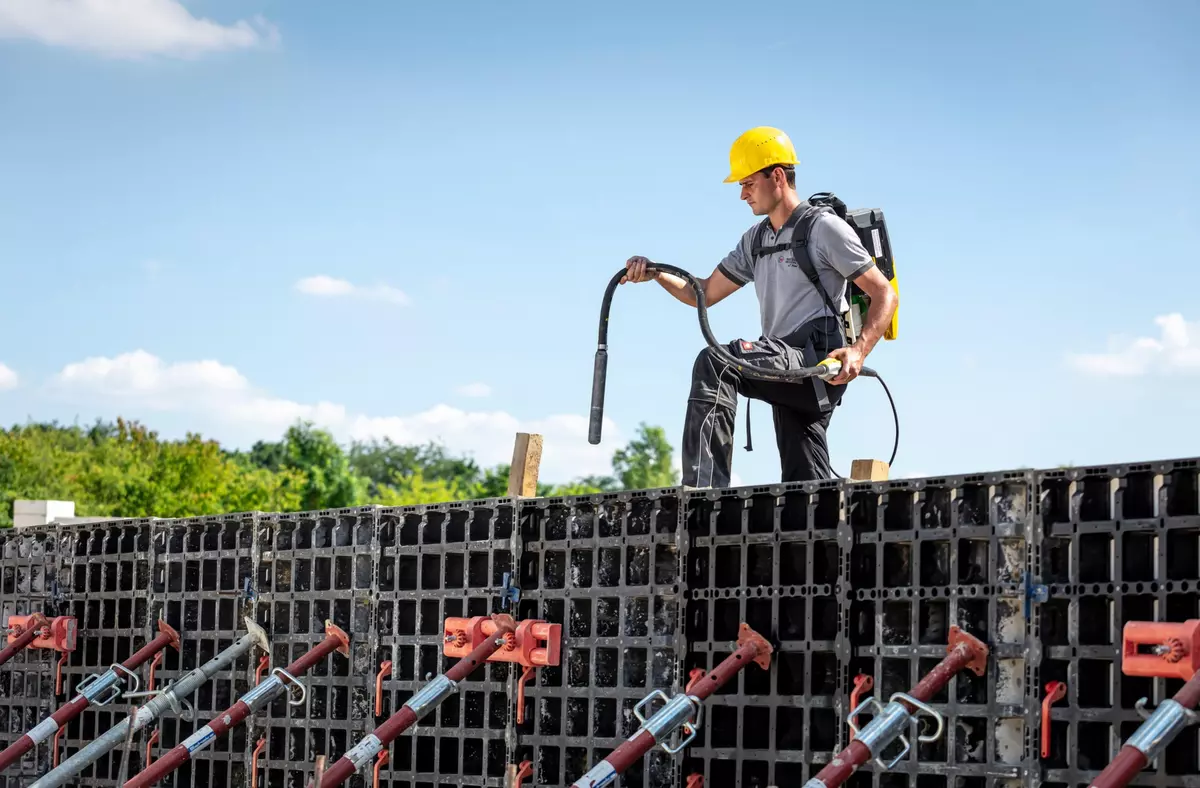

ModelACBe Modular Battery-Powered Internal Vibrator
Concrete Technology

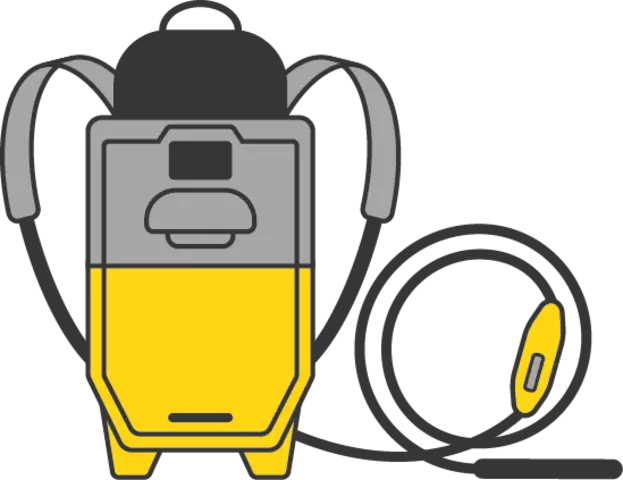

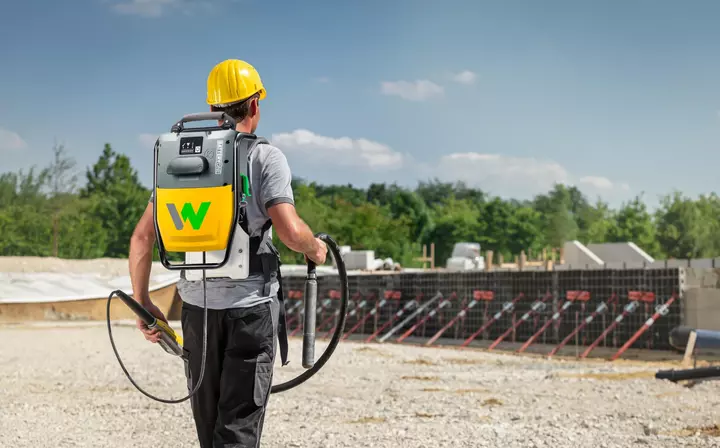

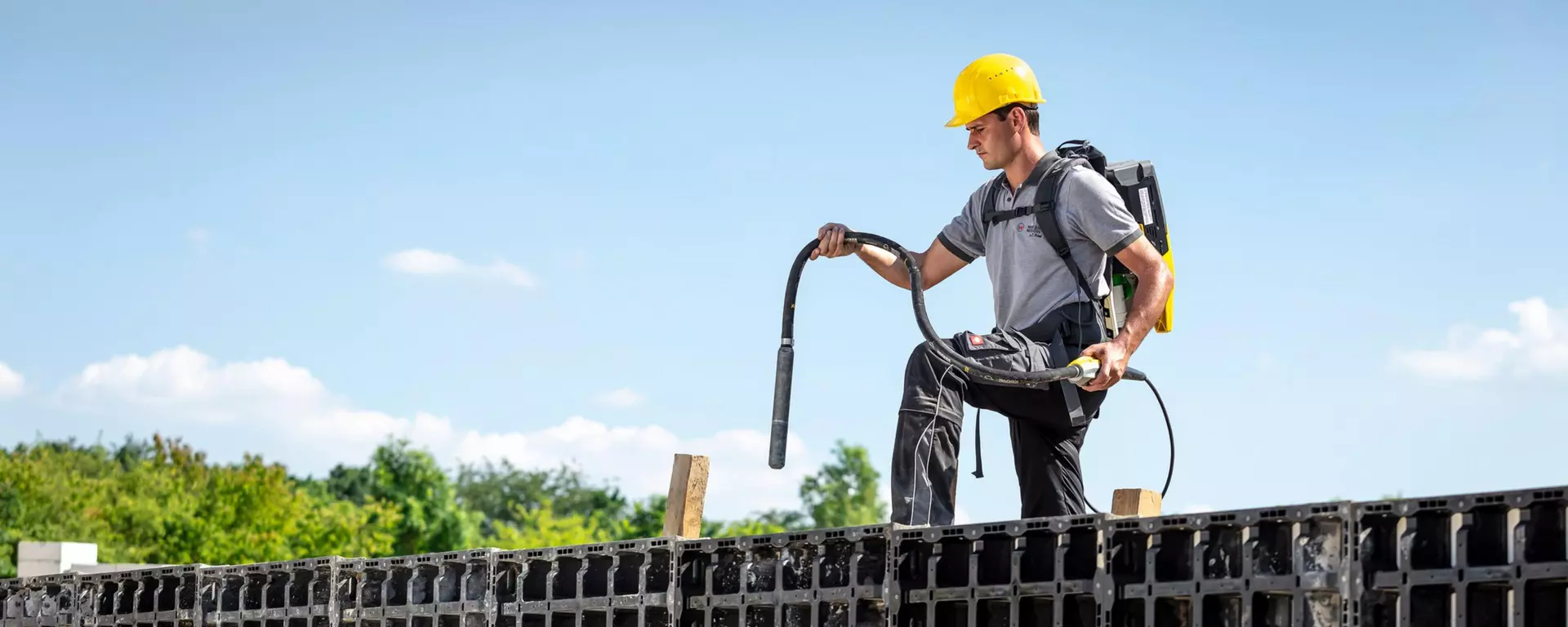

Battery-powered backpack system with integrated frequency converter, paired with a configurable IEe high-frequency internal vibrator. Current South African listings include nine head and hose configurations.
Technical data covers 10 configurations or components. Compare the specific options below.
Technical specifications
117 specifications · 10 configurations or components
Technical Data117 details

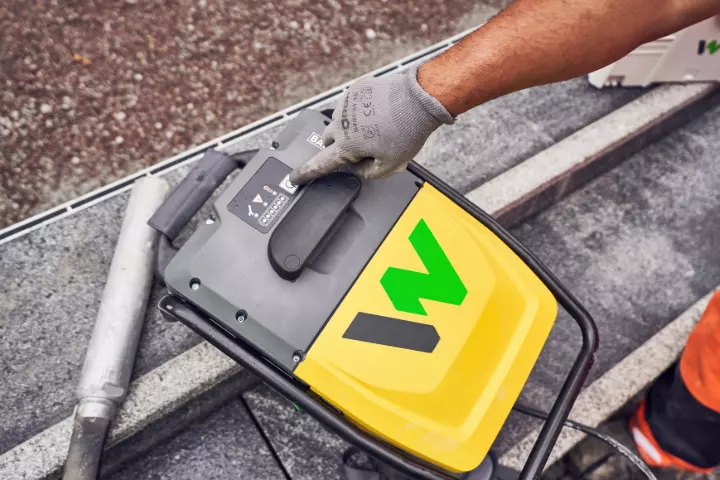

ACBe battery module9 specifications
- Item number
- 5100058345
- Nominal current
- 20 A
- Nominal voltage
- 51 V
- Output current
- 16.7 A
- Output voltage
- 34 V
- Output frequency
- 200 Hz
- Dimensions (L × W × H)
- 336 × 254 × 568 mm
- Weight
- 3.9 kg
- Operating weight (manufacturer listed)
- 10.3 kg; varies with battery and selected IEe vibrator head
IEe38/34/312 specifications
- Item number
- 5100049830
- Nominal current
- 6.2 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.29 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 38 mm
- Hose length
- 3 m
- Weight
- 5.26 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe38/34/512 specifications
- Item number
- 5100052661
- Nominal current
- 6.2 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.29 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 38 mm
- Hose length
- 5 m
- Weight
- 6.4 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe45/34/312 specifications
- Item number
- 5100049832
- Nominal current
- 9.9 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.47 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 45 mm
- Hose length
- 3 m
- Weight
- 6.42 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe45/34/512 specifications
- Item number
- 5100052662
- Nominal current
- 9.9 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.47 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 45 mm
- Hose length
- 5 m
- Weight
- 8.8 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe58/34/312 specifications
- Item number
- 5100049834
- Nominal current
- 14.8 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.70 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 58 mm
- Hose length
- 3 m
- Weight
- 9.58 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe58/34/512 specifications
- Item number
- 5100052663
- Nominal current
- 14.8 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.70 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 58 mm
- Hose length
- 5 m
- Weight
- 12.1 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe38/34/1,512 specifications
- Item number
- 5100049759
- Nominal current
- 6.2 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.29 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 38 mm
- Hose length
- 1.5 m
- Weight
- 4.1 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe45/34/1,512 specifications
- Item number
- 5100049831
- Nominal current
- 9.9 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.47 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 45 mm
- Hose length
- 1.5 m
- Weight
- 5.24 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
IEe58/34/1,512 specifications
- Item number
- 5100049833
- Nominal current
- 14.8 A
- Nominal voltage
- 34 V
- Nominal frequency
- 200 Hz
- Nominal power
- 0.70 kW
- Phase
- 3 ~
- Vibrations
- 12,000 1/min
- Head diameter
- 58 mm
- Hose length
- 1.5 m
- Weight
- 7.82 kg
- Protection class
- III / Safety extra-low voltage
- Degree of protection
- IP67
