Wacker Neuson

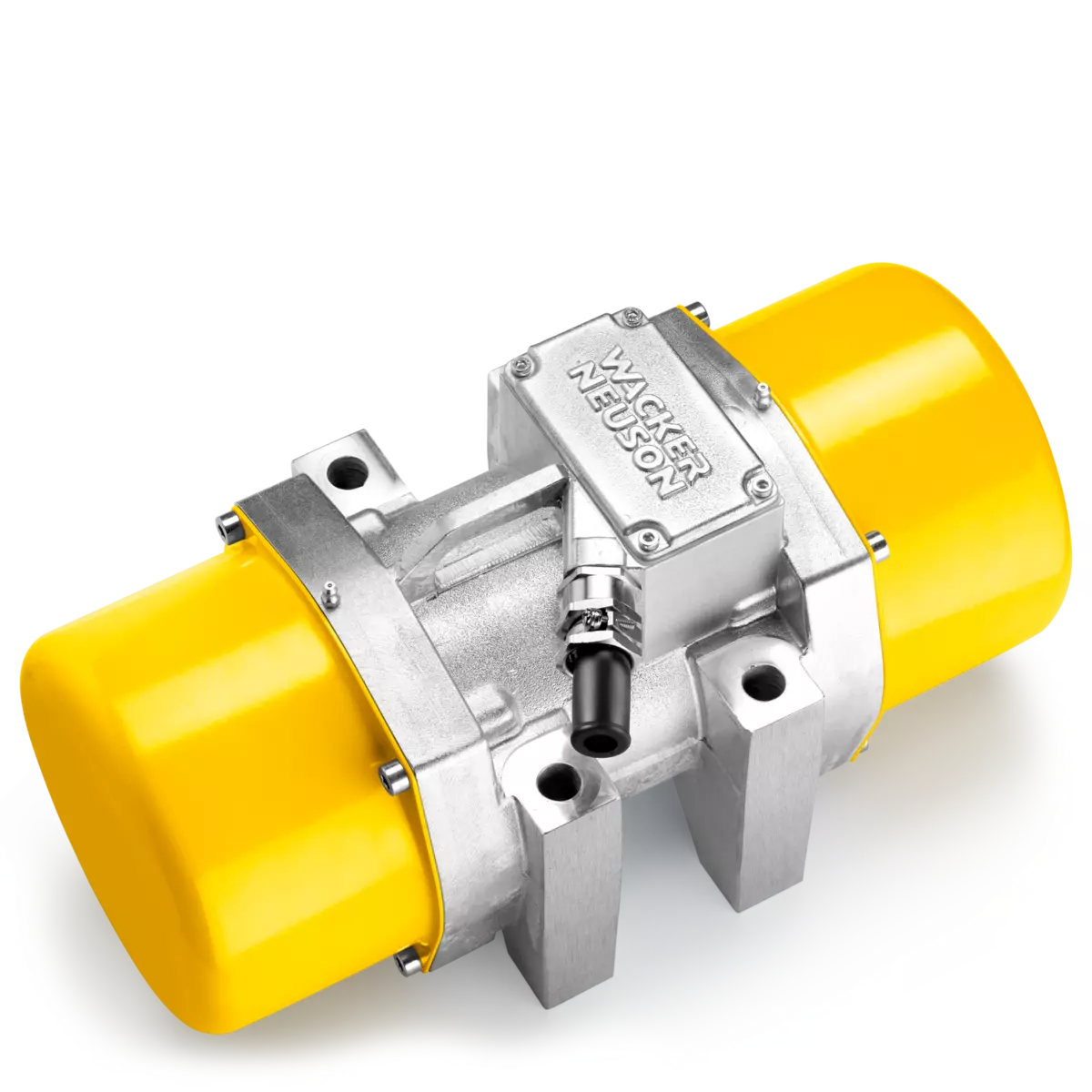

External vibrator AR75
Concrete Technology
First-class concrete consolidation with the AR75 external vibrator even during 24-hour applications. Get information on the advantages and benefit from Wacker Neuson quality! The expert for bulk material on your construction site: loosening, separating, transporting with the AR75 external vibrator. Learn more now!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: AR75
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data30 specifications
AR75/1,5/40015 specifications
- Nominal current
- 3.4 A
- Nominal voltage
- 400 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 1.9 kW
- Phase
- 3 ~
- Centrifugal force
- 8 kN
- Vibrations
- 1,500 1/min
- Centrifugal force max.
- 10.29 kN
- Length
- 420 mm
- Width
- 227 mm
- Height
- 218 mm
- Weight
- 36.5 kg
- Hole pattern length
- 95 mm
- Hole pattern width
- 179 mm
- Hole pattern hole diameter
- 17 mm
AR75/3/40015 specifications
- Nominal current
- 2.4 A
- Nominal voltage
- 400 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 1.4 kW
- Phase
- 3 ~
- Centrifugal force
- 13 kN
- Vibrations
- 3,000 1/min
- Centrifugal force max.
- 25.23 kN
- Length
- 227 mm
- Width
- 218 mm
- Height
- 218 mm
- Weight
- 33 kg
- Hole pattern length
- 95 mm
- Hole pattern width
- 179 mm
- Hole pattern hole diameter
- 17 mm
