Wacker Neuson

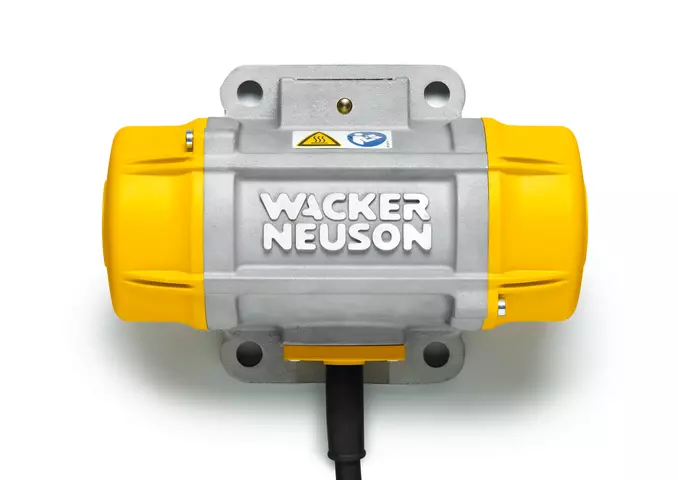

ModelExternal vibrator AR26
Concrete Technology
Filling, consolidating, transporting and sifting bulk material with the AR26 external vibrator. Learn more now and benefit on your construction site!
Model / part number: AR26
Technical data covers 2 configurations or components. Compare the specific options below.
Technical specifications
31 specifications · 2 configurations or components
Technical Data31 details
AR26/3/230w16 specifications
- Nominal current
- 1.75 A
- Nominal voltage
- 230 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 0.4 kW
- Phase
- 1 ~
- Centrifugal force
- 3 kN
- Vibrations
- 3,000 1/min
- Centrifugal force max.
- 2.93 kN
- Length
- 274 mm
- Width
- 190 mm
- Height
- 102 mm
- Weight
- 6.41 kg
- Hole pattern length
- 90 mm
- Hole pattern width
- 125 mm
- Hole pattern hole diameter
- 12 mm
- Length Cable
- 5 m
AR26/3/40015 specifications
- Nominal current
- 0.65 A
- Nominal voltage
- 400 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 0.4 kW
- Phase
- 3 ~
- Centrifugal force
- 3 kN
- Vibrations
- 3,000 1/min
- Centrifugal force max.
- 3.04 kN
- Length
- 274 mm
- Width
- 190 mm
- Height
- 102 mm
- Weight
- 5.78 kg
- Hole pattern length
- 90 mm
- Hole pattern width
- 125 mm
- Hole pattern hole diameter
- 12 mm
