Wacker Neuson

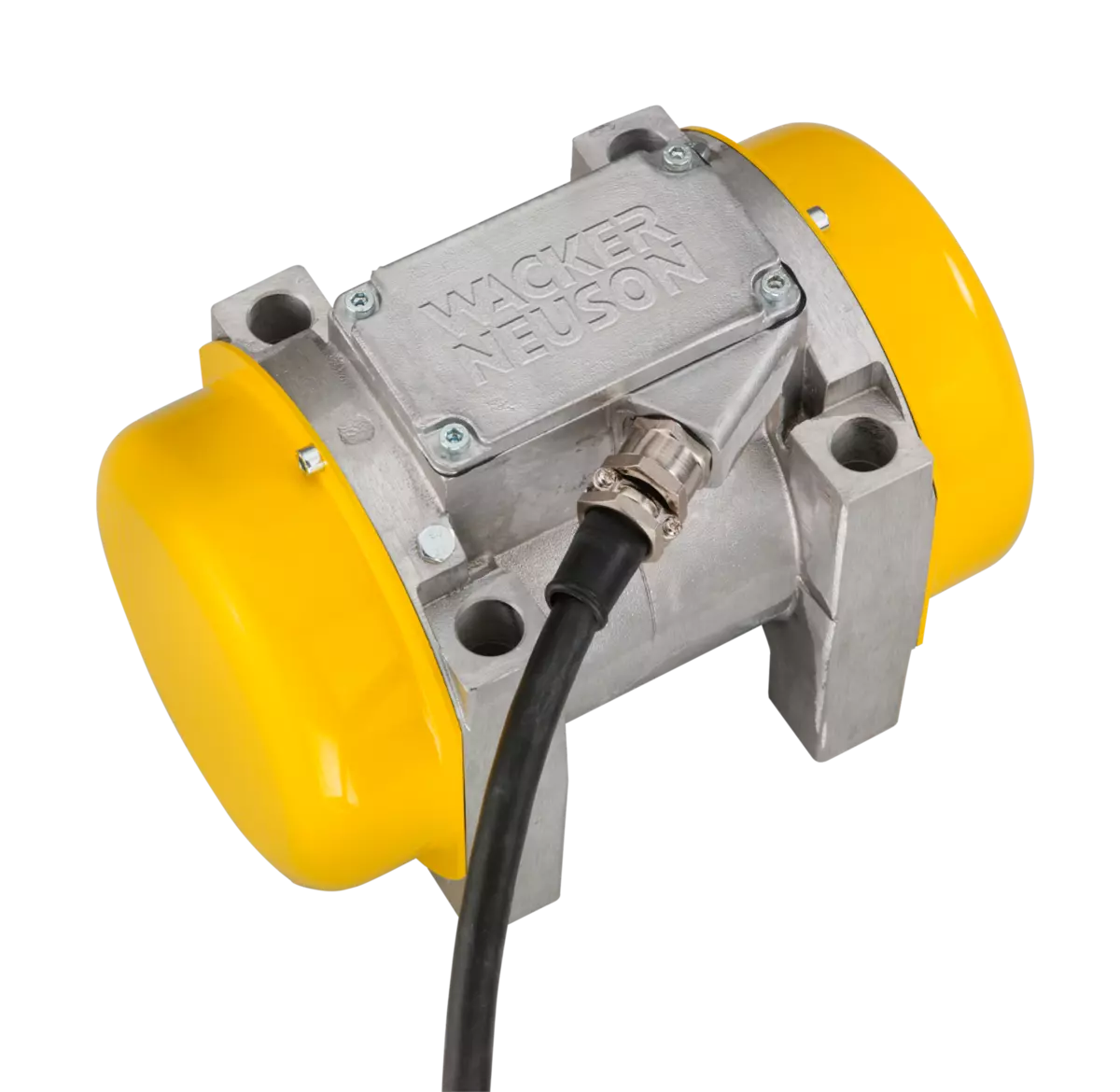

ModelExternal vibrator AR64 for concrete precast parts
Concrete Technology

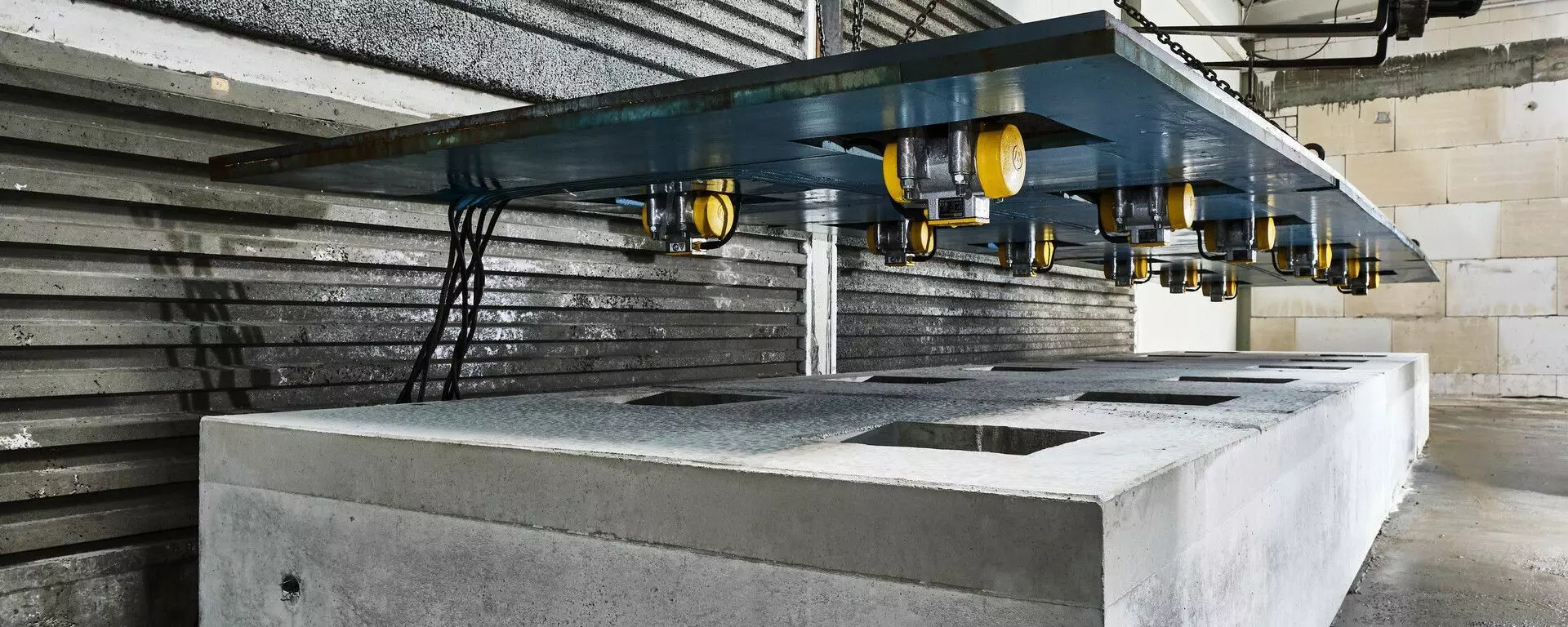

Wacker Neuson external vibrator for the concrete compaction of precast parts. Test now emoji
Model / part number: AR64
Technical data covers 2 configurations or components. Compare the specific options below.
Technical specifications
30 specifications · 2 configurations or components
Technical Data30 details
AR64/1,5/40015 specifications
- Nominal current
- 1.4 A
- Nominal voltage
- 400 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 0.8 kW
- Phase
- 3 ~
- Centrifugal force
- 4 kN
- Vibrations
- 1,500 1/min
- Centrifugal force max.
- 5.05 kN
- Length
- 352 mm
- Width
- 155 mm
- Height
- 188 mm
- Weight
- 21 kg
- Hole pattern length
- 120 mm
- Hole pattern width
- 120 mm
- Hole pattern hole diameter
- 16 mm
AR64/3/40015 specifications
- Nominal current
- 1.7 A
- Nominal voltage
- 400 V
- Nominal frequency
- 50 Hz
- Nominal power [P]
- 0.9 kW
- Phase
- 3 ~
- Centrifugal force
- 9 kN
- Vibrations
- 3,000 1/min
- Centrifugal force max.
- 16.05 kN
- Length
- 352 mm
- Width
- 155 mm
- Height
- 188 mm
- Weight
- 18.69 kg
- Hole pattern length
- 120 mm
- Hole pattern width
- 120 mm
- Hole pattern hole diameter
- 16 mm
