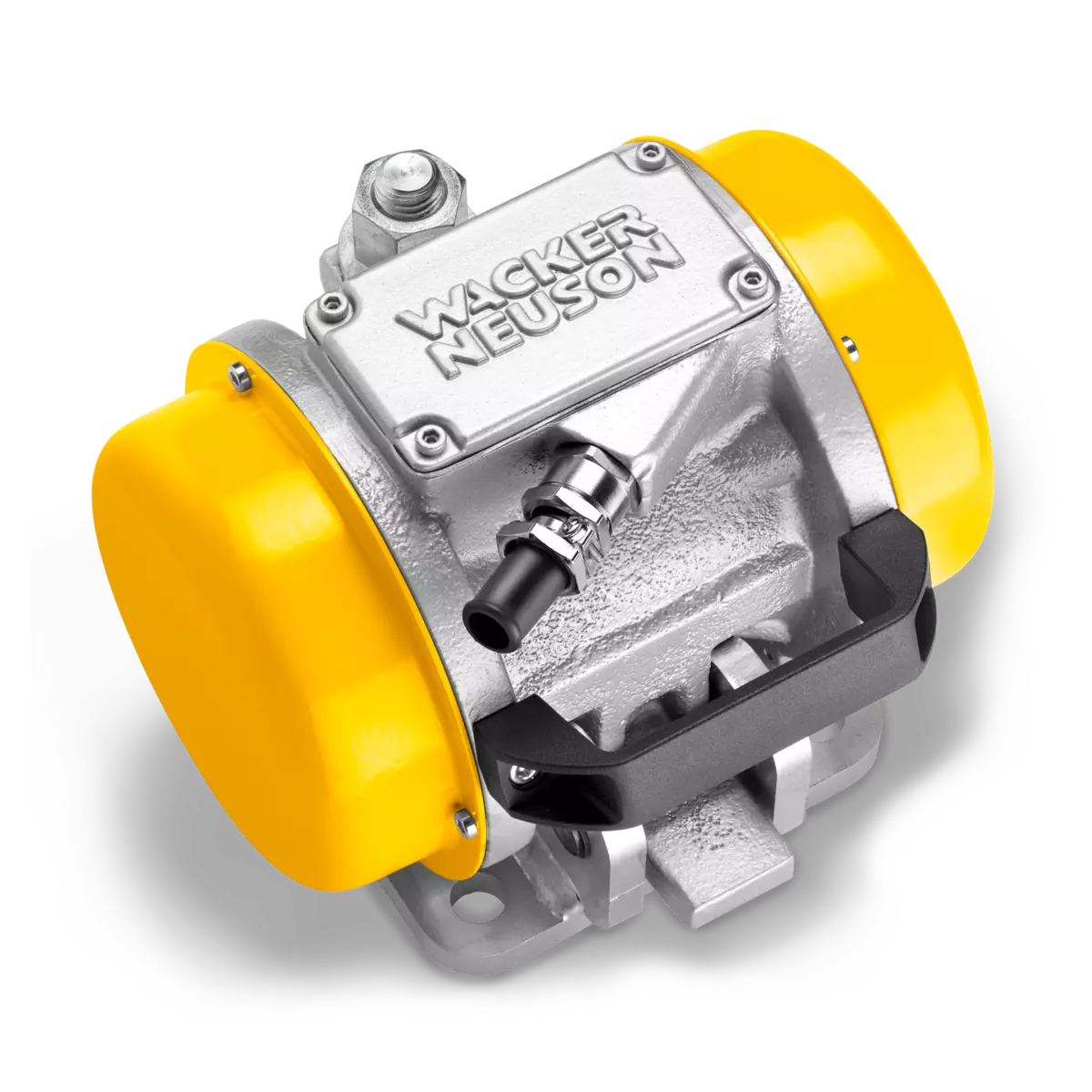

External vibrators for consolidation of prefabricated concrete factories AR52
Concrete Technology
Durability✓ Long service life✓ Even under the harshest operating conditions, the AR52 external vibrator offers maximum reliability and safety. Get information now and benefit!
Current Wacker Neuson South Africa product-page listing; not a 2026 model-year catalogue.
Listed on Wacker Neuson South Africa product pages; confirm current model configuration and SwaziTrac / Eswatini supply before quoting.
Model / part number: AR52
Technical specification source: Official manufacturer technical data
Catalogue source: Wacker Neuson South Africa · Checked 2026-10-04
Specifications
Technical Data15 specifications
AR52/6/04215 specifications
- Nominal current
- 18.2 A
- Nominal voltage
- 42 V
- Nominal frequency
- 200 Hz
- Nominal power [P]
- 1.1 kW
- Phase
- 3 ~
- Centrifugal force
- 8 kN
- Vibrations
- 6,000 1/min
- Centrifugal force max.
- 14.14 kN
- Length
- 231 mm
- Width
- 217 mm
- Height
- 204 mm
- Weight
- 18.56 kg
- Hole pattern length
- 120 mm
- Hole pattern width
- 120 mm
- Hole pattern hole diameter
- 17 mm
