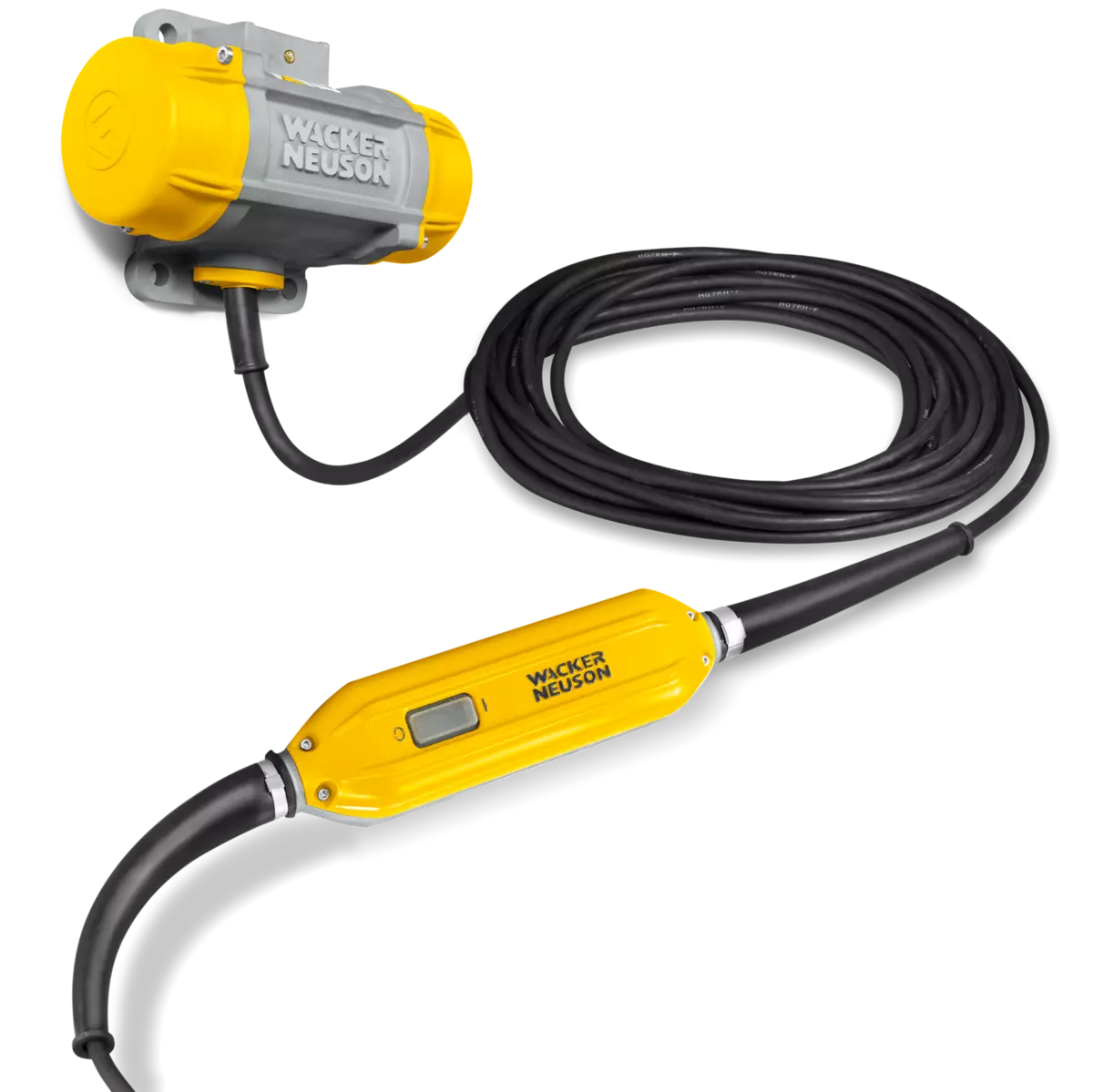

ModelExternal vibrators for consolidation of in-situ concrete ARFU26
Concrete Technology

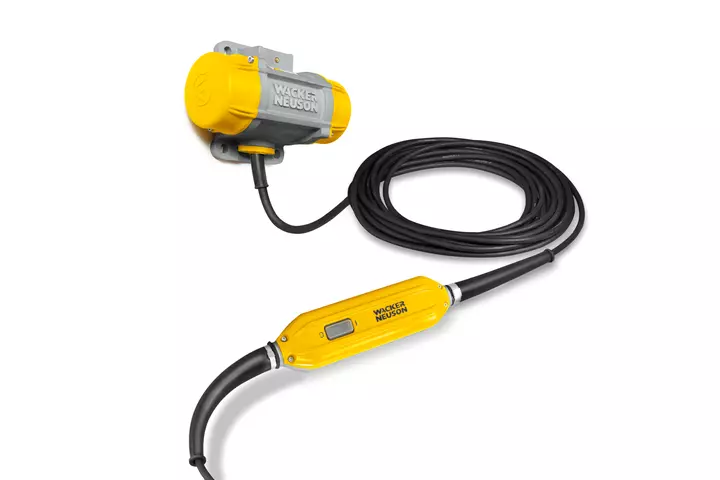

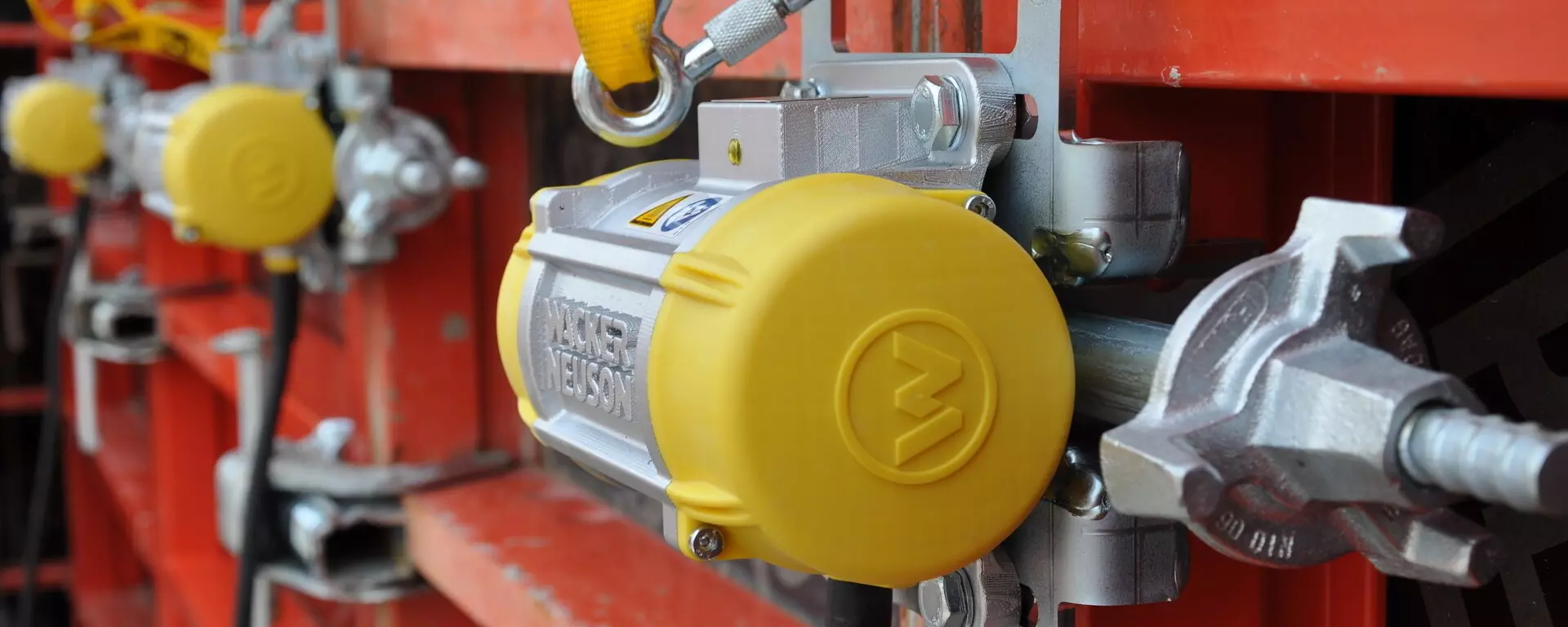

Smooth, even concrete surfaces on walls, pillars and columns thanks to the ARFU26 external vibrator with integrated converter. Learn more and you can benefit too!
Model / part number: ARFU26
Technical data covers 1 configurations or components. Compare the specific options below.
Technical specifications
16 specifications · 1 configurations or components
Technical Data16 details
ARFU26/6/23016 specifications
- Nominal current
- 6 A
- Nominal voltage
- 220 - 240 V
- Nominal frequency
- 50 - 60 Hz
- Nominal power [P]
- 1.1 kW
- Phase
- 1 ~
- Centrifugal force
- 2 kN
- Vibrations
- 6,000 1/min
- Centrifugal force max.
- 3.47 kN
- Length
- 223 mm
- Width
- 190 mm
- Height
- 102 mm
- Weight
- 17.98 kg
- Hole pattern length
- 90 mm
- Hole pattern width
- 125 mm
- Hole pattern hole diameter
- 12 mm
- Length Cable
- 15 m
