John Deere

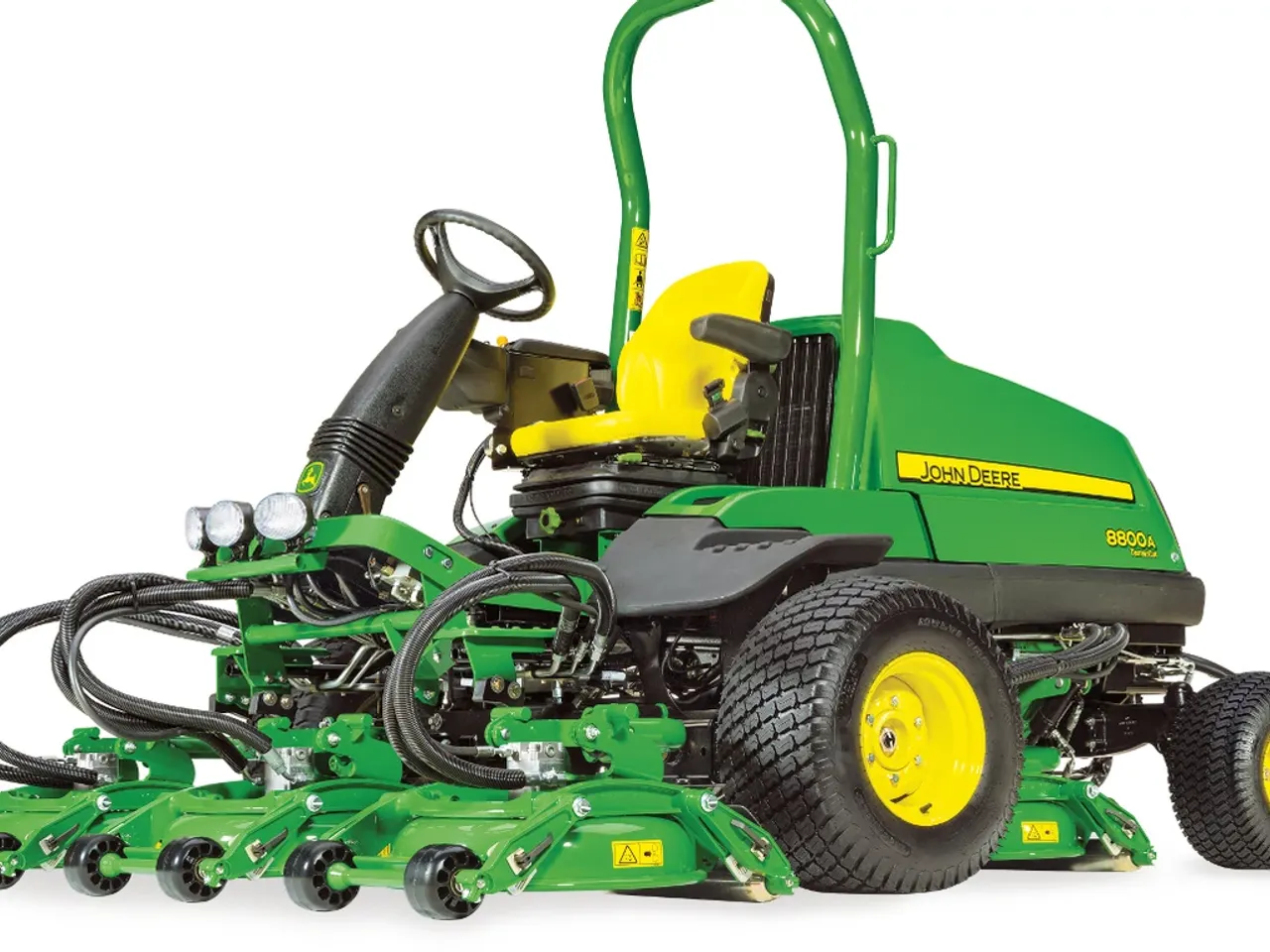

Model8800A TerrainCut™ Trim and Surrounds Mower
Rough
8800A TerrainCut rough mower combines rotary deck productivity, contour-following capability, and TechControl™ settings for rough mowing.
Model / part number: 150KTC
Key specifications
- Engine Type
- Direct Inject Diesel
- Traction Drive
- Servo-controlled hydrostatic pump to 4 wheel motors with standard GRIP All Wheel Drive Traction System
- Cutting Width (Metric)
- 53.3 cm
Technical specifications
26 specifications
Key Specs4 details
- Engine Type
- Direct Inject Diesel
- Traction Drive
- Servo-controlled hydrostatic pump to 4 wheel motors with standard GRIP All Wheel Drive Traction System
- Cutting Width (Metric)
- 53.3 cm
- Cutting Width (Imperial)
- 21 in.

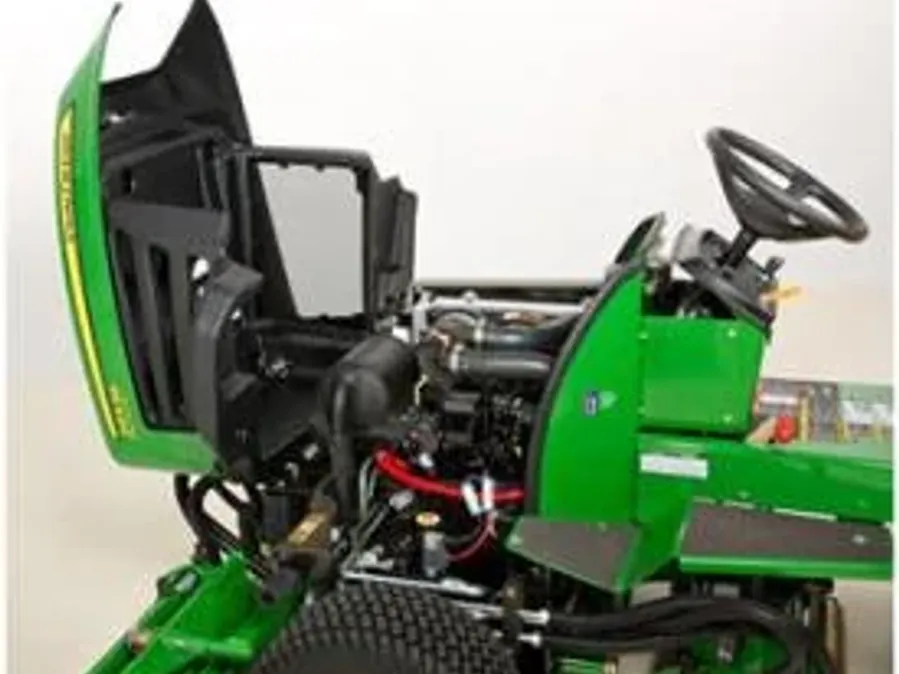

Engine6 details
- Engine Type
- Direct Inject Diesel
- Fuel
- Diesel
- Maximum Engine Power (Metric)
- 31.1 kW
- Maximum Engine Power (Imperial)
- 42.0 hp
- Air Cleaner
- 2-stage dry element
- Cooling
- Liquid centrifugal pump
Machine5 details
- Wheels And Tires Front
- 26x12-12 Multi Trac
- Wheels And Tires Rear
- 20x10-8 turf
- Braking System
- Disc and dynamic braking through closed loop hydrostatic system
- Fuel Tank Capacity (Metric)
- 68.1 L
- Fuel Tank Capacity (Imperial)
- 18.0 U.S. gal.

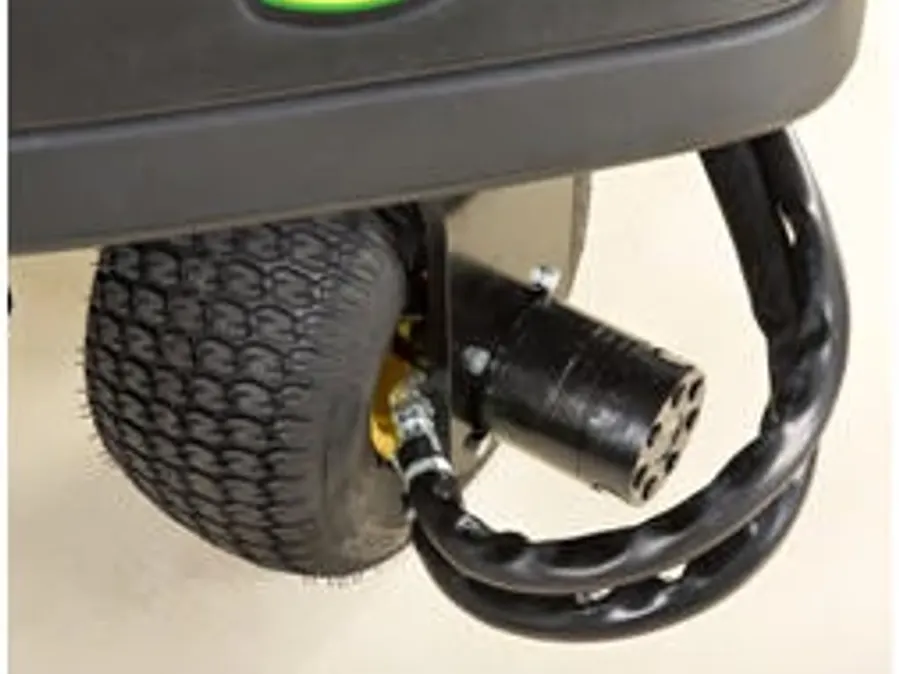

Wheel Motor And Reel Drive1 detail
- Traction Drive
- Servo-controlled hydrostatic pump to 4 wheel motors with standard GRIP All Wheel Drive Traction System

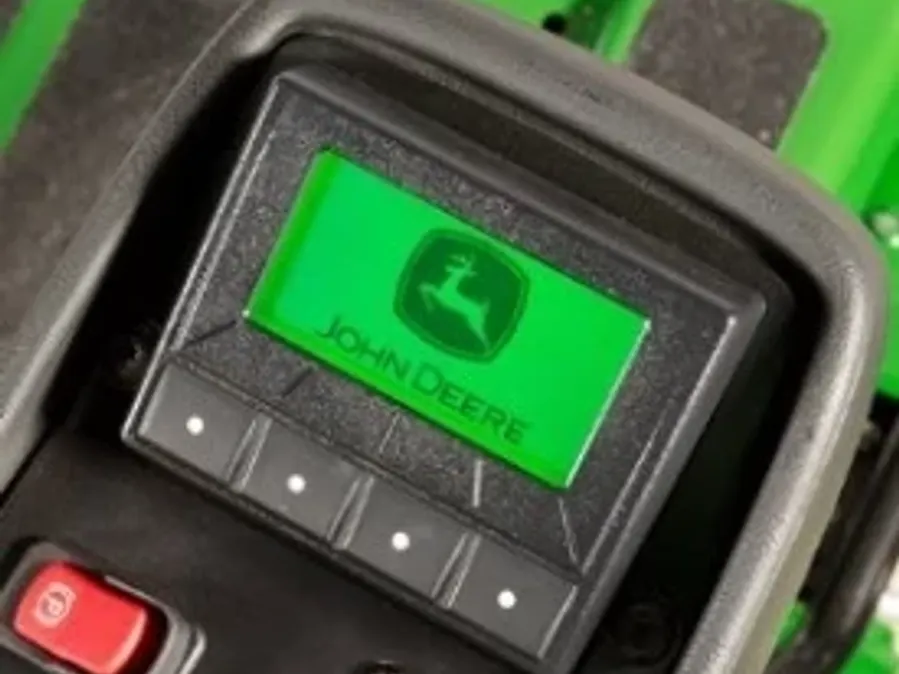

Operator Controls5 details
- Steering
- Hydraulic power with double acting steering cylinder
- Lift And Lower Of Cutting Units
- Single hand lever located on operator control arm
- Mower Engagement
- Hand lever located on Command Arm
- Throttle
- Hand control on operator control console
- Park Brake
- Foot pedal lock for foot operated park brake
Weight And Dimensions2 details
- Cutting Width (Metric)
- 53.3 cm
- Cutting Width (Imperial)
- 21 in.
Mower1 detail
- Certification
- CE and ANSI B71.4
Sound Levels2 details
- Operator Ear
- 89.0 dBA
- Measuring Standard
- ISO 11201
