John Deere

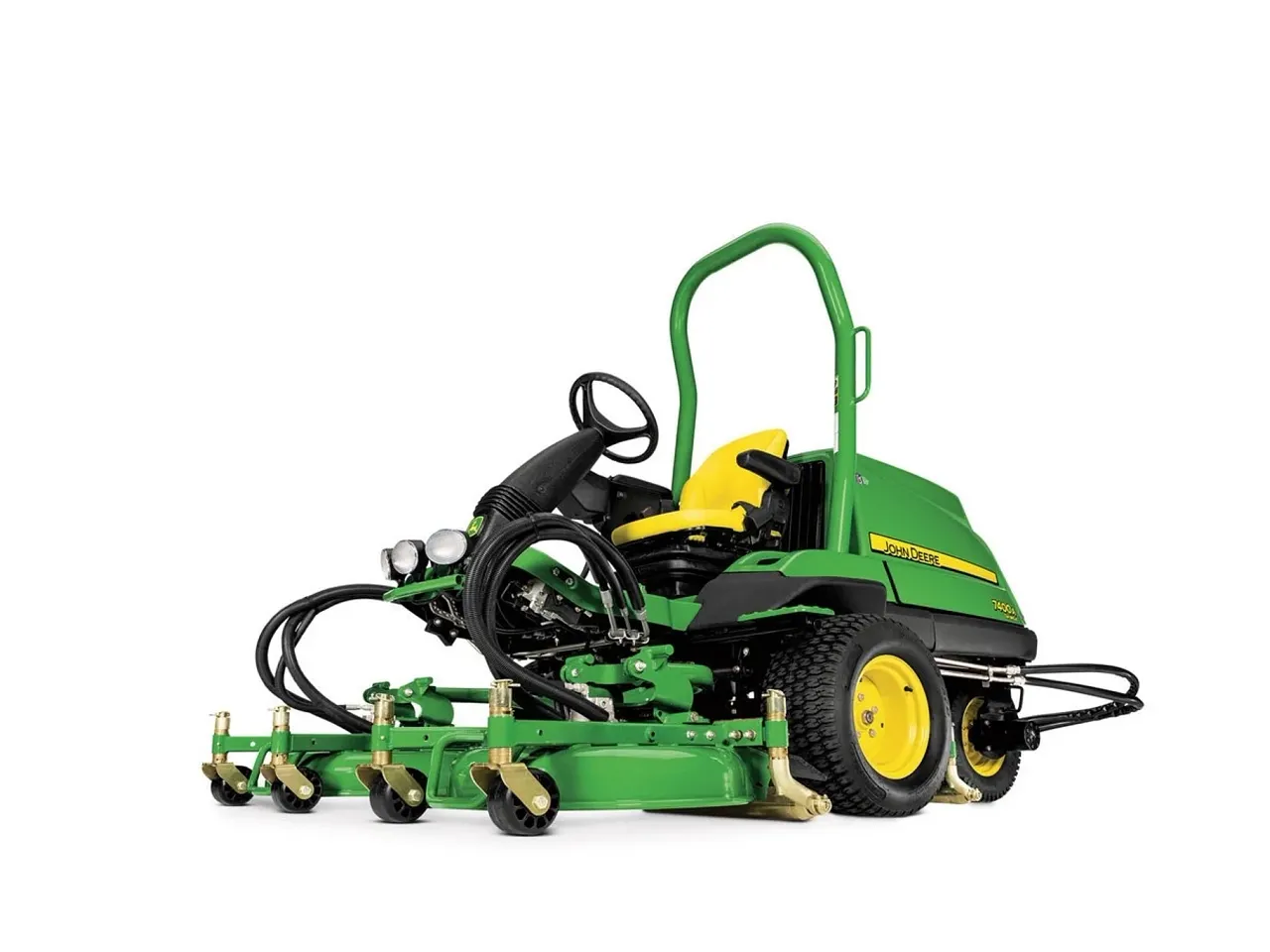

7400A TerrainCut™ Trim and Surrounds Mower
Rough
7400A TerrainCut mower features Reach Trimming, Width-on-Demand control, rotary decks, and TechControl™ for trim and surrounds mowing.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 143LTC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Type
- Direct Inject Diesel
- Displacement (Metric)
- 1496.0 cc
- Displacement (Imperial)
- 91.3 cu in.
- Traction Drive
- Hydrostatic pump to wheel motors; GRIP All-Wheel Drive Traction System engaged during transport and mow
- Cutting Width (Metric)
- 68 cm
- Cutting Width (Imperial)
- 68 in.
- Mower Size (Metric)
- 68.6 cm
- Mower Size (Imperial)
- 27.0 in.
- Reel Diameter (Metric)
- 17.8 cm
- Reel Diameter (Imperial)
- 7.0 in.
Engine8 specifications
- Engine Type
- Direct Inject Diesel
- Fuel
- Diesel
- Maximum Engine Power (Metric)
- 27.7 kW
- Maximum Engine Power (Imperial)
- 37.1 hp
- Air Cleaner
- 2-stage dry element
- Cooling
- Liquid centrifugal pump
- Displacement (Metric)
- 1496.0 cc
- Displacement (Imperial)
- 91.3 cu in.
Machine5 specifications
- Wheels And Tires Front
- 24 x 12 - 12 turf trac
- Wheels And Tires Rear
- 24 x 12 - 12 multi trac
- Braking System
- Disc and dynamic braking through closed loop hydrostatic system
- Fuel Tank Capacity (Metric)
- 49.21 L
- Fuel Tank Capacity (Imperial)
- 13.0 U.S. gal.
Wheel Motor And Reel Drive1 specifications
- Traction Drive
- Hydrostatic pump to wheel motors; GRIP All-Wheel Drive Traction System engaged during transport and mow
Operator Controls6 specifications
- Steering
- Hydraulic power with double acting steering cylinder
- Lift And Lower Of Cutting Units
- One-touch single handle
- Mower Engagement
- Hand lever
- Throttle
- Hand throttle
- Park Brake
- Electric Switch on Command Arm for Internal Wet Disk Brakes
- Ignition
- Key start
Weight And Dimensions6 specifications
- Wheelbase (Metric)
- 152.4 cm
- Wheelbase (Imperial)
- 60.0 in.
- Cutting Width (Metric)
- 68 cm
- Cutting Width (Imperial)
- 68 in.
- Weight (Full Fluids, No Operator, No Fuel), 26 in. Units Raised (Metric)
- 1190.0 kg
- Weight (Full Fluids, No Operator, No Fuel), 26 in. Units Raised (Imperial)
- 1190.0 lb.
Mower8 specifications
- Number
- 3 Rotary decks No Tool Adjustment
- Mower Size (Metric)
- 68.6 cm
- Mower Size (Imperial)
- 27.0 in.
- Backlapping
- Standard
- Reel Diameter (Metric)
- 17.8 cm
- Reel Diameter (Imperial)
- 7.0 in.
- Bedknife Adjustment
- Reel-to-bedknife
- Certification
- CE and ANSI B71.4-2004
