John Deere

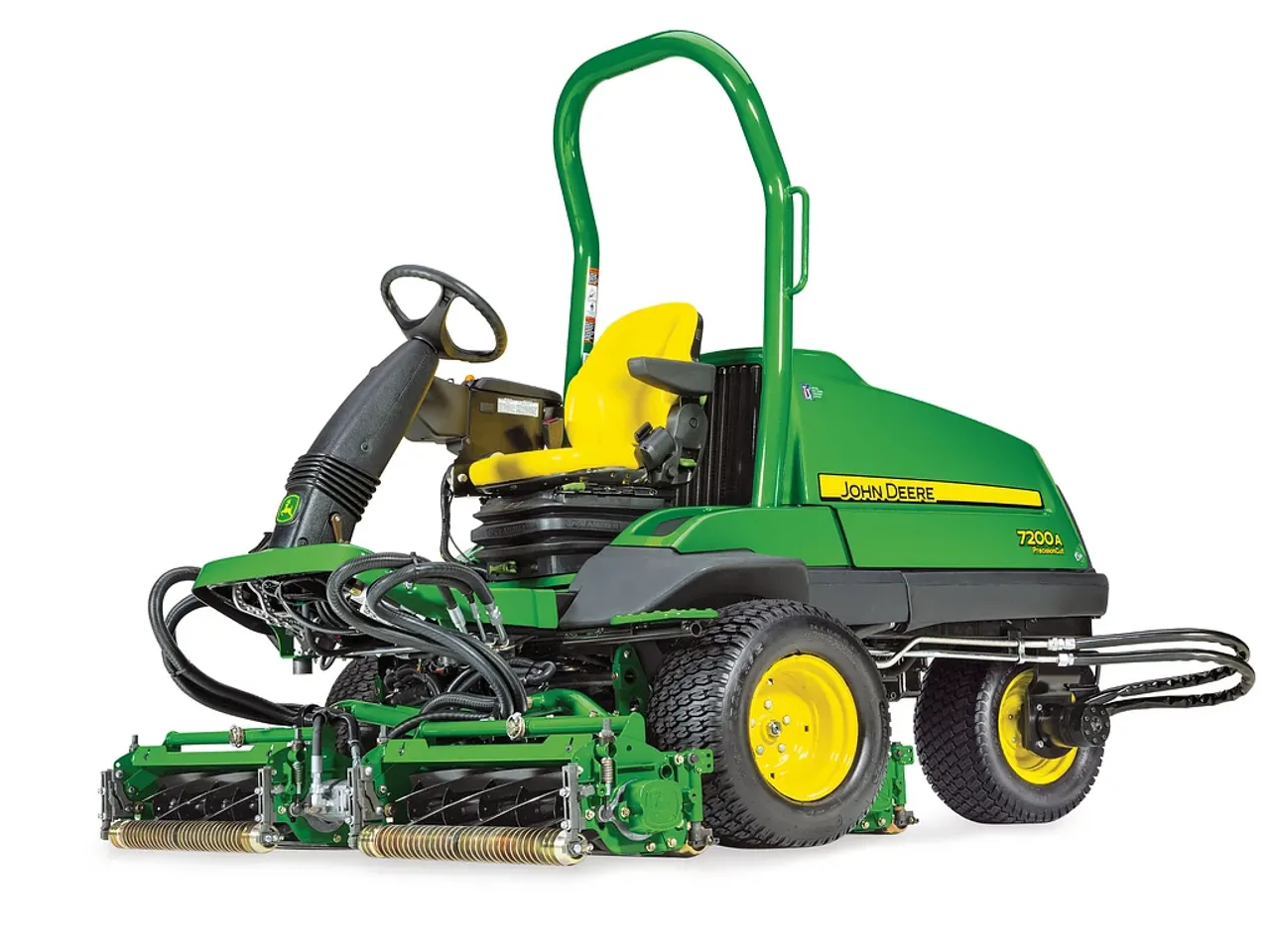

7200A PrecisionCut™ Trim and Surrounds Mower
Rough
7200A PrecisionCut mower features GRIP all-wheel traction, TechControl™, reel cutting units, and service-friendly design for trim mowing.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 176ATC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs19 specifications
- Maximum Engine Power (Other)
- 2600.0 rpm
- Maximum Engine Power (Metric)
- 15.8 kW
- Maximum Engine Power (Imperial)
- 21.2 hp
- Drive Pump
- Gear
- Ground Pressure (Metric)
- 96.5 kPa
- Ground Pressure (Imperial)
- 14 psi
- Throttle
- Hand throttle
- Wheelbase (Metric)
- 157.5 cm
- Wheelbase (Imperial)
- 62.0 in.
- Ground Speed Mowing (Metric)
- 10.0 km/h
- Ground Speed Mowing (Imperial)
- 6.0 mph
- Cutting Unit Size (Metric)
- 66.0 cm
- Cutting Unit Size (Imperial)
- 26.0 in.
- Cutting Width (Imperial)
- 72.0 in.
- Cutting Width (Metric)
- 183.0 cm
- Height Of Cut
- Construction Five or eight blades
- Frequency of clip (FOC Reels) OR Blade tip speed (decks)
- Rollers Optional: grooved, solid, or spiral: 7.5 cm 3 in. Eight Blade: 1.99 mm/km/h 0.126 in./mph Five Blade: 3.17 mm/km/h 0.201 in./mph
- Reel Diameter (Metric)
- 17.8 cm
- Reel Diameter (Imperial)
- 7.0 in.
Engine11 specifications
- Type
- In-Direct Inject Diesel
- Engine Type
- In-Direct Inject Diesel
- Maximum Engine Power (Other)
- 2600.0 rpm
- Maximum Engine Power (Metric)
- 15.8 kW
- Maximum Engine Power (Imperial)
- 21.2 hp
- Cylinders
- 3
- Displacement (Metric)
- 1.267 L
- Displacement (Imperial)
- 77.32 cu in.
- Air Cleaner
- 2-stage dry element
- Fuel
- Diesel
- Cooling System
- Liquid centrifugal pump; forward machine location for optimum cooling
Vehicle12 specifications
- Drive Pump
- Gear
- Hydraulic System Capacity (Metric)
- 45.4 L
- Hydraulic System Capacity (Imperial)
- 12.0 U.S. gal.
- Fuel Tank Capacity (Metric)
- 45.4 L
- Fuel Tank Capacity (Imperial)
- 12.0 U.S. gal.
- Steering
- Tilt; Hydraulic power with double acting steering cylinder
- Front Drive Tires
- 24 x 12 - 12 turf trac
- Steering Tires
- 24 x 12 - 12 multi trac
- Ground Pressure (Metric)
- 96.5 kPa
- Ground Pressure (Imperial)
- 14 psi
- Brakes
- Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system
- ROPS
- Standard; meets ISO 21299 Standard
Operating Weight1 specifications
- Cutting Units Lowered
- 1039 kg 2290 lb
Controls10 specifications
- Throttle
- Hand throttle
- Forward/Reverse
- One-touch single handle
- Mower Lift
- Electric Switch on CommandArm for Internal Wet Disk Brakes
- Parking Brake
- Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment
- Seat
- Electric Switch on Command Arm
- PTO
- Electric Switch on Command Arm
- Ignition
- Key start
- Work Lights
- Switch on Command Arm
- Tilt Steering
- Left foot operated for easy adjustment
- Storage
- Cup holder; two-way radio; large operator storage located on left hand side of operator station
Dimensions13 specifications
- Height With ROPS (Metric)
- 213.4 cm
- Height With ROPS (Imperial)
- 84.0 in.
- Length (Metric)
- 338.0 cm
- Length (Imperial)
- 133.0 in.
- Transport Width
- 173 cm 68 in.
- Wheelbase (Metric)
- 157.5 cm
- Wheelbase (Imperial)
- 62.0 in.
- Ground Speed Mowing (Metric)
- 10.0 km/h
- Ground Speed Mowing (Imperial)
- 6.0 mph
- Ground Speed Transport (Metric)
- 14.0 km/h
- Ground Speed Transport (Imperial)
- 9.0 mph
- Ground Speed Reverse (Metric)
- 6.4 km/h
- Ground Speed Reverse (Imperial)
- 5.0 mph
Cutting Units12 specifications
- Number
- 3
- Cutting Unit Size
- Quick Adjust QA7: 66 cm (26 in.) or QA7: 76 cm (30 in.)
- Cutting Unit Size (Metric)
- 66.0 cm
- Cutting Unit Size (Imperial)
- 26.0 in.
- Cutting Width (Imperial)
- 72.0 in.
- Cutting Width (Metric)
- 183.0 cm
- Height Of Cut
- Construction Five or eight blades
- Frequency of clip (FOC Reels) OR Blade tip speed (decks)
- Rollers Optional: grooved, solid, or spiral: 7.5 cm 3 in. Eight Blade: 1.99 mm/km/h 0.126 in./mph Five Blade: 3.17 mm/km/h 0.201 in./mph
- Reel Diameter (Metric)
- 17.8 cm
- Reel Diameter (Imperial)
- 7.0 in.
- Bedknife Adjustment
- Reel-to-bedknife
- Backlapping
- Standard
Sound Levels3 specifications
- Operator Ear Full Engine RPM
- 87.0 dBA
- Measuring Standard
- ISO 11201, EN ISO5395-1
- Attachments Installed
- FTCs, reels engaged
Fuel Economy1 specifications
- Actual Fuel Usage Will Vary Depending On Course Conditions, Operation, Turf And Fuel Quality
- 25% load: 1.74 L/hr 0.46 gph 40% load 2.65 L/hr 0.7 gph 50% load: 3.03 L/hr 0.8 gph
Warranty1 specifications
- Type
- In-Direct Inject Diesel
Certification1 specifications
- Type
- In-Direct Inject Diesel
