John Deere

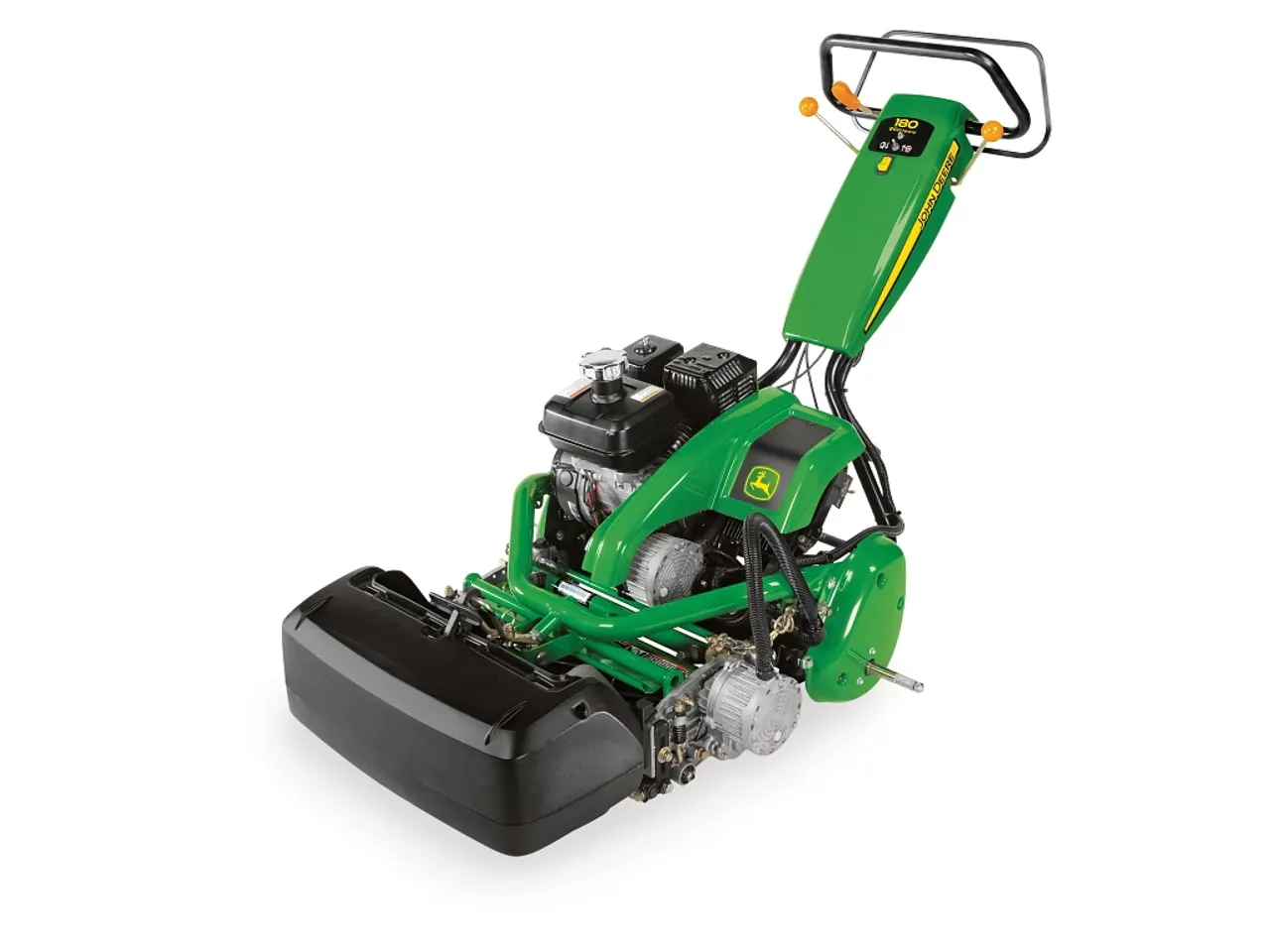

Model180 E-Cut™ Hybrid Walk Greens Mower
Greens Mowers
Explore the John Deere 180 E-Cut Hybrid Walk Greens Mower featuring electric reel drive, QA5 cutting units, adjustable Frequency of Clip, and dual traction rolls for greens maintenance applications.
Model / part number: 5547M
Key specifications
- Engine Type
- Air-cooled, Gas
- Horsepower (Metric)
- 2.4 kW
- Cutting Width (Metric)
- 45.7 cm
- Frequency of Clip Standard
- Variable with 5 settings 11 Blade 4.1, 4.6, 5.6, 9.7, 12.2; 14 Blade 3.2, 3.6, 4.4, 7.6, 9.6 mmVariable with 5 settings 11 Blade 0.162, 0.180, 0.220, 0.380, 0.480; 14 Blade 0.120, 0.140, 0.180, 0.300, 0.380 in.
Technical specifications
92 specifications
Key Specs18 details
- Engine Type
- Air-cooled, Gas
- Horsepower (Metric)
- 2.4 kW
- Horsepower (Imperial)
- 3.2 hp
- Cutting Width (Metric)
- 45.7 cm
- Cutting Width (Imperial)
- 18.0 in.
- Frequency of Clip Standard
- Variable with 5 settings 11 Blade 4.1, 4.6, 5.6, 9.7, 12.2; 14 Blade 3.2, 3.6, 4.4, 7.6, 9.6 mmVariable with 5 settings 11 Blade 0.162, 0.180, 0.220, 0.380, 0.480; 14 Blade 0.120, 0.140, 0.180, 0.300, 0.380 in.
- Reel Diameter (Metric)
- 127.0 mm
- Reel Diameter (Imperial)
- 5.0 in.
- Number Of Blades
- 11 or 14 blade
- Brush
- Interlocked with reel, rotation in reverse direction; 2-3/8-in. (60-mm) diameter nylon
- Brush (Metric)
- 60.0 mm
- Brush (Imperial)
- 2.375 in.
- Traction Drum
- Dual, aluminum
- Forward Speed With Transport Wheels at 3000 Engine RPM (Metric)
- 7.2 km/h
- Forward Speed With Transport Wheels at 3000 Engine RPM (Imperial)
- 4.5 mph
- Weight (Less GTCs, Gear Drive And Transport Wheel With Catcher) (Metric)
- 113.0 kg
- Weight (Less GTCs, Gear Drive And Transport Wheel With Catcher) (Imperial)
- 249.0 lb.
- Operator Ear
- 79.0 dBA
Engine13 details
- Engine Type
- Air-cooled, Gas
- Cycle
- 4-cycle
- Bore And Stroke (Metric)
- 60x42 mm
- Bore And Stroke (Imperial)
- 2.36x1.65 in.
- Piston Displacement (Metric)
- 122.0 cc
- Piston Displacement (Imperial)
- 7.4 cu in.
- Compression Ratio
- 8.5:1
- Horsepower (Metric)
- 2.4 kW
- Horsepower (Imperial)
- 3.2 hp
- Direction Of Rotation Of Output Shaft
- Counterclockwise viewed from shaft side
- Inclination Limit
- Tilted up to 20 degrees in any direction
- Idle Speed At Output Shaft
- 1400 (+/- 150) rpm
- Maximum Speed At Output Shaft
- 2950 (+/- 150) rpm
Fuel3 details
- Type
- Regular grade unleaded or leaded
- Tank Capacity (Metric)
- 2.5 L
- Tank Capacity (Imperial)
- 0.66 U.S. gal.
Oil5 details
- Type
- SAE 30 or SAE 10W-30
- Capacity (Metric)
- 0.6 L
- Capacity (Imperial)
- 0.63 U.S. qt
- Differential Drive Capacity (Metric)
- 0.14 L
- Differential Drive Capacity (Imperial)
- 0.3 U.S. qt
Cutting Equipment15 details
- Cutting Width (Metric)
- 45.7 cm
- Cutting Width (Imperial)
- 18.0 in.
- Cutting Height (Minimum) Standard 3.0 mm Bedknife (Metric)
- 3.2 mm
- Cutting Height (Minimum) Standard 3.0 mm Bedknife (Imperial)
- 0.125 in.
- Cutting Height (Maximum) Standard 3.0 mm Bedknife (Metric)
- 22.0 mm
- Cutting Height (Maximum) Standard 3.0 mm Bedknife (Imperial)
- 0.875 in.
- Cutting Height (Minimum) Optional 2.5 mm Bedknife (Metric)
- 2.5 mm
- Cutting Height (Minimum) Optional 2.5 mm Bedknife (Imperial)
- 0.098 in.
- Cutting Height (Maximum) Optional 2.5 mm Bedknife (Metric)
- 22.0 mm
- Cutting Height (Maximum) Optional 2.5 mm Bedknife (Imperial)
- 0.875 in.
- Cutting Height (Minimum) Optional 2.0 mm Bedknife (Metric)
- 2.0 mm
- Cutting Height (Minimum) Optional 2.0 mm Bedknife (Imperial)
- 0.078 in.
- Cutting Height (Maximum) Optional 2.0 mm Bedknife (Metric)
- 22.0 mm
- Cutting Height (Maximum) Optional 2.0 mm Bedknife (Imperial)
- 0.875 in.
- Frequency of Clip Standard
- Variable with 5 settings 11 Blade 4.1, 4.6, 5.6, 9.7, 12.2; 14 Blade 3.2, 3.6, 4.4, 7.6, 9.6 mmVariable with 5 settings 11 Blade 0.162, 0.180, 0.220, 0.380, 0.480; 14 Blade 0.120, 0.140, 0.180, 0.300, 0.380 in.
Reel4 details
- Reel Diameter (Metric)
- 127.0 mm
- Reel Diameter (Imperial)
- 5.0 in.
- Number Of Blades
- 11 or 14 blade
- Material
- Heat-treated chromium molydenum steel
Optional Rotary Brush And Greens Tender™ Conditioner (GTC)7 details
- Brush
- Interlocked with reel, rotation in reverse direction; 2-3/8-in. (60-mm) diameter nylon
- Brush (Metric)
- 60.0 mm
- Brush (Imperial)
- 2.375 in.
- Adjustable Brush or Cutter Height
- Brush even with height-of-cut; GTC below height-of-cut maximum: 0.8 mm0.0313 in.
- Adjustable Brush or Cutter Height (Metric)
- 0.8 mm
- Adjustable Brush or Cutter Height (Imperial)
- 0.0313 in.
- Gear Drive
- Gear driven from reel shaft, opposite direction of reel, rotation powers brush or GTC vertical cutter
Grass Catcher3 details
- Size (Metric)
- 3200 kg
- Size (Imperial)
- 7000 lb.
- Type
- Polyethylene
Clutches4 details
- Transport
- Belt tension
- Reel Jaw Type Clutch
- On/off
- Brush/GTC Jaw Type Clutch
- On/off
- Traction Drum
- Dual, aluminum
Traveling Device8 details
- Forward Speed With Transport Wheels at 3000 Engine RPM (Metric)
- 7.2 km/h
- Forward Speed With Transport Wheels at 3000 Engine RPM (Imperial)
- 4.5 mph
- Rear Roller
- Aluminum, diameter: 190 mm7.5 in.
- Rear Roller Diameter (Metric)
- 190.0 mm
- Rear Roller Diameter (Imperial)
- 7.5 in.
- Front Roller (Grooved or Smooth)
- Machined steel, diameter: 50 mm2 in.for cutting height adjustment
- Front Roller (Grooved or Smooth) Diameter (Metric)
- 50.0 mm
- Front Roller (Grooved or Smooth) Diameter (Imperial)
- 2.0 in.
Dimensions8 details
- Length (With Tires Installed) (Metric)
- 99.0 cm
- Length (With Tires Installed) (Imperial)
- 39.0 in.
- Width (With Tires Installed) (Metric)
- 94.6 cm
- Width (With Tires Installed) (Imperial)
- 37.25 in.
- Height (With Tires Installed) (Metric)
- 119.0 cm
- Height (With Tires Installed) (Imperial)
- 47.0 in.
- Weight (Less GTCs, Gear Drive And Transport Wheel With Catcher) (Metric)
- 113.0 kg
- Weight (Less GTCs, Gear Drive And Transport Wheel With Catcher) (Imperial)
- 249.0 lb.
Certificate1 detail
- Type
- ANSI B71.4-2004
Sound Levels3 details
- Operator Ear
- 79.0 dBA
- Measuring Standard
- ISO 11201
- Attachments Installed
- GTCs, reels engaged
