John Deere

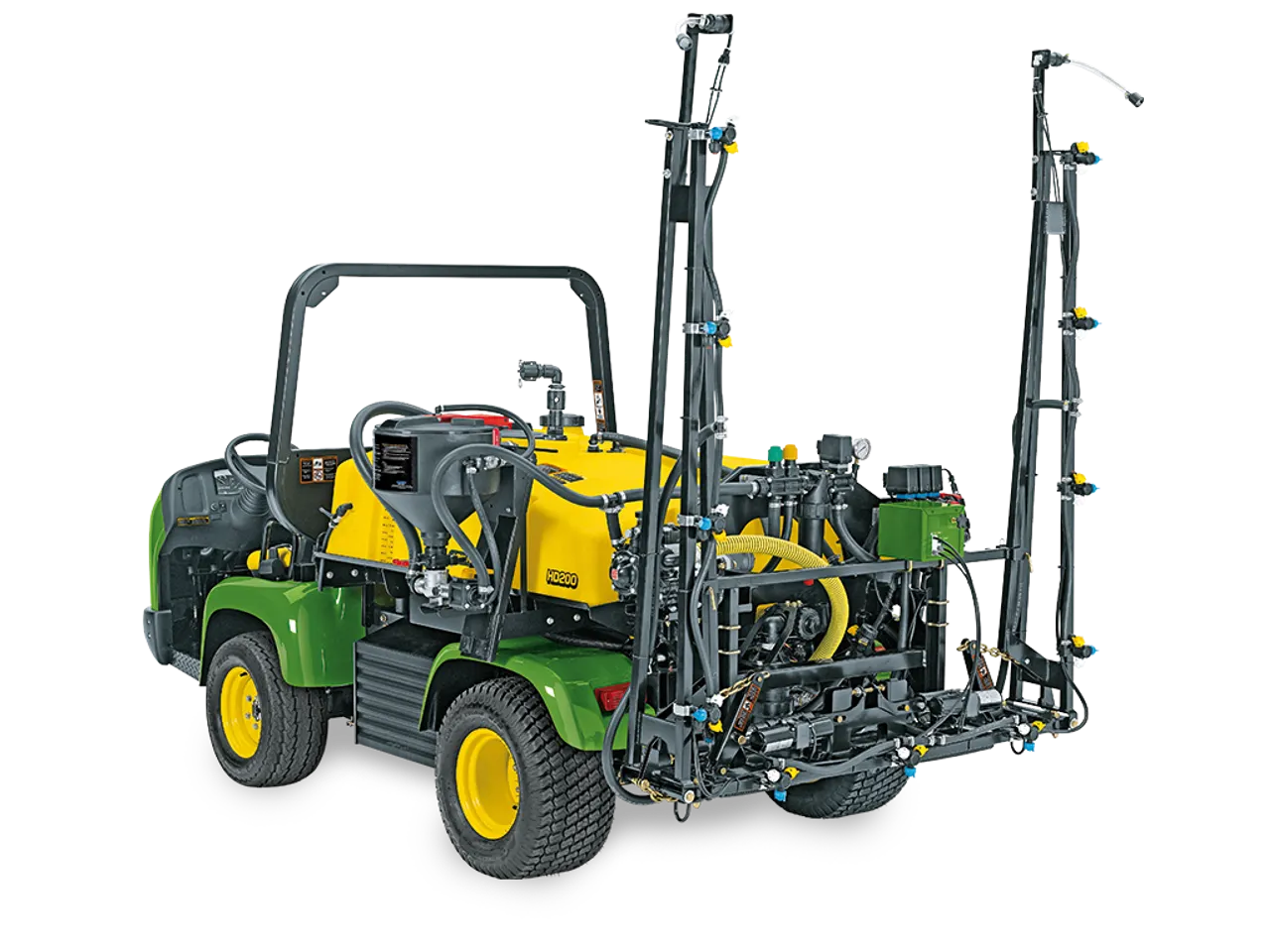

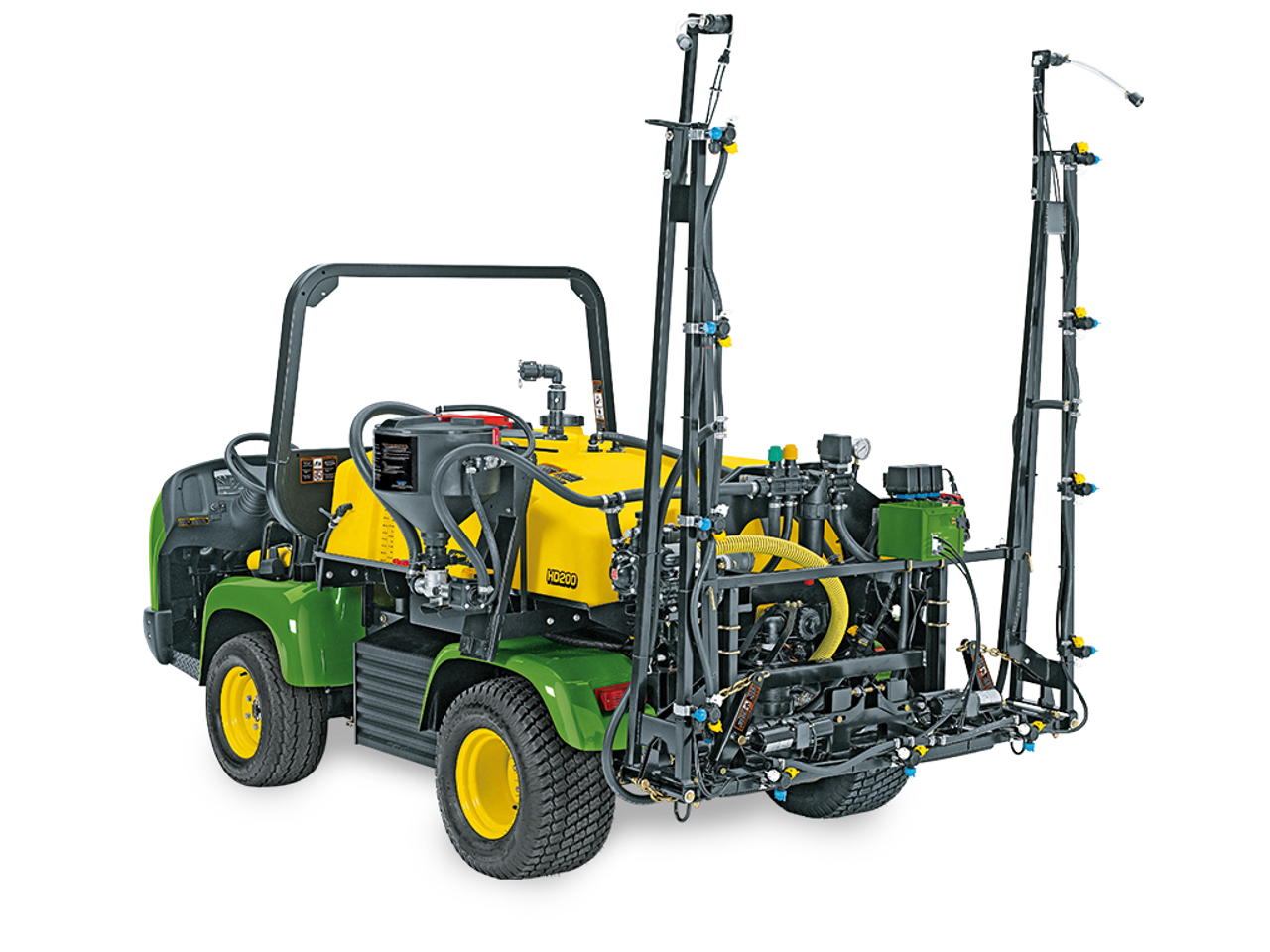

HD200 SelectSpray Sprayer
Golf and Sports Equipment
HD200 SelectSpray™ Sprayer delivers precise turf application with integrated triple nozzle bodies, breakaway booms, easy leveling, and flexible rate-control options.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 3761TC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications

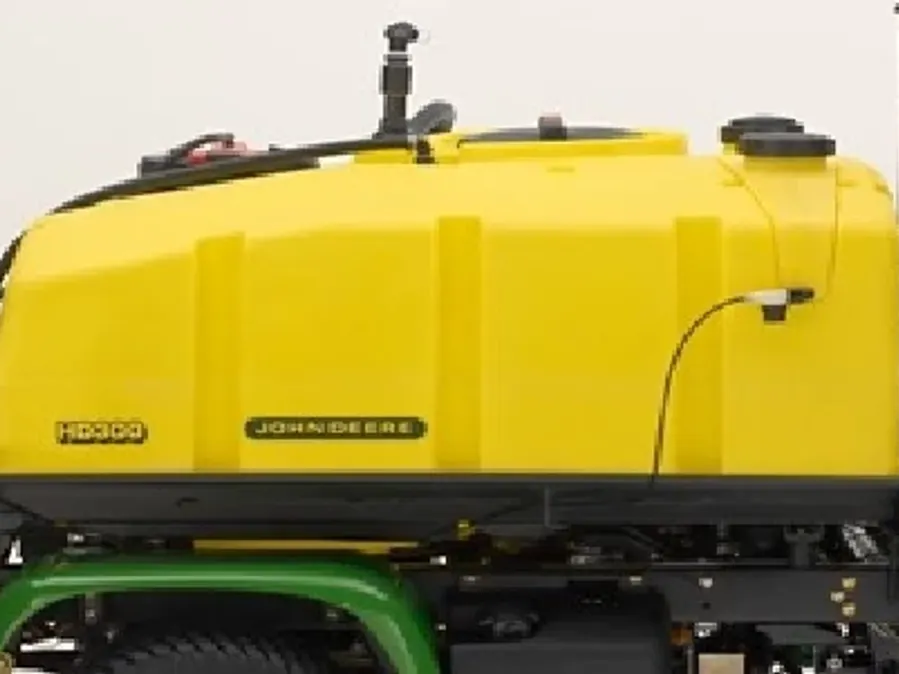

- Spray Tank Rated Capacity (Gross) (Metric)
- 757.0 L
- Spray Tank Rated Capacity (Gross) (Imperial)
- 200.0 gal.
- Spray Tank Rated Capacity (Net) (Metric)
- 700.0 L
- Spray Tank Rated Capacity (Net) (Imperial)
- 185.0 gal.
- Diaphragm Pump Max Flow
- 113.9 L/min
- Diaphragm Pump Max Flow (Imperial)
- 30.1 gpm
- 15 ft/21 ft Boom Width (Wings Raised) (Metric)
- 252.0 cm
- 15 ft/21 ft Boom Width (Wings Raised) (Imperial)
- 99.0 in.
Machine10 specifications
- Frame
- Welded steel
- Spray Tank Rated Capacity (Gross) (Metric)
- 757.0 L
- Spray Tank Rated Capacity (Gross) (Imperial)
- 200.0 gal.
- Spray Tank Rated Capacity (Net) (Metric)
- 700.0 L
- Spray Tank Rated Capacity (Net) (Imperial)
- 185.0 gal.
- Agitation
- Jet agitation adjusted by proportional control valve; Orifice: 7.9 mm (0.313 in.)
- Pressure/Flow Regulator
- Electric
- Filter
- 100 mesh, self-cleaning
- Boom Shutoff Valves
- Electric
- Throttling Valves
- Standard; adjustable
Rinse Kit4 specifications
- Rinse Tank Capacity (Gross) (Imperial)
- 200.0 gal.
- Rinse Tank Capacity (Gross) (Metric)
- 75.0 L
- Rinse Tank Capacity (Net) (Imperial)
- 185.0 gal.
- Rinse Tank Capacity (Net) (Metric)
- 700.0 L

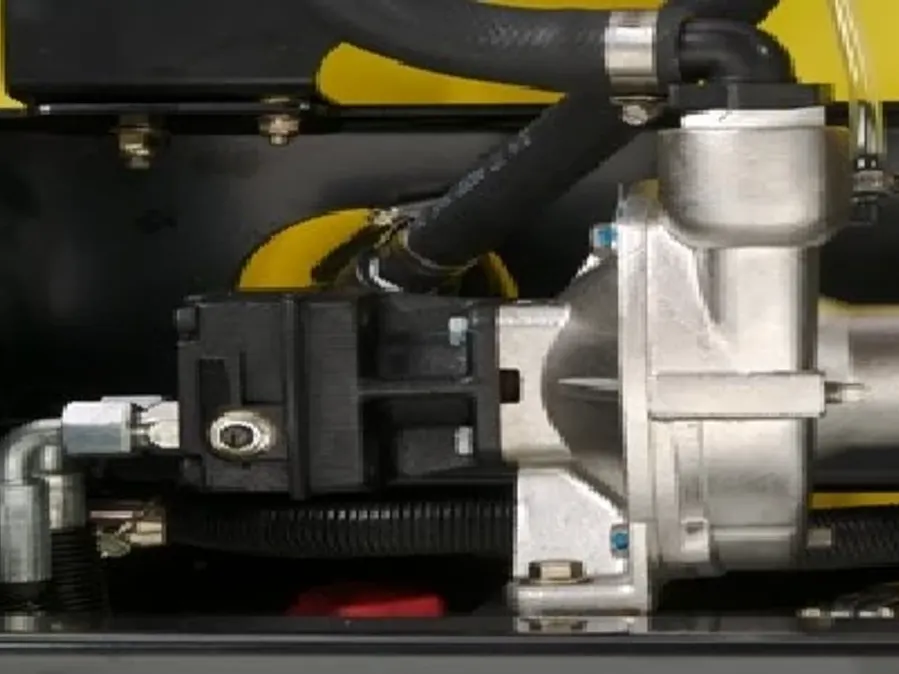

Diaphragm Pump8 specifications
- Number Of Diaphragms
- 3
- Lubrication
- Oil
- Diaphragm Pump Max Flow
- 113.9 L/min
- Diaphragm Pump Max Flow (Imperial)
- 30.1 gpm
- Max Pressure (Metric)
- 20.0 bar
- Max Pressure (Imperial)
- 290.0 psi
- Relief Pressure (Metric)
- 13.8 bar
- Relief Pressure (Imperial)
- 200.0 psi

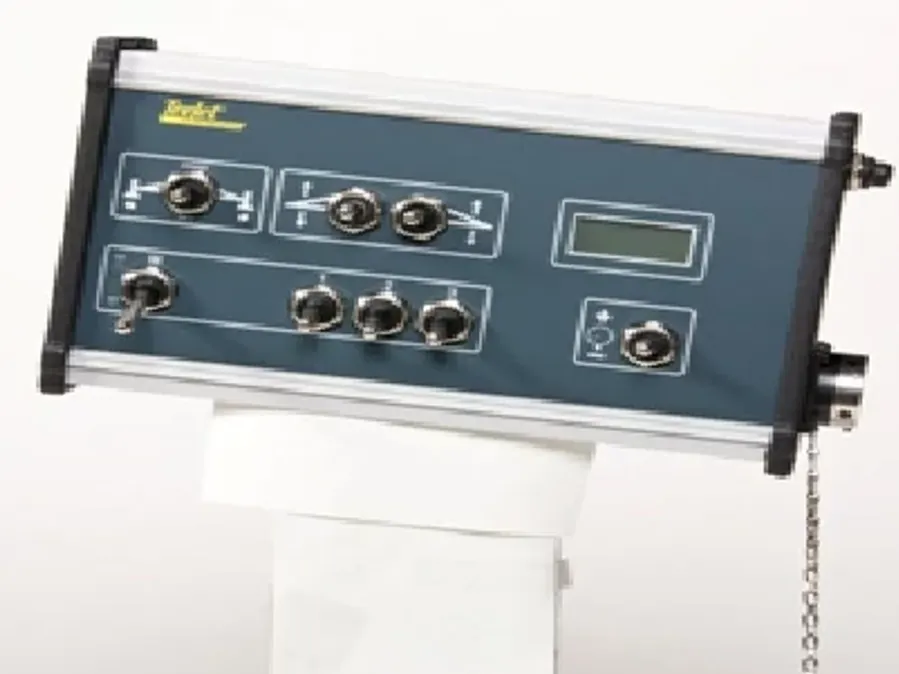

Automatic Rate Controller6 specifications
- Type
- Weather-resistant control box with electronic control switches and digital pressure display; removable without tools for storage
- Switches On Control Box
- Individual boom on/off, boom master, foam marker, boom lift/lower, pressure increase/decrease, auto/manual
- Pressure Sensor (Imperial)
- 363.0 psi
- Pressure Sensor (Metric)
- 25.0 bar
- Gauges
- Digital speed, digital pressure, digital tank sight gauge, and digital flow rate on rate controller screen
- Rate Control
- Constant pressure or constant flow

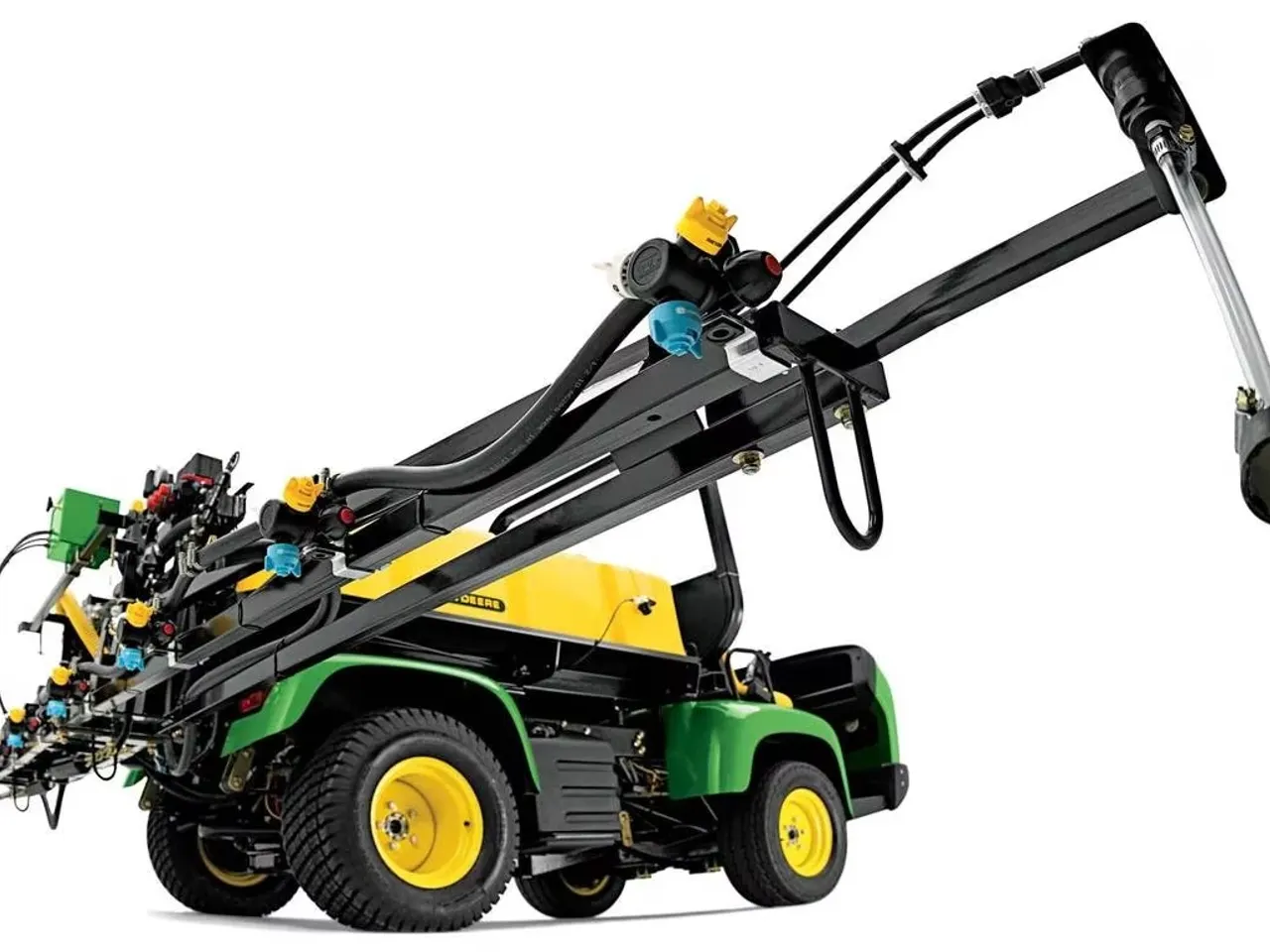

Booms12 specifications
- Construction (Other)
- Heavy-duty square tubing: 14 gauge
- Construction (Imperial)
- 1.897 mm
- Construction (Metric)
- 0.747 in.
- Number Of Sections
- 3
- Breakaway
- Bidirectional
- Boom Height
- Adjustable
- Lift Systems
- Electro-hydraulic standard
- Width (Metric)
- 5.5, 4.6/6.4 m
- Width (Imperial)
- 18, 15/21 ft
- Nozzle Configuration (Other)
- Triple-nozzle bodies
- Nozzle Configuration (Metric)
- 50.8 cm
- Nozzle Configuration (Imperial)
- 20.0 in.
Foam Marker3 specifications
- Type
- Electric
- Pump
- Individual air and liquid pumps, solution mixes at foamer head
- Rate
- Adjustable with no tools by turning rotary knob on foamer box
Mounting2 specifications
- Removal
- Three pins, three electrical connectors, two hydraulic lines for easy removal with no tools
- Storage
- Optional storage stands
Dimensions (18-ft Boom)6 specifications
- Boom Height (Wings Raised) (Metric)
- 228.0 cm
- Boom Height (Wings Raised) (Imperial)
- 90.0 in.
- 18 ft Boom Width (Wings Raised) (Metric)
- 180.0 cm
- 18 ft Boom Width (Wings Raised) (Imperial)
- 71.0 in.
- Boom Width (Wings Lowered) (Metric)
- 514.0 cm
- Boom Width (Wings Lowered) (Imperial)
- 203 in.
Dimensions (15-ft/21-ft boom)10 specifications
- Boom Height (Wings Raised And Extensions Folded) (Metric)
- 178.0 cm
- Boom Height (Wings Raised And Extensions Folded) (Imperial)
- 70.0 in.
- Boom Width (Wings Raised And Extensions Folded) (Metric)
- 252.0 cm
- Boom Width (Wings Raised And Extensions Folded) (Imperial)
- 99.0 in.
- 15 ft/21 ft Boom Width (Wings Raised) (Metric)
- 252.0 cm
- 15 ft/21 ft Boom Width (Wings Raised) (Imperial)
- 99.0 in.
- Boom Width (Wings Lowered And Extensions Folded) (Metric)
- 478.0 cm
- Boom Width (Wings Lowered And Extensions Folded) (Imperial)
- 188.0 in.
- Boom Width (Wings Lowered And Extensions Extended) (Metric)
- 615.0 cm
- Boom Width (Wings Lowered And Extensions Extended) (Imperial)
- 242.0 in.
