John Deere

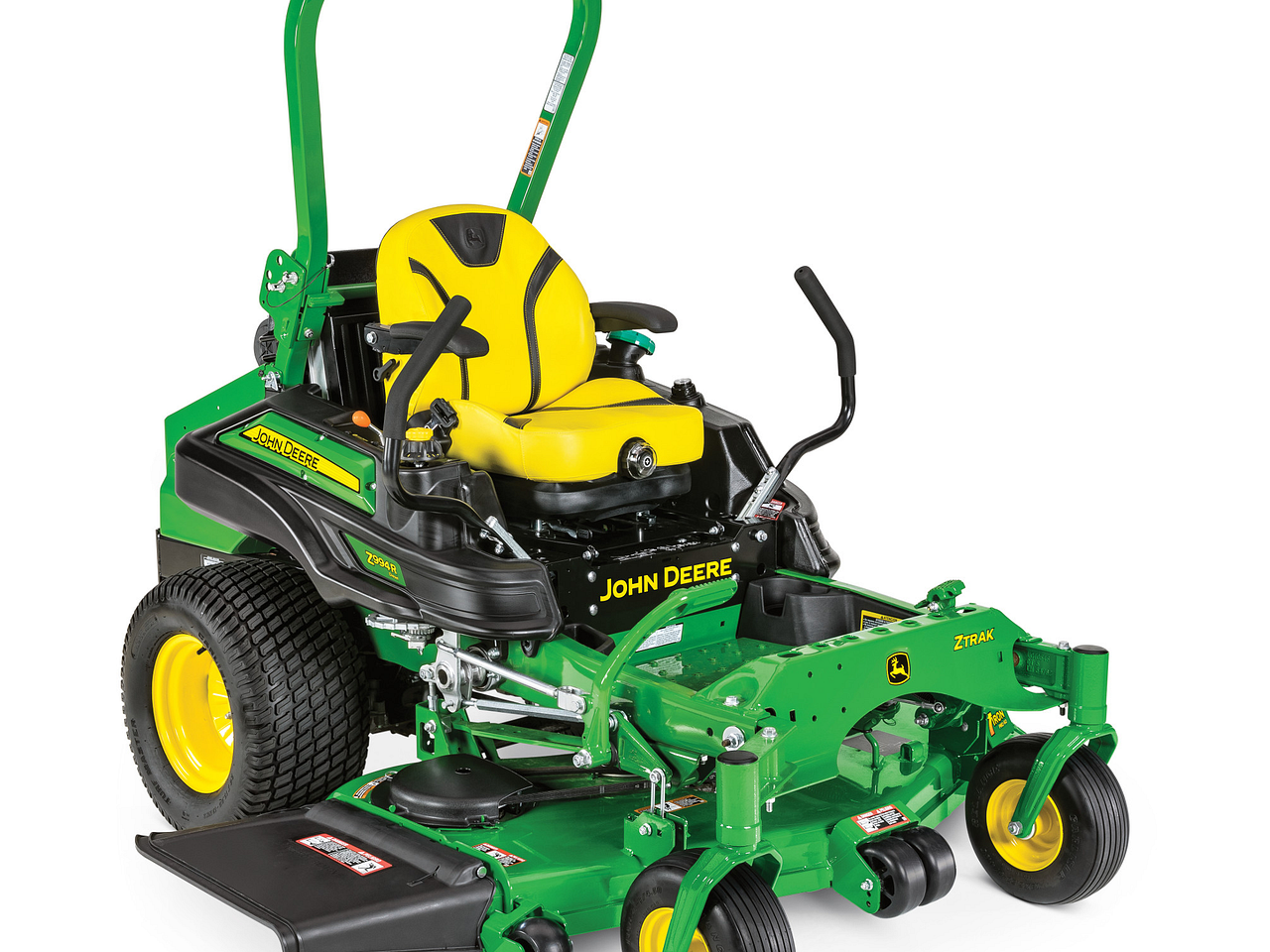

Z994R Diesel Commercial ZTrak Region 2 ZTrak™ Zero-Turn Mower
Commercial Zero-Turn Mowers
Z994R Diesel ZTrak mower with ComfortGlide suspension, transmission cooling features, and 7-Iron PRO deck options.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 2546TC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Engine Manufacturer/Model
- 3TNV80F
- Engine Power
- Gross at 3,200 rpm, PS: 24.7 hp 18.4 kW
- Fuel Tank Capacity (Imperial)
- 11.5 U.S. gal.
- Fuel Tank Capacity (Metric)
- 43.5 L
- Transmission
- Dual hydrostatic wheel drive TuffTorq heavy-duty ground drive with cross porting for improved cooling
- Speed Range (Imperial)
- 11.4 mph
- Speed Range (Metric)
- 18.3 km/h
- Warranty
- 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
- Drive Wheels
- 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires
- Mower Deck Size
- Side discharge, 54 in. 137 cm Side discharge, 60 in. 152 cm Side discharge, Mulch On Demand, 60 in.
- Blade Tip Speed
- Approximately 16,000 fpm 4,877 m/min
- Caster Wheels
- 13x5.0-6
Engine12 specifications
- Engine Manufacturer/Model
- 3TNV80F
- Engine Power
- Gross at 3,200 rpm, PS: 24.7 hp 18.4 kW
- Displacement (Imperial)
- 77.3 cu in.
- Displacement (Metric)
- 1270.0 cc
- Cylinders
- 3
- Crankcase Capacity (Imperial)
- 3.6 U.S. qt
- Crankcase Capacity (Metric)
- 3.4 L
- Oil Filter
- Full flow, replaceable, spin-on type
- Lubrication
- Full pressure
- Cooling
- Liquid
- Air Cleaner
- Pre-cleaner Yes Heavy-duty canister, dry type with safety element and air-restriction indicator
- Pre Cleaner
- Yes
Fuel System4 specifications
- Fuel Type
- Diesel or Biodiesel (up to B20)
- Fuel Tank Capacity (Imperial)
- 11.5 U.S. gal.
- Fuel Tank Capacity (Metric)
- 43.5 L
- Fuel Tank Switch/Shut Off Valve
- Yes
Electrical System6 specifications
- Charge System
- 75.0 amp
- Battery Voltage
- 12.0 V
- Cold Cranking Amp
- 600.0 amp
- Cold Cranking Amp At 18 Degrees C
- 600.0 amp
- Hour Meter
- Digital multi-function display
- Operator Presence Starting System
- Standard
Drivetrain14 specifications
- Transmission
- Dual hydrostatic wheel drive TuffTorq heavy-duty ground drive with cross porting for improved cooling
- Travel Speed (Imperial)
- 11.4 mph
- Travel Speed (Metric)
- 18.3 km/h
- Speed Range (Imperial)
- 11.4 mph
- Speed Range (Metric)
- 18.3 km/h
- Forward Speed (Imperial)
- 11.4 mph
- Forward Speed (Metric)
- 18.3 km/h
- Reverse Speed (Imperial)
- 4.5 mph
- Reverse Speed (Metric)
- 7.2 km/h
- Speed Direction And Control
- Zero turn
- Hydraulic Capacity (Imperial)
- 5.9 U.S. qt
- Hydraulic Capacity (Metric)
- 5.6 L
- Hydraulic Oil Cooler
- Fins and fan
- Filter
- Internal, replaceable
Buyer's note1 specifications
- Warranty
- 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
Tires3 specifications
- Drive Wheels
- 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires
- Rear Tires
- 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires
- Load Rating
- 4 PR
Brakes3 specifications
- Dynamic Braking
- Twin motion control levers
- Park Brake
- Internal wet disk integrated in the transmission
- Park Brake Actuation
- Foot brake engagement also brings steering levers to the neutral position
PTO2 specifications
- Type
- Electric clutch
- Drive
- V-belt
Mower Decks10 specifications
- Mower Deck Size
- Side discharge, 54 in. 137 cm Side discharge, 60 in. 152 cm Side discharge, Mulch On Demand, 60 in.
- Deck Construction
- One-piece stamped steel with reinforcements
- Deck Thickness
- 7 gauge 0.18 in. 4.6 mm
- Discharge
- Side-discharge, Side-discharge, Mulch On Demand
- Height Of Cut Range (Imperial)
- 1-5.5 in.
- Height Of Cut Range (Metric)
- 2.54-14 cm
- Height Of Cut Increments (Imperial)
- 0.25 in.
- Height Of Cut Increments (Metric)
- 0.64 cm
- Cutting Width (Imperial)
- 60 in.
- Cutting Width (Metric)
- 137. 152 cm
Blades4 specifications
- Length
- Varies by deck size
- Thickness
- 0.25 in. 0.64 cm
- Blade Tip Speed
- Approximately 16,000 fpm 4,877 m/min
- Number
- 3
Wheels4 specifications
- Caster Wheel Type
- Flat free
- Caster Wheels
- 13x5.0-6
- Front Anti Scalp Rollers
- LH, RH, Center
- Rear Anti Scalp Rollers
- Standard
Dimensions7 specifications
- Length
- 88.6 in. 228 cm
- Width With Chute Down (Imperial)
- 68, 74 in.
- Width With Chute Down (Metric)
- 172.7, 188 cm
- Height With ROPS Up (Imperial)
- 73.0 in.
- Height With ROPS Up (Metric)
- 185.0 cm
- Weight (Imperial)
- 1660 - 1700 - 1720 lb.
- Weight (Metric)
- 753 - 771 - 780 kg
Additional Information1 specifications
- Date Collected
- 2019-02-12T00:00:00
