John Deere

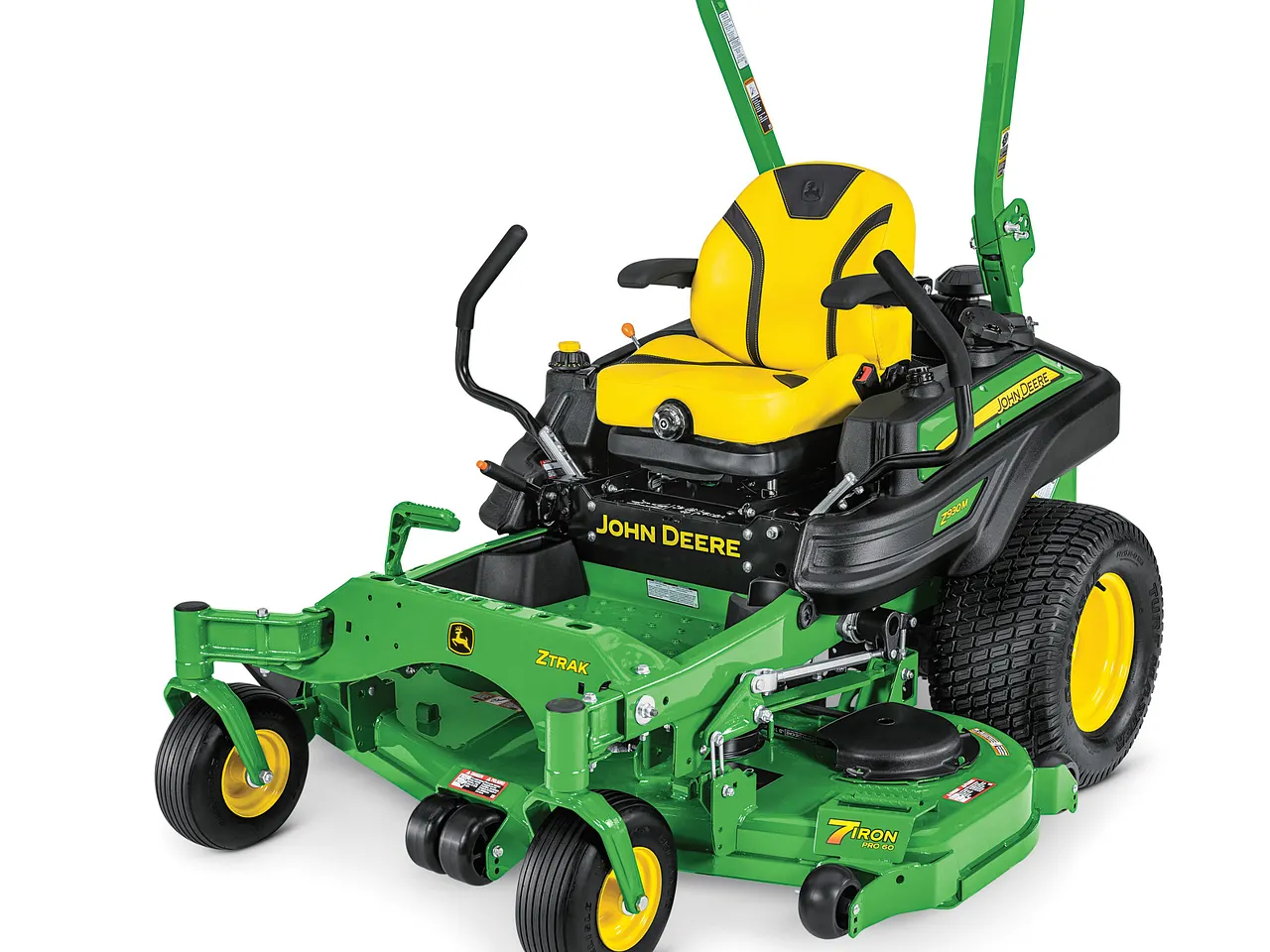

Z930M ZTrak™ Zero-Turn Mower
Commercial Zero-Turn Mowers
Z930M ZTrak zero-turn mower with 7-Iron PRO deck, gasoline EFI engine, available Mulch On Demand, and propane option.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 216ETC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Manufacturer/Model
- FX801V
- Engine Power
- At 3,600 rpm, 26.5 hp 19.7 kW
- Fuel Tank Capacity (Imperial)
- 11.5 U.S. gal.
- Fuel Tank Capacity (Metric)
- 43.5 L
- Speed Range (Imperial)
- 0-12 mph mph
- Speed Range (Metric)
- 0-19.3 km/h km/h
- Drive Wheels
- 24x12-12 (54 in., 60 in.)
- Mower Deck Size
- 60 in. 152 cm
- Blade Tip Speed
- Approximately 18,000 fpm 5,486 m/min
- Caster Wheels
- 13x6.5-6
Engine12 specifications
- Engine Manufacturer/Model
- FX801V
- Engine Power
- At 3,600 rpm, 26.5 hp 19.7 kW
- Displacement (Imperial)
- 52.0 cu in.
- Displacement (Metric)
- 852.0 cc
- Cylinders
- 2
- Crankcase Capacity (Imperial)
- 2.4 U.S. qt
- Crankcase Capacity (Metric)
- 2.3 L
- Oil Filter
- Full flow, replaceable
- Lubrication
- Full pressure
- Cooling
- Air
- Air Cleaner
- Pre-cleaner Yes Heavy-duty canister type with safety element
- Pre Cleaner
- Yes
Fuel System5 specifications
- Fuel Type
- Gasoline
- Fuel Consumption
- Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal. 4.2-7.2 L/hr
- Fuel Tank Capacity (Imperial)
- 11.5 U.S. gal.
- Fuel Tank Capacity (Metric)
- 43.5 L
- Fuel Tank Switch/Shut Off Valve
- Yes
Electrical System5 specifications
- Charge System
- 30.0 amp
- Battery Voltage
- 12.0 V
- Cold Cranking Amp
- 300.0 amp
- Hour Meter
- Standard, digital
- Operator Presence Starting System
- Brake-N-Go (hand)
Drivetrain13 specifications
- Wheel Motors
- Tuff Torq heavy-duty integrated piston wheel motor
- Travel Speed (Imperial)
- 10 mph
- Travel Speed (Metric)
- 16.1 km/h
- Speed Range (Imperial)
- 0-12 mph mph
- Speed Range (Metric)
- 0-19.3 km/h km/h
- Forward Speed (Imperial)
- 0-12 mph mph
- Forward Speed (Metric)
- 0-19.3 km/h km/h
- Reverse Speed (Imperial)
- 0-4.5 mph mph
- Reverse Speed (Metric)
- 0-7.2 km/h km/h
- Speed Direction And Control
- Twin levers
- Hydraulic Capacity (Imperial)
- 5.9 U.S. qt
- Hydraulic Capacity (Metric)
- 5.6 L
- Filter
- Internal, replaceable
Tires2 specifications
- Drive Wheels
- 24x12-12 (54 in., 60 in.)
- Load Rating
- 4 PR
Brakes3 specifications
- Dynamic Braking
- Twin levers
- Park Brake
- Internal wet disk integrated in the transmission
- Park Brake Actuation
- Hand brake
PTO2 specifications
- Type
- Electro-magnetic, 225 lb-ft 305 Nm
- Drive
- V-Belt
Mower Decks10 specifications
- Mower Deck Size
- 60 in. 152 cm
- Deck Construction
- 7-Iron PRO, one-piece stamped steel with reinforcements
- Deck Thickness
- 7 gauge 0.18 in. 4.6 mm
- Discharge
- Side, MOD
- Height Of Cut Range (Imperial)
- 1-5.5 in.
- Height Of Cut Range (Metric)
- 2.54-14 cm
- Height Of Cut Increments (Imperial)
- 0.25 in.
- Height Of Cut Increments (Metric)
- 0.64 cm
- Cutting Width (Imperial)
- 54/60 in.
- Cutting Width (Metric)
- 137/152 cm
Blades4 specifications
- Length
- Varies by deck size
- Thickness
- 0.25 in. 0.64 cm
- Blade Tip Speed
- Approximately 18,000 fpm 5,486 m/min
- Number
- 3
Wheels4 specifications
- Caster Wheel Type
- Flat free
- Caster Wheels
- 13x6.5-6

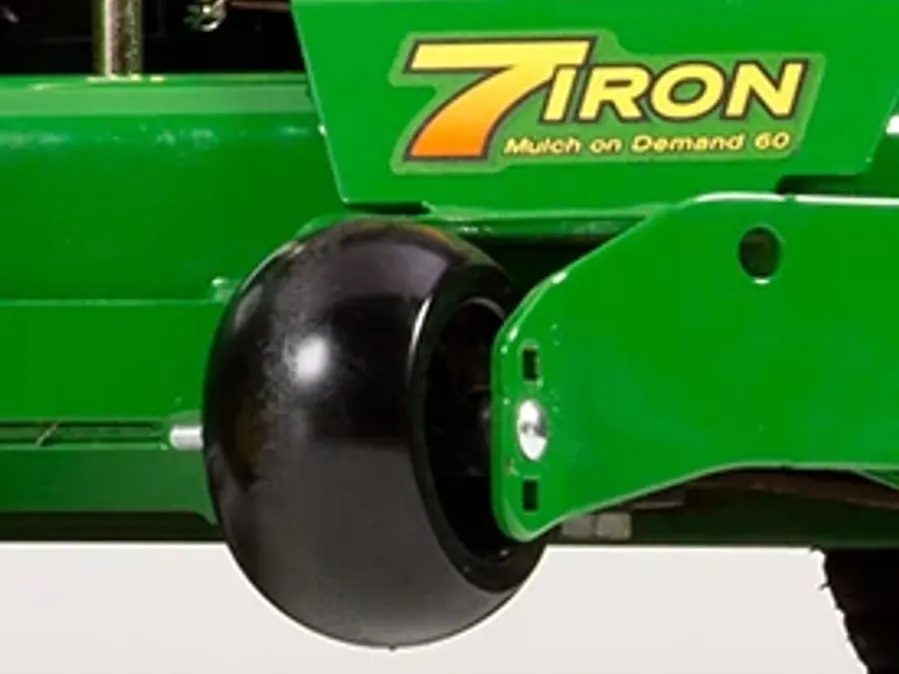

- Front Anti Scalp Rollers
- RH, center, LH
- Rear Anti Scalp Rollers
- Optional
Dimensions11 specifications
- Length
- 84 in. 213 cm
- Width With Chute Down (Imperial)
- 68, 74 in.
- Width With Chute Down (Metric)
- 173, 188 cm
- Width Rear Discharge (Imperial)
- 63.5 in.
- Width Rear Discharge (Metric)
- 161.3 cm
- Height With ROPS Up (Imperial)
- 73.0 in.
- Height With ROPS Up (Metric)
- 185.0 cm
- Height With ROPS Down (Imperial)
- 47.0 in.
- Height With ROPS Down (Metric)
- 119.0 cm
- Weight (Imperial)
- 1299 - 1369 lb.
- Weight (Metric)
- 589 - 621 kg
Operation2 specifications
- Slope Operating Limit
- 20.0 degree (angle)
- Slope Operating Limit With Material Collection System
- 10.0 degree (angle)
Additional Information1 specifications
- Date Collected
- 2026-08-03T00:00:00
