John Deere

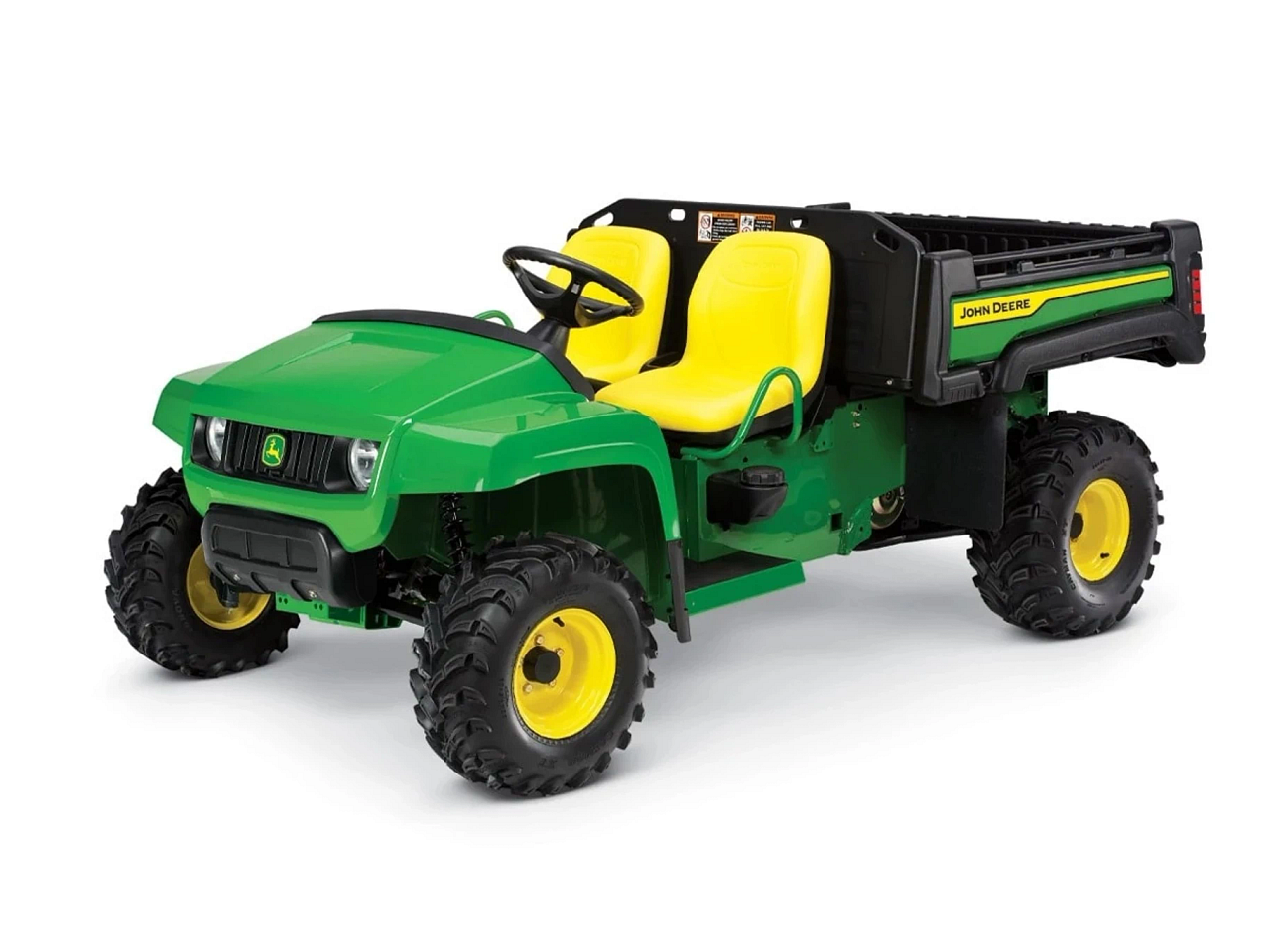

ModelTX 4x2 Traditional Utility Vehicle
Work Utility Vehicles
Discover power and reliability with the 2025 GATOR™ TX. Engineered for rugged terrains, this utility vehicle offers superior hauling and towing capabilities. With enhanced comfort features and robust performance, the GATOR™ TX is designed to meet all your work and recreational needs.
Model / part number: 56AAM
Key specifications
- Engine Power (Metric)
- 11.6 kW
- Final Drive
- Fully enclosed; oil bath
- Four Wheel Drive
- No
- Front Suspension
- Independent spring-over-shock, single A-arm
Technical specifications
68 specifications
Key Specs14 details
- Engine Power (Metric)
- 11.6 kW
- Engine Power (Imperial)
- 15.5 hp
- Final Drive
- Fully enclosed; oil bath
- Four Wheel Drive
- No
- Front Suspension
- Independent spring-over-shock, single A-arm
- Rear Suspension
- Semi-independent coil over shock (COS) system
- Fuel Capacity (Metric)
- 18.9 L
- Fuel Capacity (Imperial)
- 5.0 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 272.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 600.0 lb.
- Towing Capacity (Metric)
- 454.0 kg
- Towing Capacity (Imperial)
- 1000.0 lb.
Engine6 details
- Engine Type
- Four-cycle gas
- Displacement (Imperial)
- 41.2 cu in.
- Displacement (Metric)
- 675.0 cc
- Engine Power (Metric)
- 11.6 kW
- Engine Power (Imperial)
- 15.5 hp
- Cooling System
- Air
Drivetrain5 details
- Transmission
- Continuously Variable Transmission (CVT)
- Final Drive
- Fully enclosed; oil bath
- Four Wheel Drive
- No
- Traction Assist
- Mechanically activated differential lock
- Descent Control
- No
Suspension2 details
- Front Suspension
- Independent spring-over-shock, single A-arm
- Rear Suspension
- Semi-independent coil over shock (COS) system
Brakes2 details
- Type
- All-wheel hydraulic disc
- Park Brake
- Rear mechanical disk, hand operated
Tires/Wheels2 details
- Front
- Two 22x9.5-10 4PR all-terrain on steel wheels Two 22x9.5-10 4PR turf on steel wheels
- Rear
- Two 24x10.5-10 4PR all-terrain on steel wheels Two 24x12-10 4PR turf on steel wheels
Dimensions/Capacities27 details
- Wheelbase (Metric)
- 1955.8 mm
- Wheelbase (Imperial)
- 77.0 in.
- Weight (Metric)
- 501.0 kg
- Weight (Imperial)
- 1105.0 lb.
- Length (Metric)
- 2745.7 mm
- Length (Imperial)
- 108.1 in.
- Width (Metric)
- 1525.0 mm
- Width (Imperial)
- 60.0 in.
- Height (Metric)
- 1108.0 mm
- Height (Imperial)
- 43.6 in.
- Tread Centers Front (Metric)
- 1270.0 mm
- Tread Centers Front (Imperial)
- 50.0 in.
- Tread Centers Rear (Metric)
- 1220.0 mm
- Tread Centers Rear (Imperial)
- 48.0 in.
- Ground Clearance (Metric)
- 145.0 mm
- Ground Clearance (Imperial)
- 5.7 in.
- Fuel Capacity (Metric)
- 18.9 L
- Fuel Capacity (Imperial)
- 5.0 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 272.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 600.0 lb.
- Payload Capacity (Metric)
- 454.0 kg
- Payload Capacity (Imperial)
- 1000.0 lb.
- Towing Capacity (Metric)
- 454.0 kg
- Towing Capacity (Imperial)
- 1000.0 lb.
- Hitch
- Standard: receiver hitch, 5.1 cm 2 in.
Features9 details
- Color
- Green/yellow
- Power Steering
- No
- Battery (Metric)
- 340.0 CCA
- Battery (Other)
- 12.0 V
- Alternator
- 16.6 amp
- Power Port DC Outlet
- 12.0 V
- Instrumentation
- Fuel gauge, hour meter
- Storage
- Cup holders, glove box
- Seating
- Bucket seats
Additional Information1 detail
- Country Of Manufacture
- U.S.
