John Deere

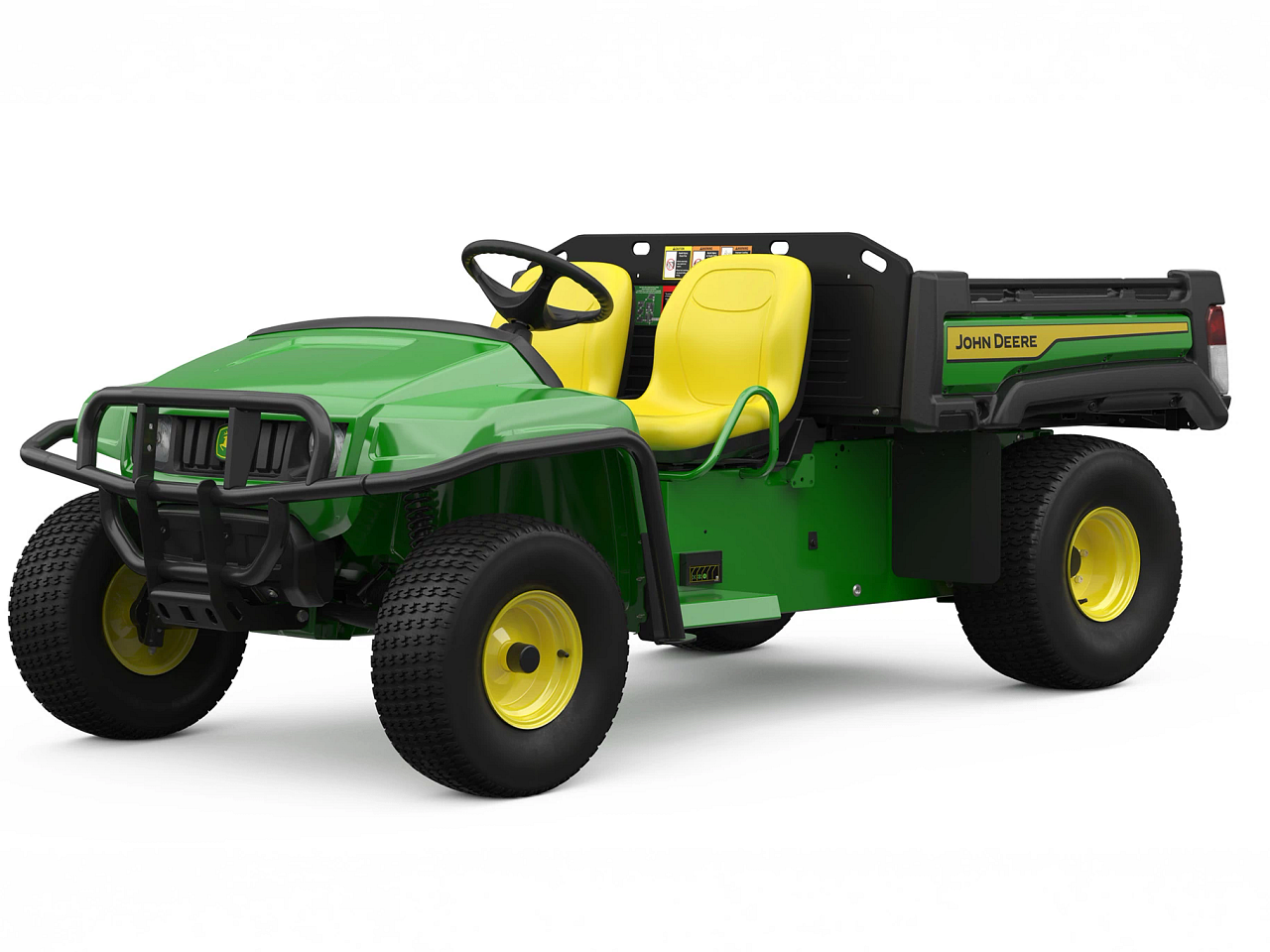

ModelTE 4x2 Electric Utility Vehicle
Work Utility Vehicles
Explore the John Deere TE 4x2 Electric Utility Vehicle, featuring electric operation, onboard charging, and cargo capability for turf and property maintenance applications.
Model / part number: 55D3M
Key specifications
- Electrical System
- 48 volt w/8 Trojan T-145 batteries
- Speed (Metric)
- 20.92 km/h
- Brake Type
- Dual rear wheel mechanical drum
- Width (Metric)
- 1524.0 mm
Technical specifications
95 specifications
Key Specs15 details
- Electrical System
- 48 volt w/8 Trojan T-145 batteries
- Speed (Metric)
- 20.92 km/h
- Speed (Imperial)
- 13.0 mph
- Brake Type
- Dual rear wheel mechanical drum
- Width (Metric)
- 1524.0 mm
- Width (Imperial)
- 60.0 in.
- Payload Capacity (Metric)
- 408.0 kg
- Payload Capacity (Imperial)
- 900.0 lb.
- Towing Capacity (Metric)
- 272.0 kg
- Towing Capacity (Imperial)
- 600.0 lb.
- Cargo Box Capacity (Metric)
- 272.0 kg
- Cargo Box Capacity (Imperial)
- 600.0 lb.
- Cargo Box Volume (Metric)
- 464.0 L
- Cargo Box Volume (Imperial)
- 16.4 cu ft
- Charger Type
- High frequency switched-mode kW
Drive System12 details
- Motor
- Wound direct drive, 48VDC separately excited
- Controller
- Separately excited, 400 amp max., Anti-roll away braking and alarm. Antistall motor protection. Regenerative braking. Diagnostic indicator. Full torque, reduced speed reverse.
- Transaxle
- 16.99:1 ratio with helical gearing
- Electrical System
- 48 volt w/8 Trojan T-145 batteries
- Electrical System Power
- 12.0 kWh
- Electrical System Voltage
- 48.0 V
- Speed (Metric)
- 20.92 km/h
- Speed (Imperial)
- 13.0 mph
- Gear Selection
- Forward, Neutral, Reverse
- Torque Converter
- N/A
- Battery
- Trojan T-145
- Extended Run Time Battery
- Not Available
Brakes2 details
- Brake Type
- Dual rear wheel mechanical drum
- Park Brake
- Hand operated, multi-latch

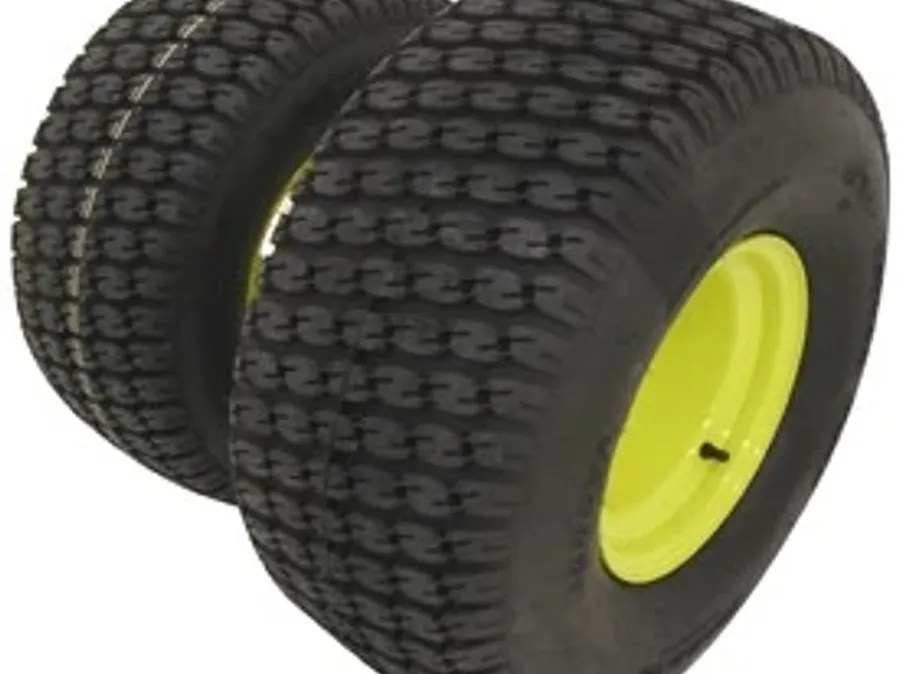

Tires2 details
- Front
- 2 - 22x9.5-10, 4-ply high-flotation turf
- Rear
- 2 - 24x12-10, 4-ply high-flotation turf
Suspension and Steering5 details
- Front Suspension
- Total Travel 5 in. 127 mm Independent, spring over shock, single A-arm
- Front Suspension Total Travel (Metric)
- 127.0 mm
- Front Suspension Total Travel (Imperial)
- 5.0 in.
- Rear Suspension
- Total travel Not Available 2 hi-flotation, low pressure tires
- Steering
- Rack and pinion
Dimensions26 details
- Height (Metric)
- 1130.0 mm
- Height (Imperial)
- 44.5 in.
- Width (Metric)
- 1524.0 mm
- Width (Imperial)
- 60.0 in.
- Length Without Bumper (Metric)
- 2664.0 mm
- Length Without Bumper (Imperial)
- 104.9 in.
- Length With Bumper (Metric)
- 2728.0 mm
- Length With Bumper (Imperial)
- 107.4 in.
- Ground Clearance Under Transaxle (Metric)
- 196.0 mm
- Ground Clearance Under Transaxle (Imperial)
- 7.7 in.
- Ground Clearance Under Foot Platform (Metric)
- 185.0 mm
- Ground Clearance Under Foot Platform (Imperial)
- 7.3 in.
- Front Tread Centers (Metric)
- 1270.0 mm
- Front Tread Centers (Imperial)
- 50.0 in.
- Rear Tread Centers (Metric)
- 1219.0 mm
- Rear Tread Centers (Imperial)
- 48.0 in.
- Wheelbase (Metric)
- 194.0 cm
- Wheelbase (Imperial)
- 76.4 in.
- Vehicle Weight (Metric)
- 630.0 kg
- Vehicle Weight (Imperial)
- 1389.0 lb.
- Turning Clearance Circle (Metric)
- 6.7 m
- Turning Clearance Circle (Imperial)
- 22.0 ft
- Payload Capacity (Metric)
- 408.0 kg
- Payload Capacity (Imperial)
- 900.0 lb.
- Towing Capacity (Metric)
- 272.0 kg
- Towing Capacity (Imperial)
- 600.0 lb.

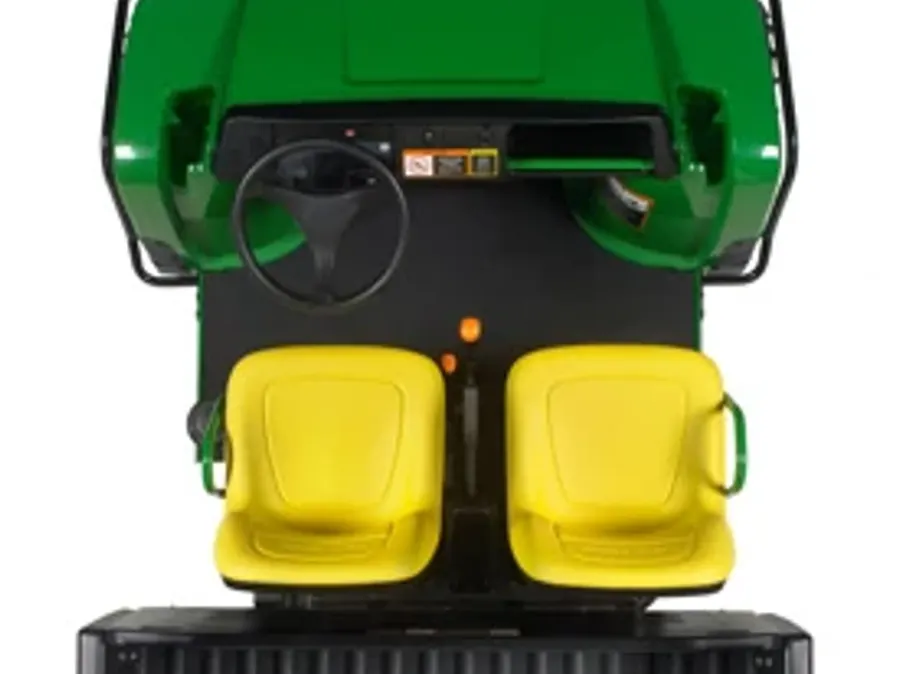

Seats3 details
- Type
- Professional high back bucket, tilt forward
- Seating Capacity
- 2
- Seat Adjustment
- Optional

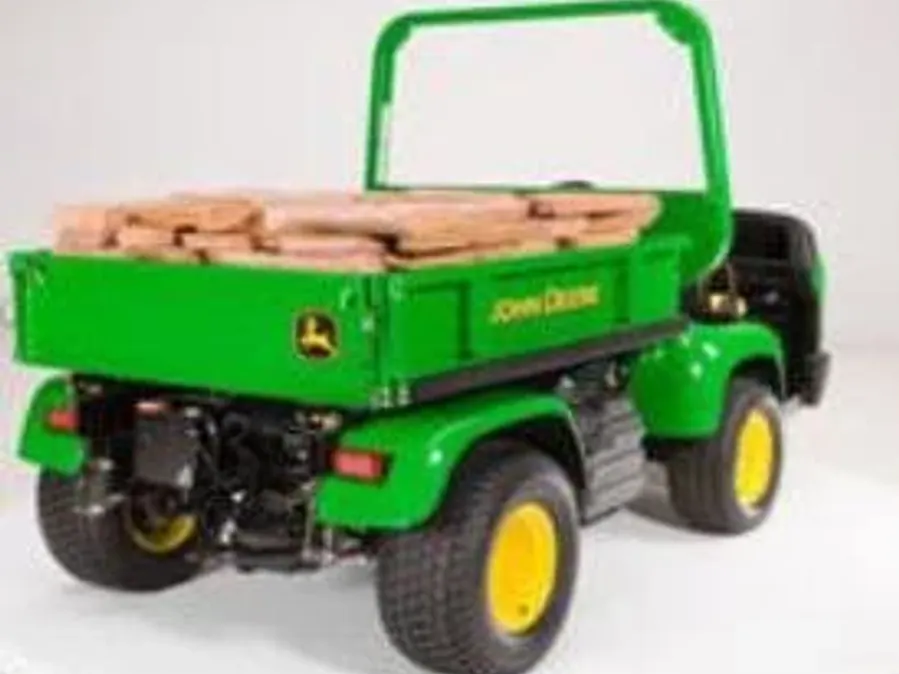

Cargo Box15 details
- Length (Metric)
- 1143.0 mm
- Length (Imperial)
- 45.0 in.
- Width (Metric)
- 1321.0 mm
- Width (Imperial)
- 52.0 in.
- Depth (Metric)
- 304.8 mm
- Depth (Imperial)
- 12.0 in.
- Cargo Box Capacity (Metric)
- 272.0 kg
- Cargo Box Capacity (Imperial)
- 600.0 lb.
- Cargo Box Volume (Metric)
- 464.0 L
- Cargo Box Volume (Imperial)
- 16.4 cu ft
- Height Above Ground (Metric)
- 762.0 mm
- Height Above Ground (Imperial)
- 30.0 in.
- Material
- Polypropylene side panels and tailgate; steel floor and load guard
- Tailgate
- Hinged at bottom, removable; side panels are removable
- Dump
- Manual, power lift (optional)
Ground Pressure2 details
- With 200 lb Operator Only (Metric)
- 0.6 bar
- With 200 lb Operator Only (Imperial)
- 8.6 psi
Frame1 detail
- Type
- Mig welded uni-body, high strength steel
Charger10 details
- Charger Type
- High frequency switched-mode kW
- Input Voltage (Other)
- 60.0 Hz
- Input Voltage (Metric)
- 120.0 V
- Input Amperage (Nominal)
- 12.0 amp
- Output Voltage
- 48 VDC nominal
- Output Amperage
- 21 ADC
- AC Input Connector
- IEC320/C14
- AC Power Cord (Metric)
- 2.4 m
- AC Power Cord (Imperial)
- 7.8 ft
- Breaker Maximum
- 15.0 amp
Machine1 detail
- Other Standard Features
- Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box
Fenders and Hood1 detail
- Type
- TPO - Rubber and Polypropylene
