John Deere

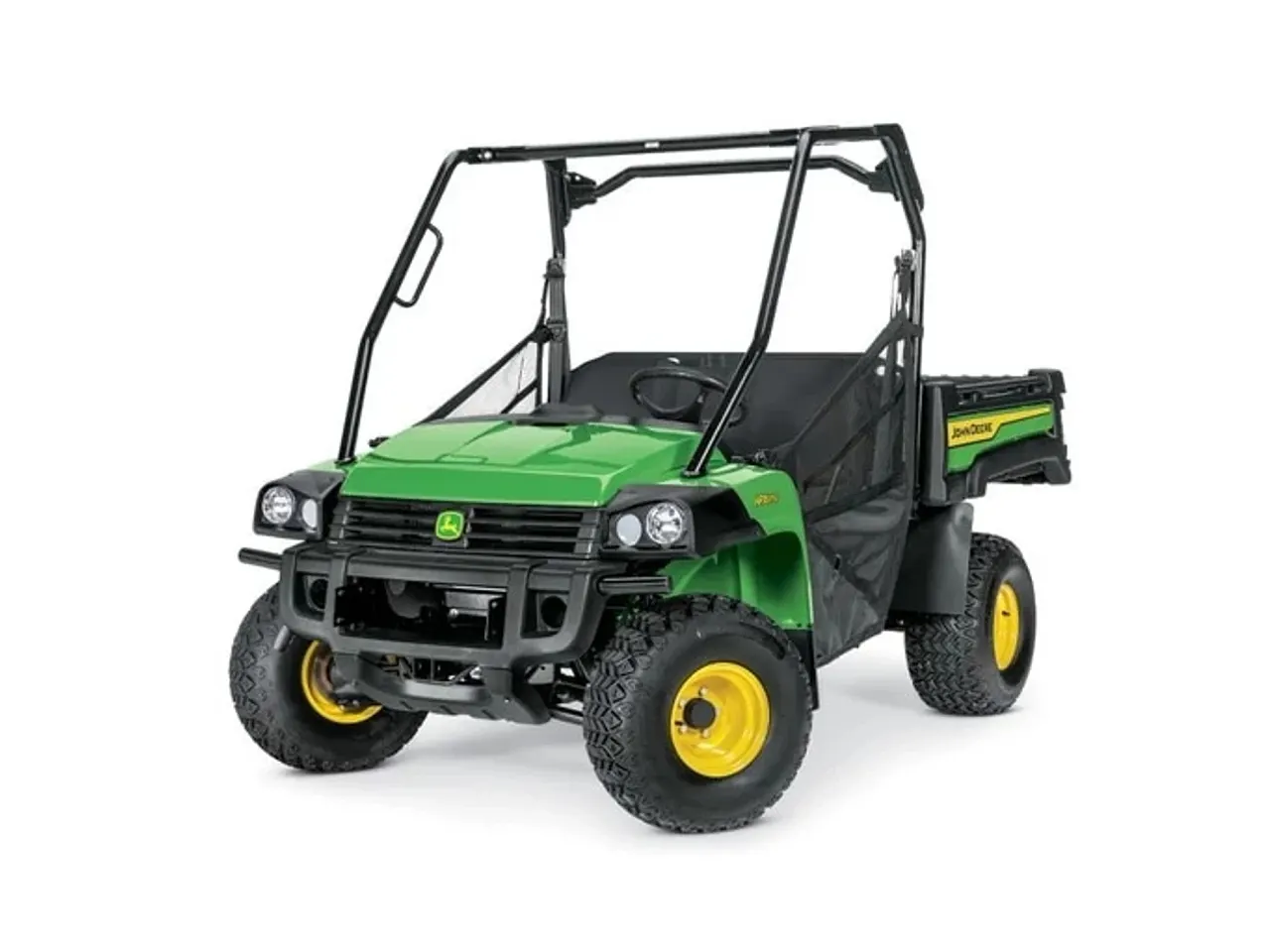

HPX815E Traditional Utility Vehicle
Work Utility Vehicles
Pack more work in a day with HPX815E Diesel Work Series Utility Vehicle, equipped with our Full Size Deluxe Cargo Box. Find the latest features, specifications, and pricing on the HPX815E Utility Vehicle.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 57HJM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Engine Power (Metric)
- 13.6 kW
- Engine Power (Imperial)
- 18.2 hp
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Front Suspension
- Independent with McPherson strut
- Rear Suspension
- Coil-over shock
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Towing Capacity (Metric)
- 590.0 kg
- Towing Capacity (Imperial)
- 1300.0 lb.
Engine6 specifications
- Engine Type
- 3-cylinder, 4-cycle diesel
- Displacement (Imperial)
- 52.1 cu in.
- Displacement (Metric)
- 854.0 cc
- Engine Power (Metric)
- 13.6 kW
- Engine Power (Imperial)
- 18.2 hp
- Cooling System
- Liquid
Drivetrain5 specifications
- Transmission
- Continuously Variable Transmission (CVT)
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Traction Assist
- Limited slip front differential, Positive locking, switch actuated rear differential lock
- Descent Control
- No
Suspension2 specifications
- Front Suspension
- Independent with McPherson strut
- Rear Suspension
- Coil-over shock
Brakes2 specifications
- Type
- Hydraulic disc brakes
- Park Brake
- Optional factory installed, hand operated
Tires/Wheels2 specifications
- Front
- 24 x 9.5-10
- Rear
- 24 x 12.0-10
Dimensions/Capacities27 specifications
- Wheelbase (Metric)
- 1910.0 mm
- Wheelbase (Imperial)
- 75.2 in.
- Weight (Metric)
- 728.0 kg
- Weight (Imperial)
- 1606.0 lb.
- Length (Metric)
- 3022.0 mm
- Length (Imperial)
- 119.0 in.
- Width (Metric)
- 1486.0 mm
- Width (Imperial)
- 58.5 in.
- Height (Metric)
- 1867.0 mm
- Height (Imperial)
- 73.5 in.
- Tread Centers Front (Metric)
- 1257.0 mm
- Tread Centers Front (Imperial)
- 49.5 in.
- Tread Centers Rear (Metric)
- 1219.0 mm
- Tread Centers Rear (Imperial)
- 48.0 in.
- Ground Clearance (Metric)
- 152.0 mm
- Ground Clearance (Imperial)
- 6.0 in.
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Payload Capacity (Metric)
- 635.0 kg
- Payload Capacity (Imperial)
- 1400.0 lb.
- Towing Capacity (Metric)
- 590.0 kg
- Towing Capacity (Imperial)
- 1300.0 lb.
- Hitch
- Standard receiver: 5.1 cm 2 in
Features8 specifications
- Color
- Green/yellow
- Power Steering
- No
- Battery (Metric)
- 480.0 CCA
- Battery (Other)
- 12.0 V
- Alternator
- 40.0 amp
- Power Port DC Outlet
- 12.0 V
- Storage
- Cup holders, glove box
- Seating
- Black vinyl bench
Additional Information2 specifications
- Country Of Manufacture
- U.S.
- Date Collected
- 2025-06-08T11:11:00
