John Deere

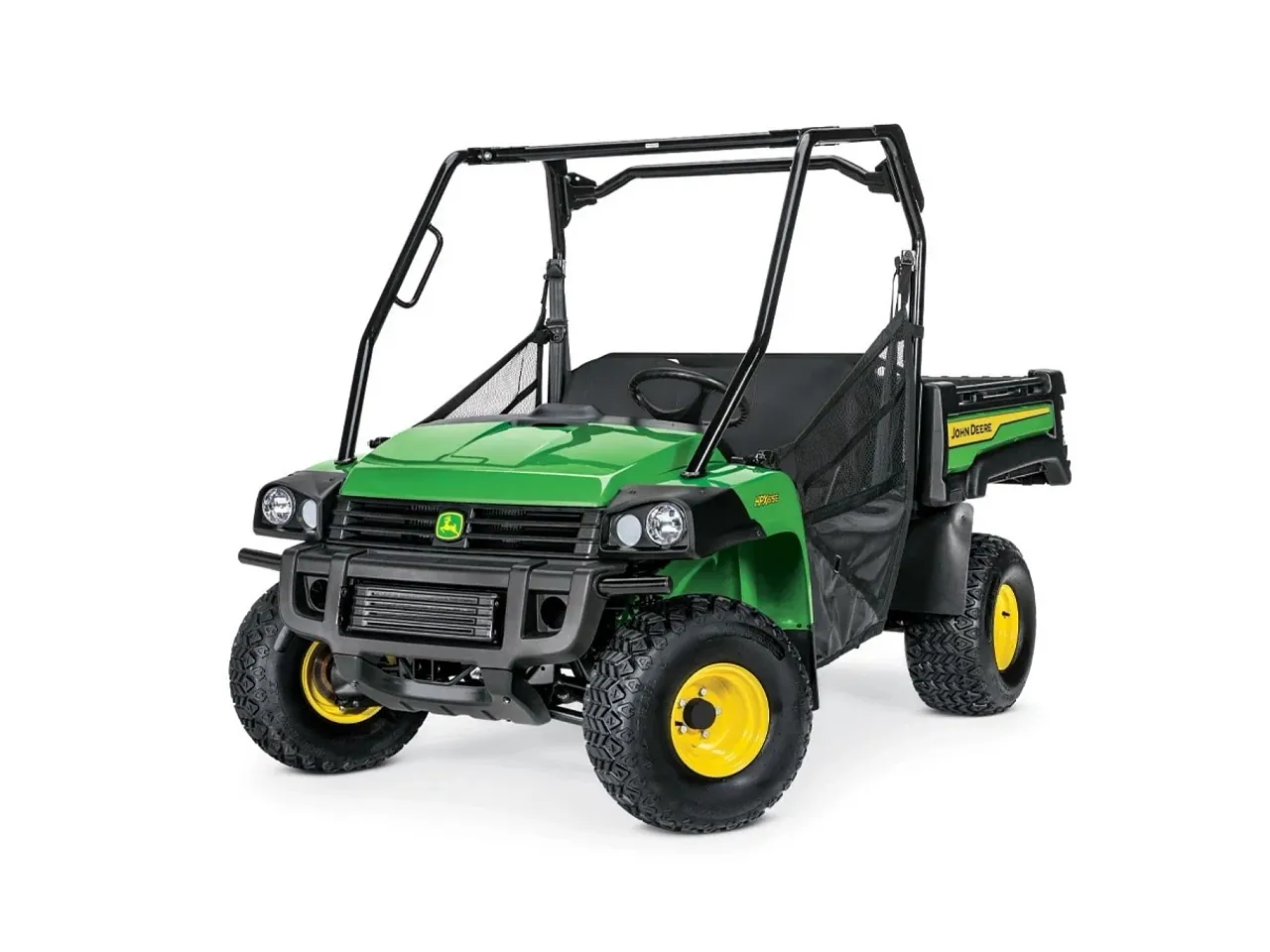

HPX615E Work Series Utility Vehicle
Work Utility Vehicles
Conquer any terrain with the John Deere GATOR™ HPX615E. Built for toughness and reliability, this utility vehicle features powerful performance and excellent cargo capacity. Perfect for heavy-duty tasks and outdoor adventures, the HPX615E blends efficiency with unparalleled durability.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 57GAM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Engine Power (Metric)
- 15.7 kW
- Engine Power (Imperial)
- 20.0 hp
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Front Suspension
- Independent with McPherson strut
- Rear Suspension
- Coil-over shock
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Towing Capacity (Metric)
- 590.0 kg
- Towing Capacity (Imperial)
- 1300.0 lb.
Engine6 specifications
- Engine Type
- 2-cylinder, 4-cycle gas
- Displacement (Imperial)
- 37.6 cu in.
- Displacement (Metric)
- 617.0 cc
- Engine Power (Metric)
- 15.7 kW
- Engine Power (Imperial)
- 20.0 hp
- Cooling System
- Liquid
Drivetrain5 specifications
- Transmission
- Continuously Variable Transmission (CVT)
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Traction Assist
- Limited slip front differential, Positive locking, switch actuated rear differential lock
- Descent Control
- No
Suspension2 specifications
- Front Suspension
- Independent with McPherson strut
- Rear Suspension
- Coil-over shock
Brakes2 specifications
- Type
- Hydraulic disc brakes
- Park Brake
- Optional factory installed, hand operated
Tires/Wheels2 specifications
- Front
- 24 x 9.5-10
- Rear
- 24 x 10.5-10
Dimensions/Capacities27 specifications
- Wheelbase (Metric)
- 1910.0 mm
- Wheelbase (Imperial)
- 75.2 in.
- Weight (Metric)
- 710.0 kg
- Weight (Imperial)
- 1566.0 lb.
- Length (Metric)
- 3022.0 mm
- Length (Imperial)
- 119.0 in.
- Width (Metric)
- 1486.0 mm
- Width (Imperial)
- 58.5 in.
- Height (Metric)
- 1867.0 mm
- Height (Imperial)
- 73.5 in.
- Tread Centers Front (Metric)
- 1257.0 mm
- Tread Centers Front (Imperial)
- 49.5 in.
- Tread Centers Rear (Metric)
- 1219.0 mm
- Tread Centers Rear (Imperial)
- 48.0 in.
- Ground Clearance (Metric)
- 152.0 mm
- Ground Clearance (Imperial)
- 6.0 in.
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Payload Capacity (Metric)
- 635.0 kg
- Payload Capacity (Imperial)
- 1400.0 lb.
- Towing Capacity (Metric)
- 590.0 kg
- Towing Capacity (Imperial)
- 1300.0 lb.
- Hitch
- Standard receiver: 5.1 cm 2 in.
Features8 specifications
- Color
- Green/yellow
- Power Steering
- No
- Battery (Metric)
- 480.0 CCA
- Battery (Other)
- 12.0 V
- Alternator
- 40.0 amp
- Power Port DC Outlet
- 12.0 V
- Storage
- Cup holders, glove box
- Seating
- Black vinyl bench
Additional Information2 specifications
- Country Of Manufacture
- U.S.
- Date Collected
- 2022-06-08T11:06:00
